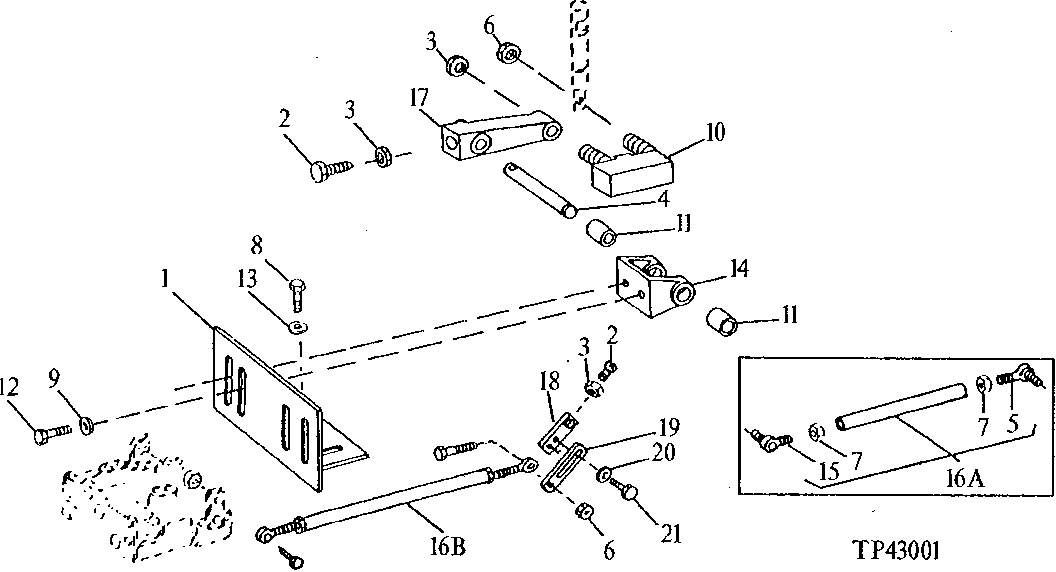

STEERING SHAFT LINKAGE (WITH CAB) (SERIAL NO. 731274- ) [01D05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T54218	1	BRACKET	-
2	M3413T	4	SET SCREW	(2-BELLCRANK ARM TO BELLCRANK SHAFT) (2-BELLCRANK END ADAPTER TO BELLCRANK SHAFT)
3	R11151	2	Lock Nut	(BELLCRANK ARM BALLJOINT)
3	14H611	4	Nut	(BELLCRANK ARM TO BELLCRANK SHAFT)
4	T54220	1	SHAFT	R.H.
5	-	1	Part 7	(SUB AT151186) (ALSO ORDER (2) 19H2477 AND (2) 12H303)
6	R11151	4	Lock Nut	(2-PEDAL SPRING SHAFT TO BELLCRANK BALLJOINT) (2-STEERING ROD BALLJOINT TO STRAP)
7	14H882	1	Nut	5/16"
7	14H1045	1	Nut	5/16"
8	19H3239	2	Cap Screw	3/8" X 1-1/4", (BELLCRANK SUPPORT BRACKET TO CAB)
9	R57696	4	Washer	(BELLCRANK SUPPORT BRACKET TO BELLCRANK SUPPORT)
10	AT49560	2	TIE ROD ASSEMBLY	(PEDAL SPRING SHAFT TO INSIDE BELLCRANK ARM)
11	JD9962	4	Needle Bearing	-
12	19H2676	4	Cap Screw	3/8" X 1", (BELLCRANK SUPPORT BRACKET TO BELLCRANK SUPPORT)
13	24H1311	2	Washer	13/32" X 1-1/4" X 0.220", (SUB FOR R57696 AND R43696, THIS APPLICATION) (BELLCRANK SUPPORT BRACKET TO CAB SCREWS)
14	T50953	2	SUPPORT	-
15	AT53798	1	BALL JOINT	-
17	T59895	2	ARM	(INSIDE)
18	T112310	2	ADAPTER FITTING	(OUTSIDE)
19	T112309	2	STRAP	(OUTSIDE)
20	24H1292	4	Washer	11/32" X 3/4" X 0.120", (STRAP TO BALLJOINT END ADAPTER SCREWS)
21	19H2705	4	Cap Screw	5/16" X 1", (STRAP TO BALLJOINT END ADAPTER)
16A	-	2	Part 19	(SUB AT151186) (ALSO ORDER (2) 19H2477 AND (2) 12H303)
16B	AT151186	2	TIE ROD ASSEMBLY	(SUB FOR AT53800 AND AT143034)
-	T54221	1	SHAFT	L.H.

STEERING SHAFT LINKAGE (WITH CAB) (SERIAL NO. 731274- ) [01D05]
