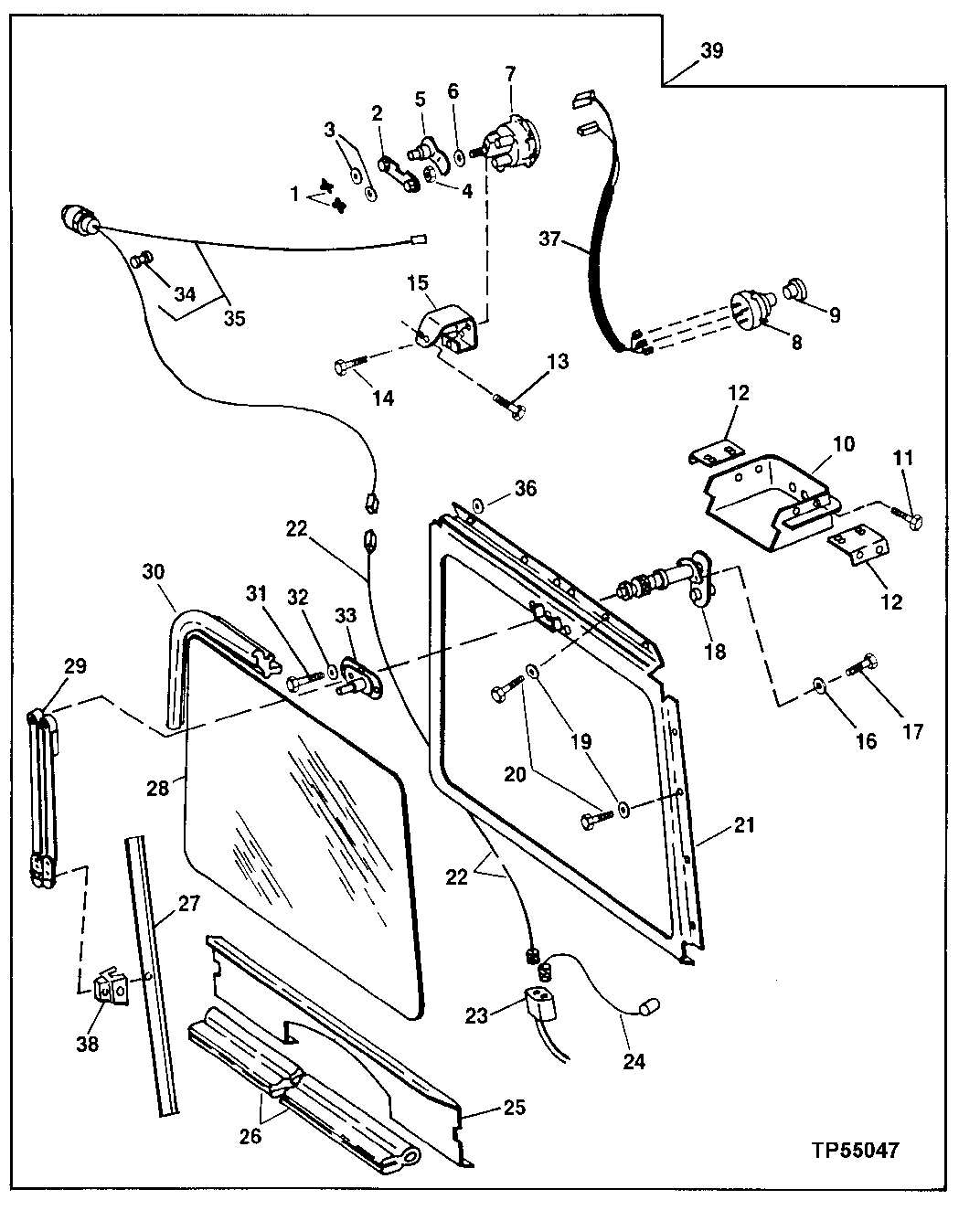

ROPS WINDSHIELD INSTALLATION [02H10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U46506	2	Clip	-
2	AU43853	1	Link	-
3	T32255	2	Shim	-
4	AU43857	1	LOCK NUT	-
5	AU43954	1	ARM	-
6	U46508	1	WASHER	-
7	-	1	Part 7	( AT115599 NLA) (FURNISH AT335086) (SUB FOR AT67132, THIS APPLICATION) (ALSO ORDER AT314060, 14M7426, U46508 AND (3) 19M8425) (WITHOUT WIRE)
8	AT38990	1	SWITCH	-
9	T62635	1	KNOB	(SUB FOR T44545)
10	T58643	1	COVER	-
11	37H57	4	Screw	5/16" X 3/4"
12	T58642	2	BRACKET	-
13	19H2676	2	Cap Screw	HS, SAE 8, 3/8" X 1" WITH LOCK WASHER
14	AU43854	3	SCREW WITH WASHER	-
15	-	1	Part 15	( AT56384 USE IF AVAILABLE)
16	12H295	2	Lock Washer	0.190"
17	21H1298	2	Screw	0.190" X 3/8"
18	AT58147	1	SHAFT	(SUB FOR AT29857)
19	24H1308	19	Washer	13/32" X 1" X 0.134"
20	19H2676	19	Cap Screw	HS, SAE 8, 3/8" X 1"
21	-	1	Part 21	( AT56379 USE IF AVAILABLE)
22	AT56385	1	WIRING LEAD	-
23	AM531T	1	ELECTRICAL CONNECTOR ASSY	-
24	AT35138	1	WIRING LEAD	-
25	-	1	Part 25	( T58644 USE IF AVAILABLE)
26	-	1	Part 26	(MAKE FROM T63949 BULK MATERIAL, CUT TO LENGTH)
27	TY16302	1	WIPER BLADE	(ALSO ORDER TY25006) (FOR FIRST TIME INSTALLATION)
28	-	1	Part 28	LEXAN (T58640 NO LONGER AVAILABLE)
29	AU42025	1	WIPER ARM	-
30	-	1	Part 30	(MAKE FROM T58339 BULK MATERIAL, CUT TO LENGTH)
31	19H1948	2	Cap Screw	1/4" X 3/4"
32	12H302	2	Lock Washer	1/4"
33	RE36215	1	Plate	ADAPTER, (SUB FOR AU42023)
34	AT28061	1	FUSE	5-AMPERE
35	AT14193	1	FUSE HOLDER	-
36	R27180	2	Grommet	-
37	AT167714	1	WIRING HARNESS	(SUB FOR AT66482, THIS APPLICATION)
38	TY25006	1	Bracket	(SUB FOR TY25006)
39	-	1	Part 39	AT56376 NO LONGER AVAILABLE

ROPS WINDSHIELD INSTALLATION [02H10]

Нет текстового описания
