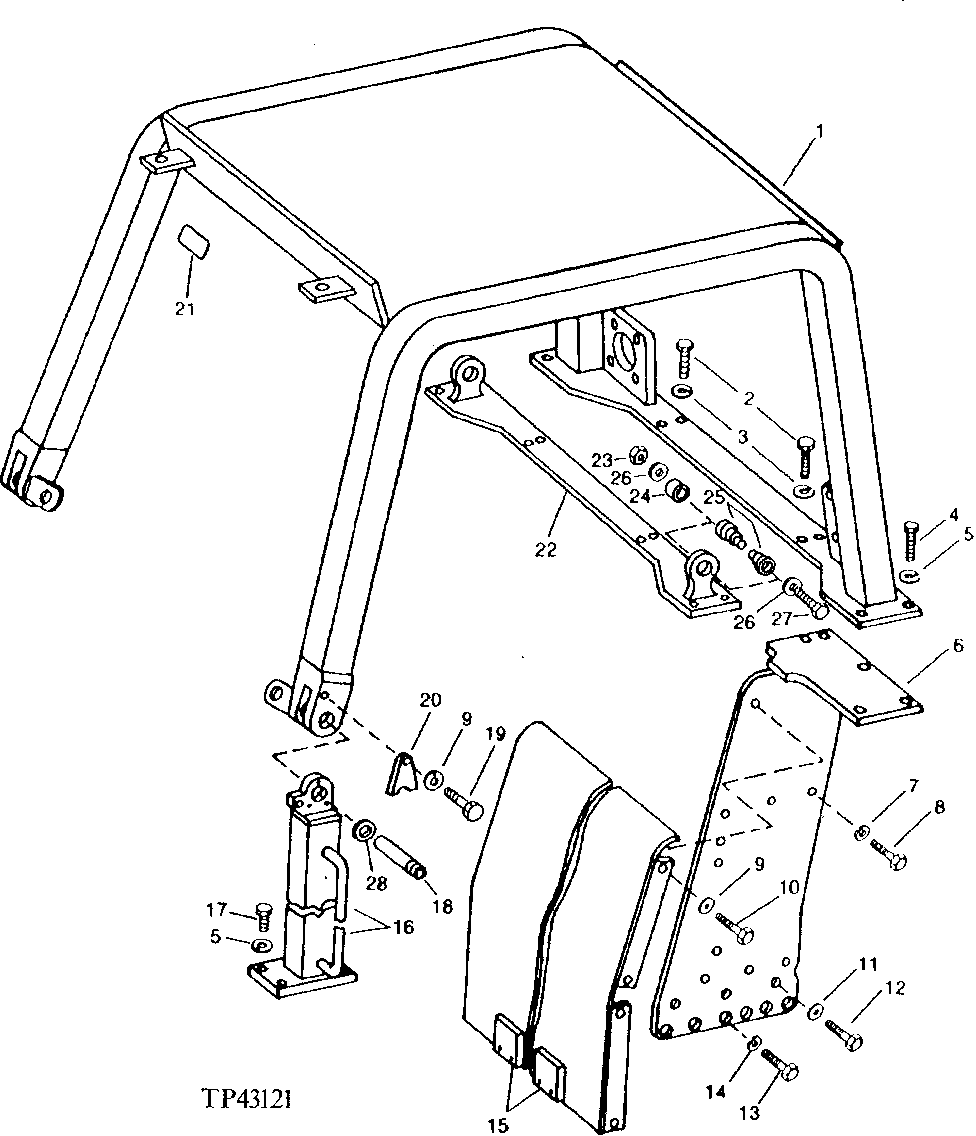

ROLL-OVER PROTECTIVE STRUCTURE AND REAR SUPPORTS [02H06]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT139661	1	ROPS	(INCLUDES T126948 AND T146097) (FOR USE WITHOUT CAB) (NOT ILLUSTRATED)
1	AT139670	1	ROPS	(INCLUDES T126947) (FOR USE WITH CAB)
2	19H2728	4	Cap Screw	3/4" X 3"
3	B3627R	4	WASHER	(ROPS SUPPORT TO FUEL TANK SCREWS)
4	19H2431	4	CAP SCREW	3/4" X 2-1/4", HS SAE 8 (ROPS SUPPORT TO FUEL TANK)
4	19H2369	6	Cap Screw	3/4" X 1", (ROPS SUPPORT TO REAR ROPS SUPPORT)
5	R78019	6	Washer	(SUB FOR T21397) (ROPS SUPPORT TO REAR ROPS SUPPORT SCREWS)
6	AT74628	1	SUPPORT	L.H. REAR
6	AT74627	1	SUPPORT	R.H. REAR (NOT ILLUSTRATED)
7	T10510	4	Washer	(FRONT SCREWS, 2 EACH SIDE) (USE IF AVAILABLE)
7	R78019	4	Washer	(SUB FOR T10510)
8	19H3158	6	Cap Screw	3/4" X 2"
8	08H4751	2	CAP SCREW	HS, SAE 8, 1" X 6-1/4", (FOR USE WITHOUT CAB)
9	24M7240	8	Washer	13 X 25 X 3 MM
10	19H2898	8	Cap Screw	1/2" X 1-1/4"
11	24M7240	6	Washer	13 X 25 X 3 MM, (SUB FOR T33177, THIS APPLICATION)
12	19H2735	6	Cap Screw	1/2" X 2"
13	19H3359	12	Cap Screw	7/8" X 2"
14	T34459	12	WASHER	-
15	AT142358	1	PLATE	(SUB FOR AT82931)
16	AT82074	1	PIVOT	L.H. LOWER
16	AT82073	1	PIVOT	R.H. LOWER (NOT ILLUSTRATED)
17	19H2431	8	CAP SCREW	3/4" X 2-1/4"
18	T50192	2	PIN FASTENER	-
19	19H2965	2	CAP SCREW	1/2" X 3-1/2"
20	T50193	2	RETAINER	-
21	T43705	1	SAFETY SIGN	-
22	AT82075	1	BASE	(FOR USE WITHOUT CAB)
23	K40018	2	Lock Nut	(FOR USE WITHOUT CAB)
24	T65150	2	BUSHING	(FOR USE WITHOUT CAB)
25	AT61762	2	ISOLATOR	(FOR USE WITHOUT CAB)
26	T75690	2	Washer	(FOR USE WITHOUT CAB)
27	19H3534	2	Cap Screw	1" X 7-1/2", HS, SAE 8, 1" X 7" (FOR USE WITHOUT CAB)
28	R46973	1	Thrust Washer	(SUB FOR T83335)
28	U41052	1	WASHER	THREE WAVE (NOT ILLUSTRATED)

ROLL-OVER PROTECTIVE STRUCTURE AND REAR SUPPORTS [02H06]
