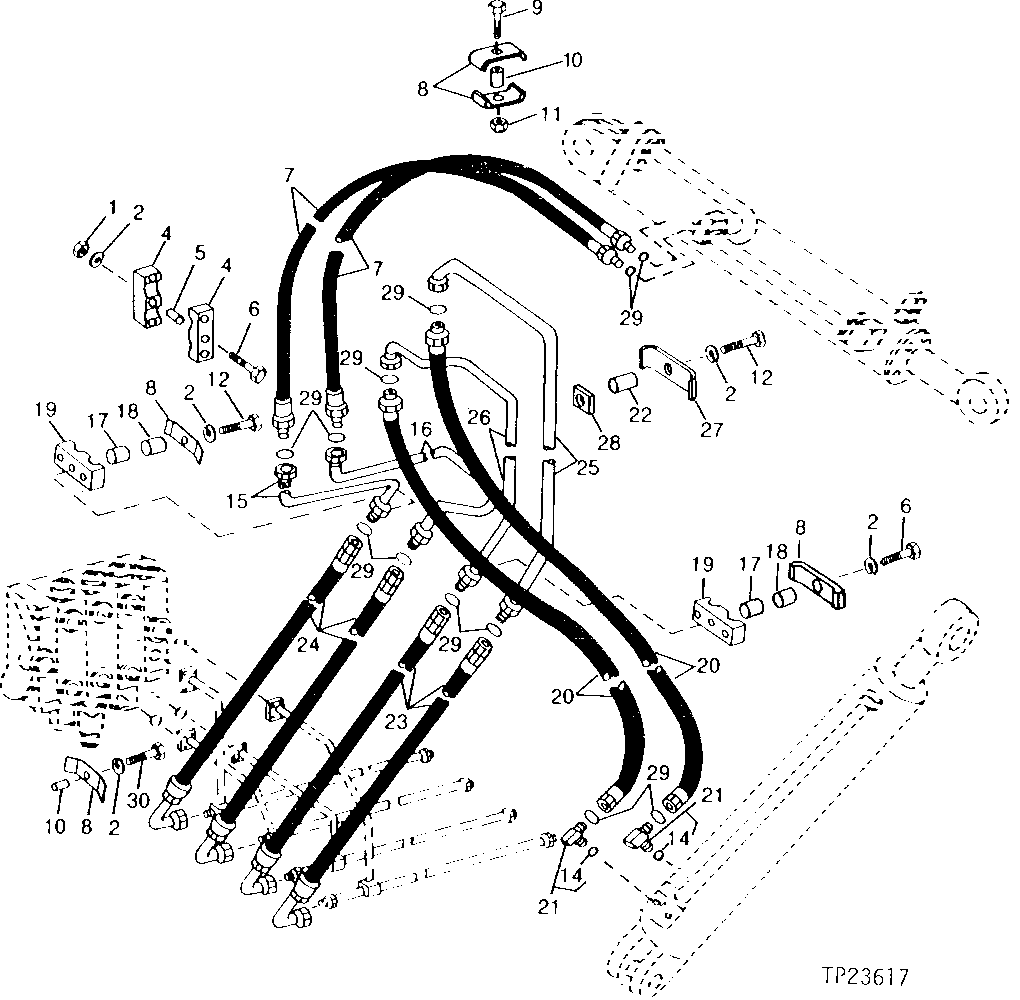

RIGHT-HAND LOADER HYDRAULICS [03D11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H812	2	NUT	3/8", (SUB FOR T29853, THIS APPLICATION)
2	24M7233	1	WASHER	10.700 X 21 X 2.500 MM
3	-	1	Part 3	(SUB FOR T48169) (SUB T120017)
4	T61335	2	CLAMP	-
5	T50392	1	BUSHING	(SUB FOR T48168, THIS APPLICATION) (2 - TO HOLD BUCKET CYLINDER EXTENSION TUBES ON RIGHT SIDE OF LOADER FRAME) (3 - TO RUBBER HALF CLAMPS ON RIGHT SIDE)
6	19H2815	2	Cap Screw	3/8" X 2-1/4", (TO TAPPED BARS ON RIGHT SIDE OF FRAME WHICH HOLDS BOOM AND BUCKET CYLINDER TUBES)
7	AT79822	2	HYDRAULIC HOSE - FABRICATE	1-3/16" X 940 MM (37") X 1-3/16"
8	T27020	6	CLAMP	-
9	19H3065	1	Cap Screw	3/8" X 2"
10	28H2552	2	SPACER	0.546" X 0.840" X 1-1/8"
11	T16464	1	Lock Nut	-
12	19H2732	1	Cap Screw	3/8" X 2-3/4"
13	U46219	1	Hose Clamp	-
14	R29936	2	O-Ring	-
15	AT79832	1	LINE	-
16	AT79829	1	OIL LINE	-
17	T50392	2	BUSHING	-
18	28H2497	2	Spacer	0.423" X 0.675" X 5/8"
19	T48167	3	CLAMP	(1 - BUCKET EXTENSION TUBES) (3 - TO TAPPED BARS)
20	AT79824	2	HYDRAULIC HOSE - FABRICATE	1-3/16" X 889 MM (35") X 1-3/16"
21	38H1052	2	Elbow Fitting	-
22	28H2547	1	Spacer	0.423" X 0.675" X 1"
23	AT79825	2	HYDRAULIC HOSE - FABRICATE	1-3/16" X 762 MM (30") X 1-3/16"
24	AT79841	2	HYDRAULIC HOSE - FABRICATE	1-3/16" X 803 MM (31-1/2") X 1-3/16"
25	AT79827	1	LINE	-
26	AT79828	1	LINE	-
27	T32707	1	CLAMP	(SUB FOR T29853, THIS APPLICATION)
28	T43358	1	Strap	(SUB FOR T65024)
29	T77858	12	O-Ring	-
30	19H3065	1	Cap Screw	3/8" X 2"

RIGHT-HAND LOADER HYDRAULICS [03D11]
