PLATFORM (WITHOUT CAB AND WITH OR WITHOUT ROLL-OVER PROTECTIVE STRUCTURE) [02H12]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T112099	1	MAT	CENTER, (WITH ROPS)
2	T106874	1	MAT	FRONT, (WITH ROPS)
3	34H266	1	Spring Pin	5/32" X 1"
4	T14057	1	SPRING	-
5	T31501	1	KNOB	-
6	-	1	Part 6	(MAKE FROM T58056 BULK MATERIAL, CUT TO LENGTH)
7	T76213	1	MAT	LEFT, (WITH ROPS)
8	AT42056	1	Lock	-
9	AT73547	1	STRIP	LEFT
9	AT112969	1	STRIP	(SUB FOR AT105073) LEFT
10	AT105069	1	DOOR	-
10	AT73544	1	DOOR	-
11	AT74390	1	PLATFORM	OUTER LEFT
12	19H2284	24	Cap Screw	3/8" X 7/8", (SUB FOR T53268, THIS APPLICATION)
12	24H1308	24	Washer	13/32" X 1" X 0.134", (SUB FOR T21242, THIS APPLICATION)
12	19H2676	18	Cap Screw	3/8" X 1", (PLATFORM TO PLATFORM SUPPORTS WITH ROPS)
13	T76212	1	MAT	RIGHT, (WITH ROPS)
14	AT84781	1	PLATE	FRONT OUTER, LEFT, (SUB FOR AT73914)
15	37H51	2	Screw	1/4" X 1/2"
16	14H1076	8	Nut	3/8"
17	24M7233	8	WASHER	10.700 X 21 X 2.500 MM
18	28H1878	8	SPACER	0.493" X 0.675" X 7/16"
19	T126073	1	COVER	(SUB FOR AT70724)
19	AT73546	1	STRIP	RIGHT
19	AT112970	1	STRIP	(SUB FOR AT105072) RIGHT
20	T56062	2	RETAINER	-
21	-	1	Part 27	(WITHOUT CAB) (MAKE FROM T63949 BULK MATERIAL, CUT TO LENGTH)
22	T76207	1	ISOLATOR	-
22	T106627	2	ISOLATOR	(NOT ILLUSTRATED)
23	AT84041	1	FOOTREST	(SUB FOR AT74387)
23	AT105104	1	FOOTREST	-
24	24H1392	2	Washer	25/32" X 1-3/8" X 0.120"
25	AT84782	1	PLATE	FRONT INNER, RIGHT, (SUB FOR AT73915)
26	T57258	2	GUSSET	(USE WITHOUT ROPS)
27	-	1	Part 35	(SUB T112099, T106874, T76212 AND T76213)
28	-	1	Part 36	(MAKE FROM AT56771 BULK MATERIAL, CUT TO LENGTH) (SUB FOR T49767) (LAYS ON TOP OF STRIP WELDED TO FENDER TO SEAL OPENING BETWEEN FENDERS AND PLATFORM)
29	AT74389	1	PLATFORM	-
30	AT73548	1	STRIP	-
31	T47585	1	CLAMP	-

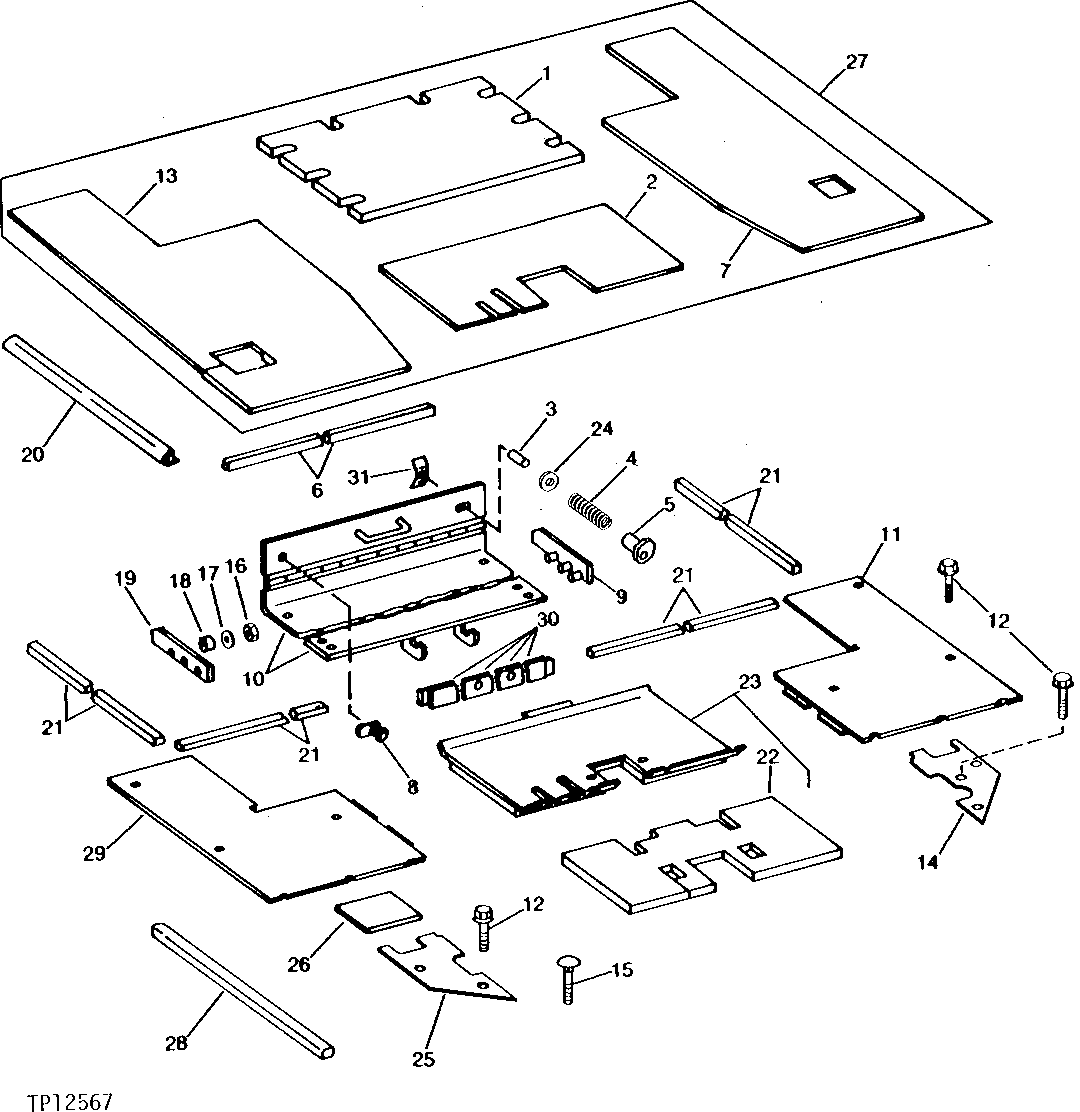

PLATFORM (WITHOUT CAB AND WITH OR WITHOUT ROLL-OVER PROTECTIVE STRUCTURE) [02H12]
