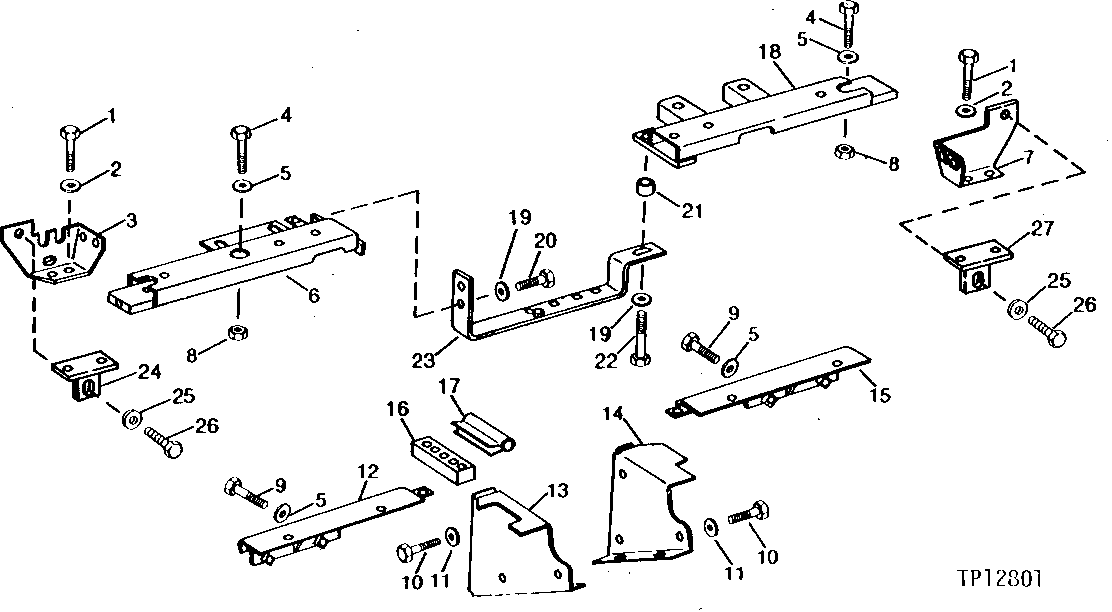

PLATFORM SUPPORTS (WITHOUT CAB) (WITHOUT ROLL-OVER PROTECTIVE STRUCTURE) [02H14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3385	4	Cap Screw	1/2" X 1-1/8"
2	T29342	4	Washer	-
3	AT82934	1	SUPPORT	R.H. CONSOLE
4	19H2735	4	Cap Screw	1/2" X 2"
5	24H1111	8	Washer	17/32" X 1-1/16" X 0.090"
6	AT72034	1	SUPPORT	R.H.
7	AT82935	1	SUPPORT	L.H. CONSOLE
8	14H1040	3	Nut	-
9	19H2993	4	Cap Screw	1/2" X 1-1/2"
10	19H1648	6	Cap Screw	3/8" X 3/4"
11	24H1308	6	Washer	13/32" X 1" X 0.134"
12	AT74391	1	SUPPORT	R.H. PLATFORM
13	AT84480	1	SUPPORT	R.H. TOEBOARD, (SUB FOR AT71217)
13	AT105086	1	SUPPORT	R.H. TOEBOARD
14	AT105087	1	SUPPORT	L.H. TOEBOARD
14	AT71216	1	SUPPORT	L.H. TOEBOARD
15	AT74392	1	SUPPORT	L.H. PLATFORM
16	T52511	1	GROMMET	-
17	-	1	Part 19	(MAKE FROM T63949 BULK MATERIAL, CUT TO LENGTH)
18	AT72035	1	SUPPORT	L.H.
19	24H1111	2	Washer	17/32" X 1-1/16" X 0.090"
20	19H3472	1	Cap Screw	5/8" X 9-3/4"
21	28H1577	1	Bushing	1/2" X 1"
22	19H1831	1	Cap Screw	1/2" X 2"
23	AT80972	1	SUPPORT	VALVE
24	AT120533	1	BRACKET	(SUB FOR AT82936)
25	T10510	2	Washer	(USE IF AVAILABLE)
25	R78019	2	Washer	(SUB FOR T10510)
26	19H2716	2	Cap Screw	3/4" X 1-1/2"
27	AT120533	1	BRACKET	(SUB FOR AT82937)

PLATFORM SUPPORTS (WITHOUT CAB) (WITHOUT ROLL-OVER PROTECTIVE STRUCTURE) [02H14]
