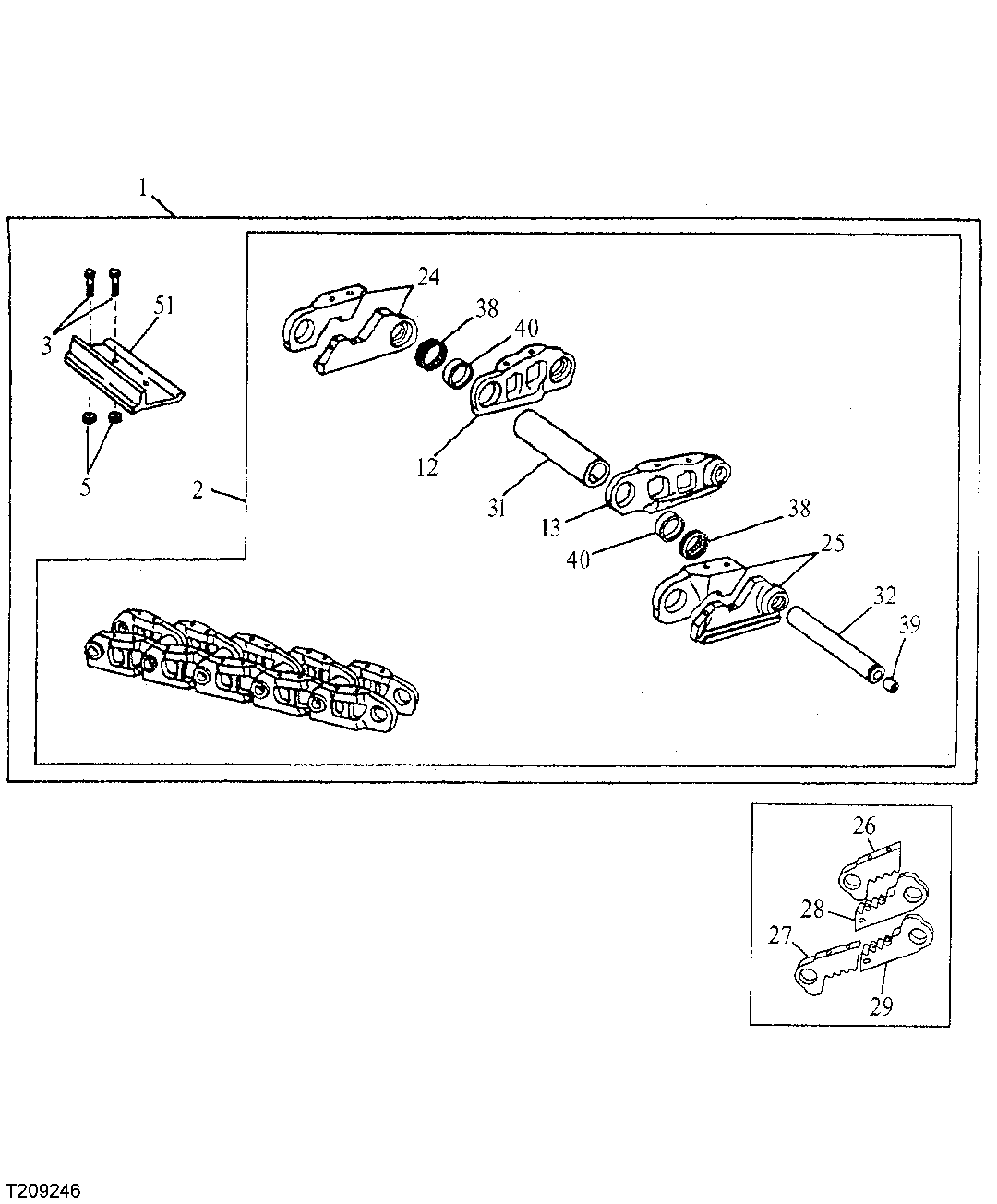

LUBRICATED CHAINS, 3/4, WITH STRUTTED LINKS - STD (36L) (SERIAL NO. -805690) [01B16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT158718	2	Lock Kit	430MM (17") (36L) (INCLUDES SPLIT MASTER LINKS) (SUB FOR AT83288 AND AT70782)
2	-	1	Part 2	(36L) ( AT70783 NO LONGER AVAILABLE) (SUB AT168480)
3	T51523	140	Bolt	-
3	T73593	4	MASTER TRACK BOLT	-
5	T51524	140	Nut	-
12	T67654	35	STRUTTED LINK-LH	-
13	T67653	35	STRUTTED LINK-RH	-
24	-	1	Part 8	( AT132895 NO LONGER AVAILABLE) (SUB AT167996)
25	-	1	Part 9	( AT132894 NO LONGER AVAILABLE) (SUB AT167994)
26	T73591	1	MASTER HALF LINK-LH-BSH END	(USE IF AVAILABLE) (SUB AT167996)(ALSO ORDER AT167994 FIRST TIME REPLACEMENT)
27	T73589	1	MASTER HALF LINK-RH-BSH END	(USE IF AVAILABLE) (SUB AT167994) (ALSO ORDER AT167996 FIRST REPLACEMENT)
28	T73590	1	MASTER HALF LINK-LH-PIN END	(USE IF AVAILABLE) (SUB AT167996) (ALSO ORDER AT167994 FIRST TIME REPLACEMENT)
29	T73588	1	MASTER HALF LINK-RH-PIN END	(USE IF AVAILABLE) (SUB AT167994) (ALSO ORDER AT167996 FIRST TIME REPLACEMENT)
31	T73581	36	BUSHING	-
32	T73583	36	Track Pin	-
38	AT112901	36	Seal	(CONTAINS 2 PCS) (SUB FOR AT70789)
39	T106913	36	PLUG	(SUB FOR T74064) (SUB FOR T73586, THIS APPLICATION)
40	T73587	72	Thrust Ring	-
51	T67608	35	DOUBLE BAR SHOE	430MM (17") (SUB FOR T127691)
51	T82079	35	DOUBLE BAR SHOE	526MM (21") (SUB FOR T127693)
51	T73592	1	MASTER DOUBLE BAR SHOE	430MM (17") (SUB FOR T127692)
51	T82080	1	MASTER DOUBLE BAR SHOE	526MM (21") (SUB FOR T127694)

LUBRICATED CHAINS, 3/4, WITH STRUTTED LINKS - STD (36L) (SERIAL NO. -805690) [01B16]
