FRONT AUXILIARY HYDRAULIC LINES (MULTI-PURPOSE BUCKETS) [03D19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U13184	1	Lock Nut	-
1	U13184	3	Lock Nut	(SUB FOR C744DN)
2	T38967	3	CLAMP	-
3	AH77869	3	Clip	-
4	12H304	3	Lock Washer	3/8"
5	38H1176	2	Adapter Fitting	-
6	R29936	2	O-Ring	-
7	19H2676	2	Cap Screw	HS, SAE 8, 3/8" X 1"
8	AT132818	2	HYDRAULIC HOSE - FABRICATE	13/16" X 2 769 MM (109") X 13/16", (SUB FOR AT79800)
9	28H2547	1	Spacer	0.423" X 0.675" X 1", (SUB FOR H87206, THIS APPLICATION) (ALSO ORDER 19H3065)
10	19H3404	1	Cap Screw	3/8" X 4", (USE WITH H87206)
10	19H3065	1	Cap Screw	3/8" X 2", (USE WITH 28H2547)
11	38H1418	2	Fitting	(SUB FOR 38H1142)
12	AT64386	1	BRACKET	-
13	AT79797	1	LINE	-
14	AT79798	1	TUBE	-
15	T77857	4	O-Ring	-
16	38H1356	2	Tube Nut	-
17	19H3124	8	Screw	3/8" X 1-1/2"
18	T60983	2	Flange Fitting	PORT FLANGE
19	U12037	2	O-Ring	(SUB FOR T72889) ( AT79810 NO LONGER AVAILABLE)
20	R29936	2	O-Ring	-
21	R36636	2	Drain Plug	(WITHOUT AUXILIARY EQUIPMENT)
22	T77858	2	O-Ring	-
23	-	1	Part 25	(ALSO INCLUDES T67567 LABEL) (HYDRAULICS FOR SELECTOR VALVE)
24	28H1577	1	Bushing	0.622" X 0.840" X 1"
25	T112078	1	STRAP	-
26	24H1311	2	Washer	13/32" X 1-1/4" X 0.220"

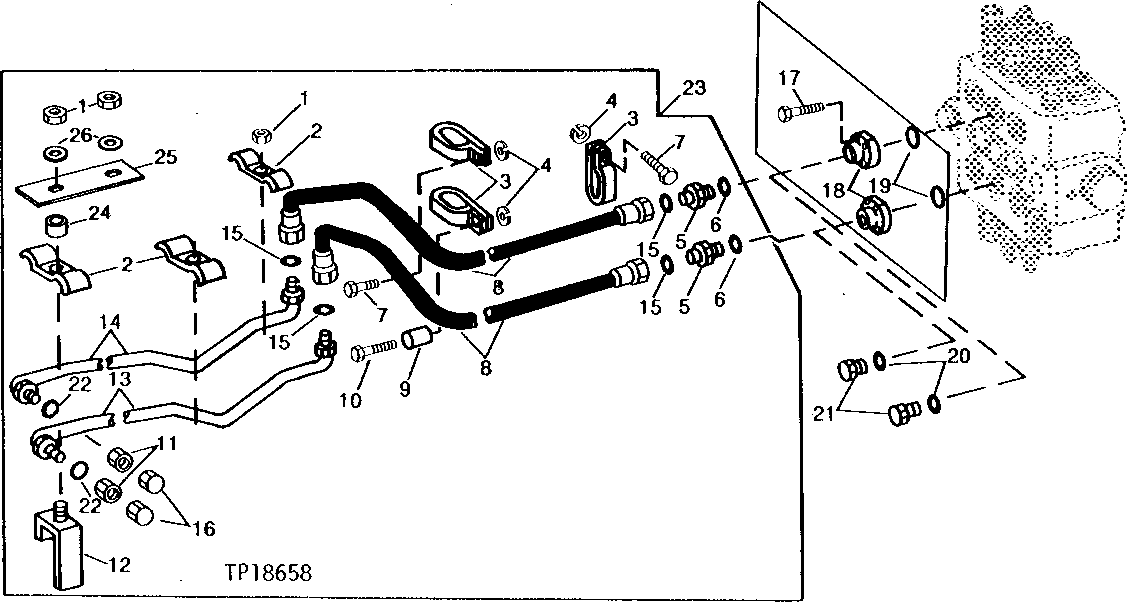

FRONT AUXILIARY HYDRAULIC LINES (MULTI-PURPOSE BUCKETS) [03D19]
