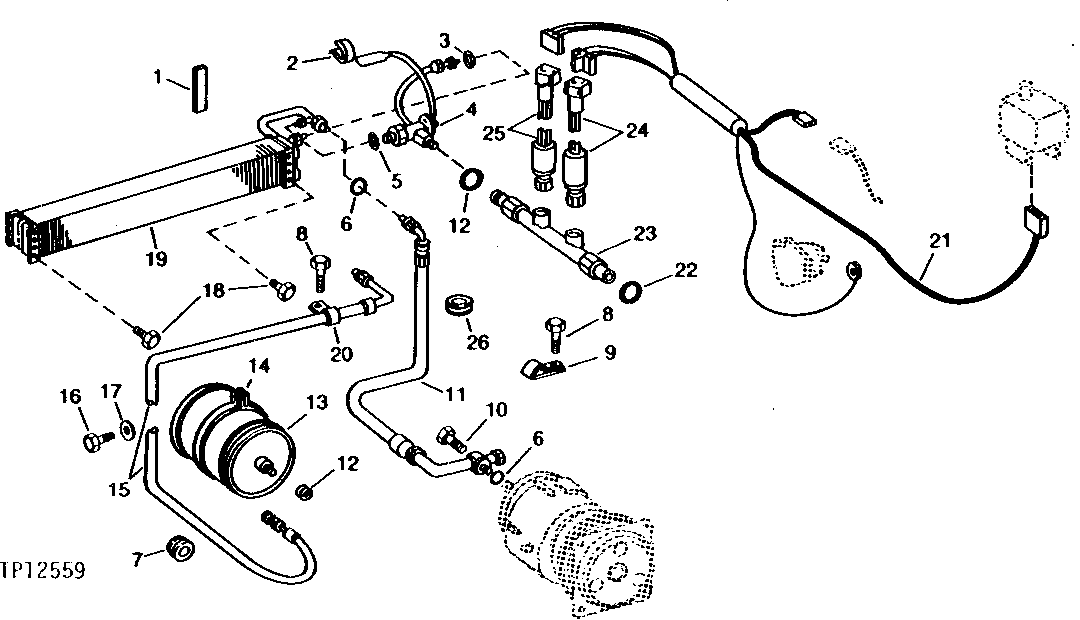

EVAPORATOR AND RECEIVER DEHYDRATOR WITH REFRIGERANT LINES (SERIAL NO. -791559) [02J18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(MAKE FROM AT56771 BULK MATERIAL, CUT TO LENGTH)
2	R66645	1	CLIP	-
3	R34812	1	O-Ring	-
4	AT62543	1	THERMOSTATIC CONTROL VALVE	-
5	P51212	1	O-Ring	-
6	R33259	2	O-Ring	-
7	U15091	2	Grommet	(SUB FOR H36221, THIS APPLICATION)
8	19H1648	4	Cap Screw	3/8" X 3/4"
9	AH77869	1	Clip	(SUB FOR H29684)
10	19H2959	1	Cap Screw	3/8" X 2"
11	AT59209	1	LINE	-
12	R10093	2	O-Ring	-
13	AR74486	1	RECEIVER	-
14	R53422	1	Clamp	-
15	AT59204	1	HYDRAULIC HOSE	-
16	19H3031	1	Cap Screw	3/8" X 2-1/2"
17	28H1495	1	Spacer	3/8" X 1"
18	37H49	6	Screw	NO. 10 X 1/2"
19	AT82061	1	EVAPORATOR	-
20	R46667	3	Clamp	(SUB FOR A4773R, THIS APPLICATION)
21	AT69126	1	WIRING HARNESS	-
21	AT113728	1	WIRING HARNESS	-
21	AT113727	1	WIRING LEAD	(WIRING FUSE TO AIR CONDITIONER RELAY LEAD)
22	R10093	1	O-Ring	-
23	AT69125	1	TUBE	-
24	AT63265	1	Switch	(HIGH PRESSURE)
25	AT63266	1	SWITCH	(LOW PRESSURE)
26	T51497	1	Grommet	-

EVAPORATOR AND RECEIVER DEHYDRATOR WITH REFRIGERANT LINES (SERIAL NO. -791559) [02J18]
