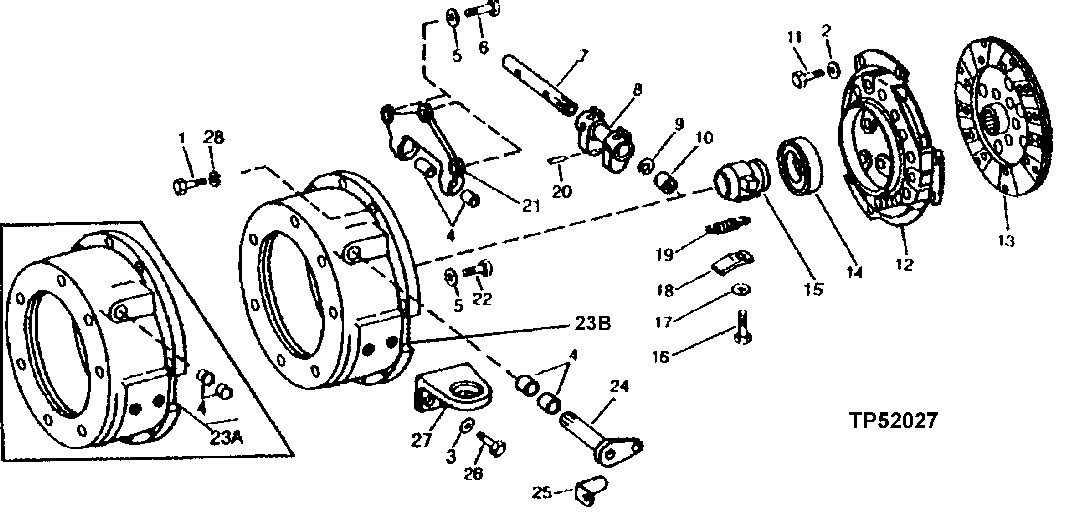

CLUTCH HOUSING (WITH TRANSMISSION DISCONNECT) [02C20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3239	9	Cap Screw	HS, SAE 8, 3/8" X 1-1/4"
2	12H304	6	Lock Washer	3/8"
3	R73290	4	Washer	(SUB FOR T497T, THIS APPLICATION)
4	T37674	4	BUSHING	-
5	12H301	7	Lock Washer	1/2"
6	19H1990	3	Cap Screw	1/2" X 2-1/4", HS SAE 8
7	T50882	1	SHAFT	-
8	T21999	1	FORK	-
9	R46205	1	Ring	-
10	T50881	1	SPLINED COUPLING	-
11	T20843	6	CAP SCREW	-
12	A-AT63303	1	CLUTCH PLATE	(SUB FOR AT63303)
13	AT141798	1	DISK	(SUB FOR AT53410 AND AT113417)
14	AR43065	1	THRUST BEARING	-
15	T48408	1	PLANET PINION CARRIER	-
16	19H1227	1	Cap Screw	1/4" X 1/2"
17	24H1287	1	Washer	9/32" X 5/8" X 0.065"
18	T55770	1	CLIP	-
19	T25530	1	Spring	-
20	34H353	2	SPRING PIN	3/8" X 1-3/4"
21	T50880	1	SUPPORT	(SUB FOR AT49470)
22	19H2735	4	Cap Screw	1/2" X 2"
24	AT49469	1	SHAFT	-
25	T50879	1	ANGLE	-
26	19H2710	4	Cap Screw	HS, SAE 8, 5/8" X 1-3/4"
27	T48407	2	SUPPORT	-
28	R57696	9	Washer	-
23A	AT47517	1	HOUSING	(MARKED T60466) (SUB T60466 AND (2) T37674)
23B	T60466	1	HOUSING	-

CLUTCH HOUSING (WITH TRANSMISSION DISCONNECT) [02C20]

Нет текстового описания
