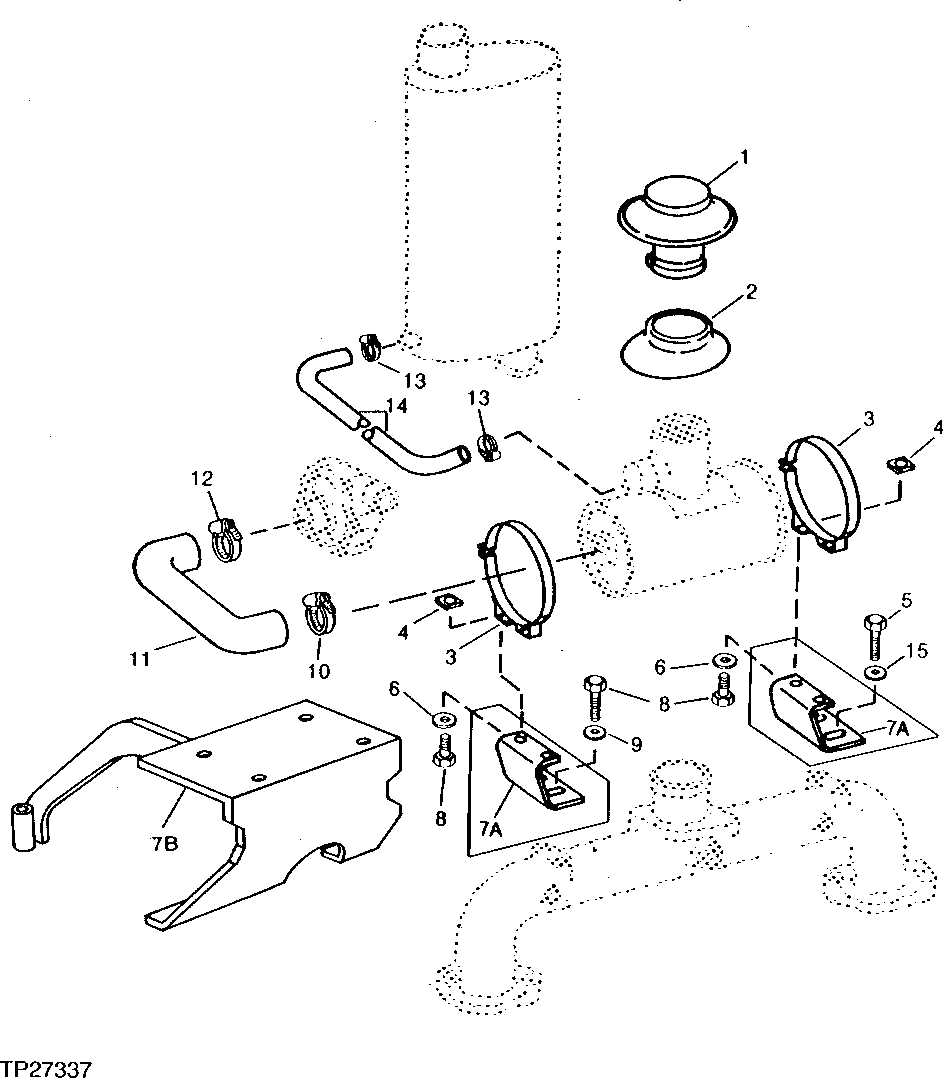

AIR CLEANER MOUNTING BRACKETS AND HOSES [02C06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT101171	1	Cap	(SUB FOR AT39416)
2	T58803	1	SEAL	-
3	AR35435	2	Clamp	-
4	14H732	4	Nut	3/8"
5	19H3239	2	Cap Screw	3/8" X 1-1/4"
5	19H2676	2	Cap Screw	3/8" X 1"
6	R42729	4	Washer	-
6	24M7233	4	WASHER	10.700 X 21 X 2.500 MM
8	19H2676	6	Cap Screw	3/8" X 1"
9	24M7047	1	Washer	13 X 24 X 2.500 MM, (AIR CLEANER SUPPORT BRACKET TO CYLINDER HEAD SCREWS)
9	24M7296	2	Washer	10.500 X 30 X 2.500 MM
9	24M7239	2	Washer	10.700 X 21 X 2.500 MM, (AIR CLEANER SUPPORT BRACKET TO CYLINDER HEAD SCREWS)
10	AT50924	1	Hose Clamp	-
11	AT105090	1	HOSE	(SUB FOR AT64562)
12	AT50923	1	Hose Clamp	-
13	AR21839	2	Clamp	-
14	T69434	1	HOSE	406 MM LONG (1-1/4" X 16")
15	R42729	2	Washer	-
15	R57696	2	Washer	-
7A	AT72172	2	BRACKET	-
7B	19H2676	2	Cap Screw	3/8" X 1", (AIR CLEANER SUPPORT BRACKET TO CYLINDER HEAD)
7B	19H2644	1	Cap Screw	1/2" X 2-1/2", (AIR CLEANER SUPPORT BRACKET TO CYLINDER HEAD)
7B	AT135726	1	BRACKET	-

AIR CLEANER MOUNTING BRACKETS AND HOSES [02C06]
