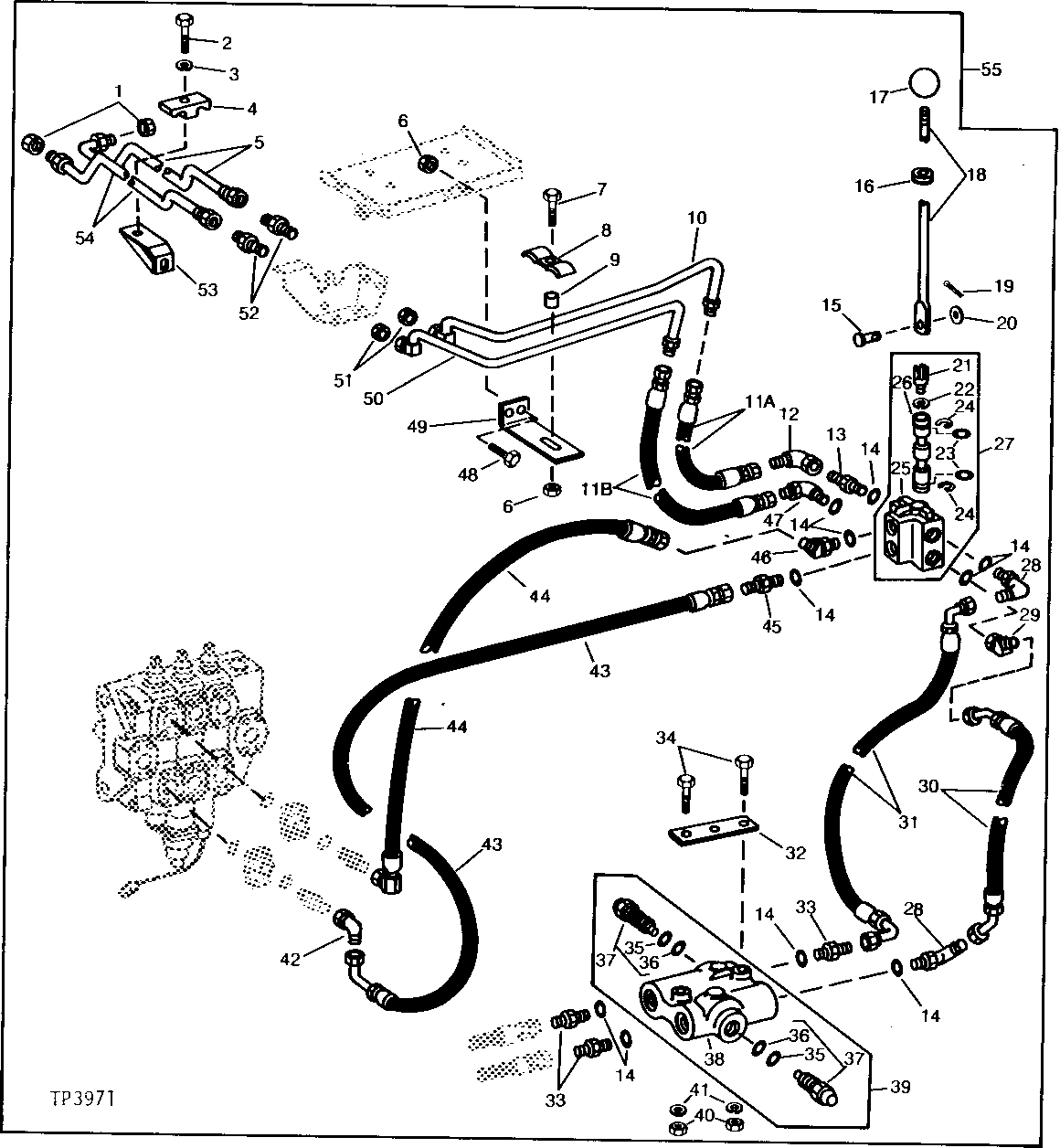

SELECTOR VALVE HYDRAULICS (SERIAL NO. -714980) [03F05]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T29439	2	Fitting	-
2	19H3065	1	Cap Screw	3/8" X 2"
3	12H304	1	Lock Washer	3/8"
4	T38967	1	CLAMP	-
5	AT48523	1	TUBE	-
6	T11234	3	Lock Nut	-
7	19H2633	1	Cap Screw	3/8" X 1-1/2"
8	U13055	1	CLAMP	-
9	28H1521	1	Spacer	3/8" X 9/16"
10	AT58575	1	LINE	-
12	AT28379	1	Fitting	90°
13	R27267	1	Fitting	-
14	U12547	10	O-Ring	(SUB FOR (10) F3171R)
15	H26275	1	PIN FASTENER	-
16	H24512	1	GROMMET	-
17	AP17808	1	Knob	-
18	T55062	1	ROD	-
19	11M7081	1	Cotter Pin	2.500 X 20 MM
20	24H1287	1	Washer	9/32" X 5/8" X 0.065"
21	T71766	1	YOKE	-
22	12H304	1	Lock Washer	3/8"
23	T104783	2	O-Ring	(SUB FOR U11296)
24	U11295	2	Snap Ring	-
25	-	1	Part 26	(SUB AT52416)
26	-	1	Part 27	(SUB AT52416)
27	AT52416	1	VALVE	(SUB AT73037)
28	AT32331	2	Elbow Fitting	90°
29	AT48506	1	Elbow Fitting	45°
30	AT62691	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 514 MM (20-1/4") X 1-3/16"
31	AT62690	1	HYDRAULIC HOSE - FABRICATE	1-1/16" X 403 MM (15-3/4") X 1-1/16"
32	T66236	1	STRAP	-
33	R27267	3	Fitting	-
34	19H1904	2	Cap Screw	5/16" X 3"
35	U17409	1	O-Ring	-
36	U17402	2	Washer	-
36	U15192	1	O-Ring	-
37	AT113009	2	PRESSURE RELIEF VALVE	-
38	-	1	Part 40	( T66235 USE IF AVAILABLE)
39	AT62689	1	CUSHION	-
40	14H785	2	Nut	5/16"
41	12H303	2	Lock Washer	5/16"
42	AT28379	1	Fitting	90°
43	AT62693	1	HYDRAULIC HOSE	1-1/16" X 600 MM (23-1/2") X 1-1/16"
44	AT68206	1	HYDRAULIC HOSE	1-1/16" X 600 MM (23-1/2") X 1-1/16"
45	R27267	1	Fitting	-
46	AT48506	1	Elbow Fitting	45°
47	AT32331	1	Elbow Fitting	90°
48	19H2676	2	Cap Screw	3/8" X 1"
49	T61014	1	ANGLE	-
50	AT58576	1	LINE	-
51	R27390	2	Nut	-
52	R47876	2	Fitting	-
53	AT48525	1	BRACKET	-
54	AT48524	1	TUBE	-
55	AT62692	1	VALVE	(SUB AT79801)
11A	AT58645	1	HYDRAULIC HOSE - FABRICATE	1-1/16" X 573 MM (22-1/2") X 1-1/16"
11B	AT42234	1	HYDRAULIC HOSE - FABRICATE	1-1/16" X 699 MM (27-1/2") X 1-1/16", (SUB FOR AT58645, THIS APPLICATION)
