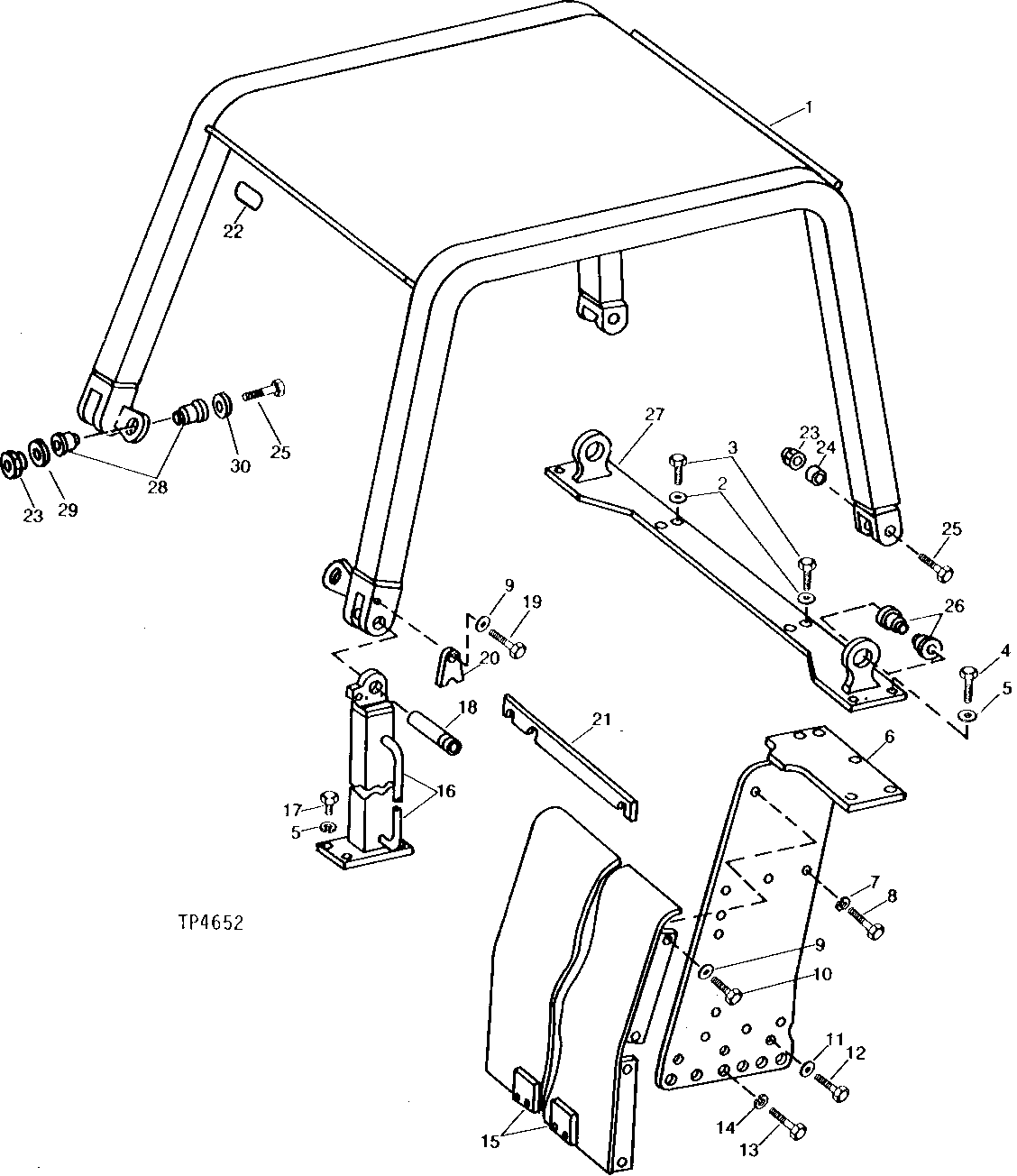

ROLLOVER PROTECTIVE STRUCTURE AND REAR SUPPORTS (WITHOUT CAB) [02G17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT139661	1	ROPS	(INCLUDES T126948 AND T146097) (SUB FOR AT69812)
2	19H2410	4	CAP SCREW	HS, SAE 8, 3/4" X 3"
3	B3627R	4	WASHER	-
4	19H3158	6	Cap Screw	HS, SAE 8, 3/4" X 2"
5	R78019	14	Washer	(SUB FOR T21397)
6	AT59545	1	BRACKET	L.H. REAR (SUB AT74628)
6	AT74628	1	SUPPORT	L.H. REAR
6	AT59544	1	BRACKET	R.H. REAR (NOT ILLUSTRATED) (SUB AT74627)
6	AT74627	1	SUPPORT	R.H. REAR (NOT ILLUSTRATED)
7	R78019	6	Washer	(SUB FOR T10510)
7	T10510	6	Washer	(USE IF AVAILABLE)
8	19H3158	6	Cap Screw	3/4" X 2"
9	T20168	12	Washer	-
10	19H2898	8	Cap Screw	HS, SAE 8, 1/2" X 1-1/4"
11	T21242	6	Washer	-
12	19H2735	6	Cap Screw	1/2" X 2"
13	19H3359	12	Cap Screw	HS, SAE 8, 7/8" X 2"
14	T33459	12	BEARING	-
15	AT142358	1	PLATE	REAR, (SUB FOR AT74676 AND AT82931)
15	AT58790	1	PLATE	-
16	AT82074	1	PIVOT	L.H. LOWER, (SUB FOR AT69811)
16	AT82073	1	PIVOT	R.H. LOWER (NOT ILLUSTRATED) (SUB FOR AT69810)
17	19H2431	8	CAP SCREW	HS, SAE 8, 3/4" X 2-1/4"
18	T50192	2	PIN FASTENER	-
19	19H1781	2	CAP SCREW	1/2" X 3-1/2"
20	T50193	2	RETAINER	-
21	T61247	1	SHIM	-
22	T43705	1	SAFETY SIGN	-
23	K40018	4	Lock Nut	(SUB FOR T66667)
24	T65150	2	BUSHING	-
25	19H3527	4	Cap Screw	1" X 7"
26	AT61762	4	ISOLATOR	-
27	AT82075	1	BASE	REAR MOUNTING, (SUB FOR AT69813)
28	AT48775	1	ISOLATOR	-
29	T112448	1	Washer	(SUB FOR T72653)
29	T112448	1	Washer	(SUB FOR T72654)
30	W22987	1	WASHER	(SUB FOR T50108 AND U14250, THIS APPLICATION)
30	W22987	2	WASHER	(QUILL TO ROPS-1 PER SIDE)
