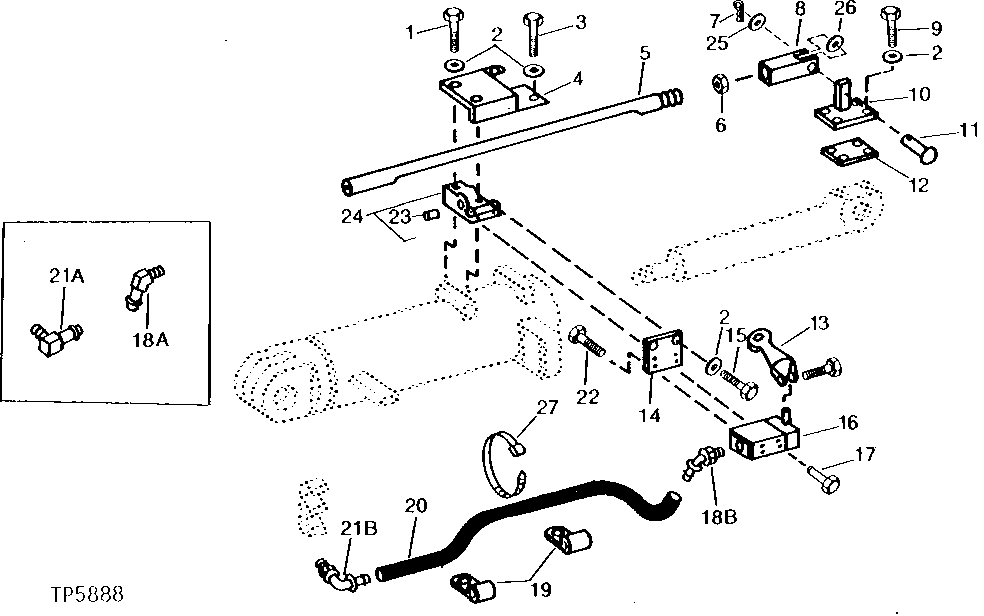

RETURN-TO-DIG POSITIONER WITH SWITCH [03C13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2732	2	Cap Screw	3/8" X 2-3/4"
2	12H304	10	Lock Washer	3/8"
3	19H1648	2	Cap Screw	3/8" X 3/4"
4	AT56545	1	COVER	-
5	T105558	1	SHAFT	(SUB FOR T58979)
6	14H1048	1	Nut	1"
7	11M7015	1	Cotter Pin	3.200 X 25 MM
8	T58853	1	YOKE	-
9	19H2676	4	Cap Screw	3/8" X 1"
10	AT56627	1	BRACKET	-
11	F2048R	1	PIN FASTENER	-
12	T58978	1	SHIM	0.76 MM (.030")
13	AT58220	1	ARM	-
14	T58855	1	PLATE	-
15	19H2284	2	Cap Screw	3/8" X 7/8"
16	AT58219	1	SWITCH	-
17	21H1301	2	SCREW	0.190" X 1/2"
19	T27550	2	Clip	-
19	T28603	2	Clip	-
20	-	1	Part 22	1 283 MM LONG (5/8" X 50-1/2") (MAKE FROM T60811)
20	-	1	Part 23	(MAKE FROM R57300 BULK MATERIAL, CUT TO LENGTH)
22	21H1356	2	Screw	0.190" X 1-1/4"
23	P47385	1	BUSHING	-
24	AT58559	1	BRACKET	-
25	24H1341	1	Washer	17/32" X 15/16" X 0.060"
26	24H1343	1	SHIM	17/32" X 1-1/2" X .018"
27	R76477	1	Tie Band	(SUB FOR T44946 AND A49232) (SUB FOR H77698, THIS APPLICATION)
18A	T27077	1	Hose Fitting	-
18B	T73769	1	HOSE FITTING	-
21A	H62994	1	Hose Fitting	-
21B	T45035	1	HOSE FITTING	-

RETURN-TO-DIG POSITIONER WITH SWITCH [03C13]
