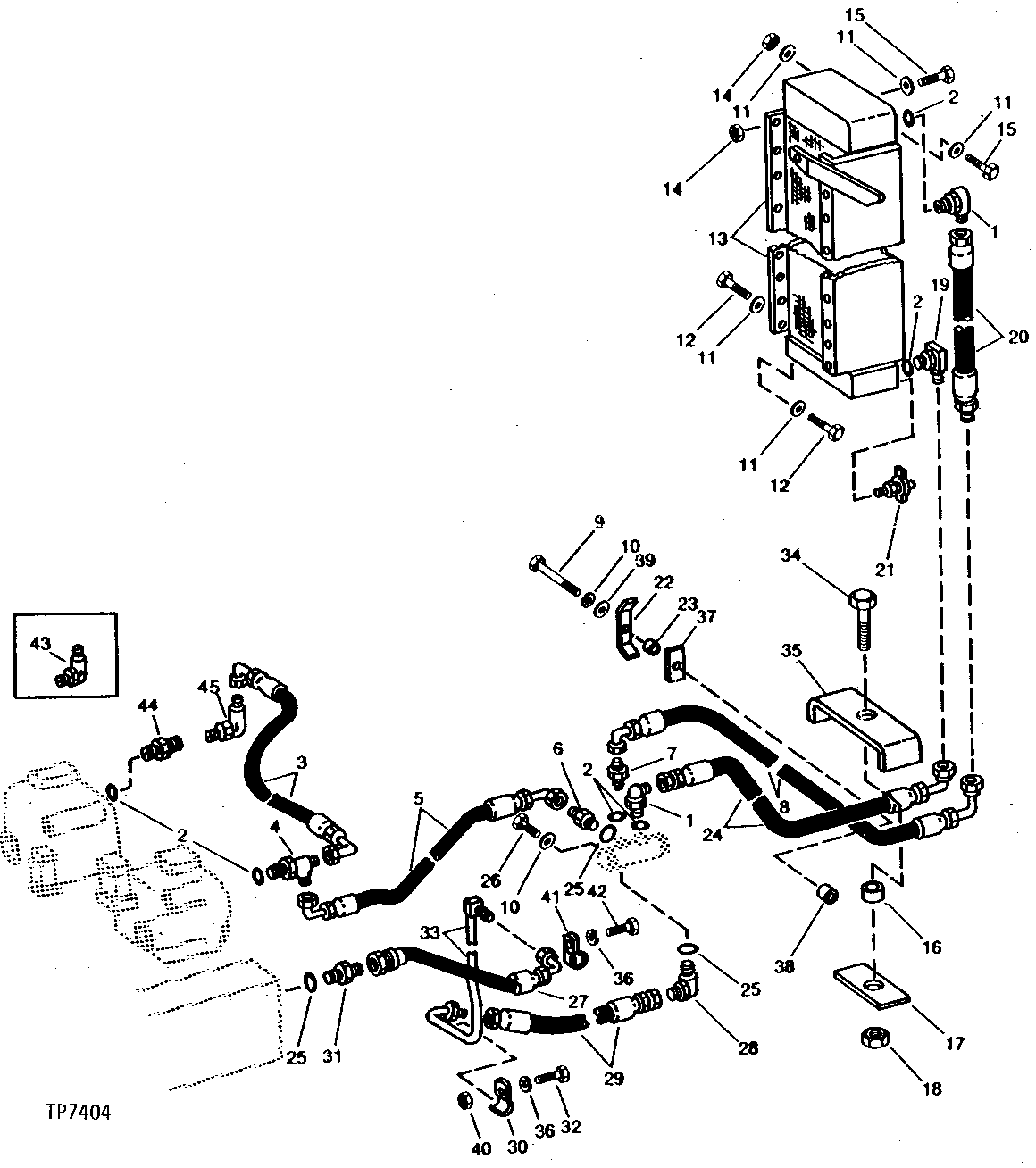

OIL COOLER AND BYPASS VALVE HYDRAULICS (SERIAL NO. -714980) [01G05]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	X2503-16-16	2	ELBOW FITTING	(SUB FOR AU42832)
2	R29936	6	O-Ring	-
3	AT47083	1	HYDRAULIC HOSE - FABRICATE	1-5/16" X 499 MM (19-3/4") X 1-5/16"
4	AT47082	1	TEE FITTING	-
5	AT47094	1	HYDRAULIC HOSE - FABRICATE	1-5/8" X 1 310 MM (51-1/2") X 1-5/8"
6	R37187	1	ADAPTER FITTING	-
7	T26767	1	Fitting	-
8	AT70221	1	HYDRAULIC HOSE - FABRICATE	1-5/16" X 1 371 MM (54") X 1-5/16", (SUB FOR AT69532)
9	19H3404	1	Cap Screw	3/8" X 4"
10	12H304	4	Lock Washer	3/8"
11	24H1308	15	Washer	13/32" X 1" X 0.134", (SUB FOR R42729)
12	19H2676	5	Cap Screw	3/8" X 1"
13	AT104826	1	OIL COOLER	(SUB FOR AT71941)
13	AT60873	1	OIL COOLER	(SUB AT71941 AND AT71942) (SUB AT104826)
14	14H812	5	NUT	3/8"
15	19H3483	5	Cap Screw	3/8" X 1-1/8"
16	M92064	3	Spacer	0.510" X 3/4" X 0.920", (SUB FOR 28H187)
17	T43358	1	Strap	(SUB FOR T43347)
18	T11234	1	Lock Nut	-
19	AT56812	1	ELBOW FITTING	-
20	AT47096	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR AT66580)
21	AT13740	1	Drain Valve	-
22	U44385	1	CLAMP	-
23	28H1553	1	Spacer	1/2" X 1-7/16"
24	AT70220	1	HOSE	1-5/16" X 1 270 MM (50") X 1-5/16", (SUB FOR AT69926 AND AT68994)
25	U13639	3	O-Ring	-
26	19H2855	2	Cap Screw	3/8" X 3-1/4"
27	AT55360	1	HOSE	1-5/8" X 521 MM (20-1/2") X 1-5/8"
28	X20C5OX-S	1	Elbow Fitting	(SUB FOR AT35600)
29	AT66665	1	HYDRAULIC HOSE - FABRICATE	1-5/8" X 889 MM (35") X 1-5/8"
30	T35829	1	Clamp	-
31	R37187	1	ADAPTER FITTING	-
32	19H2633	1	Cap Screw	3/8" X 1-1/2"
33	AT72404	1	TUBE	(SUB FOR AT55359)
34	19H1726	1	Cap Screw	3/8" X 2-1/4"
35	T27022	1	Clamp	-
36	12H304	2	Lock Washer	3/8"
37	T48730	1	STRAP	-
38	28H2531	1	Bushing	-
39	24H1682	1	Washer	13/32" X 7/8" X 0.120"
40	14H812	1	NUT	3/8"
41	T26955	1	Clamp	-
42	19H2676	1	Cap Screw	3/8" X 1"
43	X2503-16-16	1	ELBOW FITTING	(SUB FOR AU42832) 90°
44	T26767	1	Fitting	-
45	AT33917	1	ELBOW FITTING	90°
