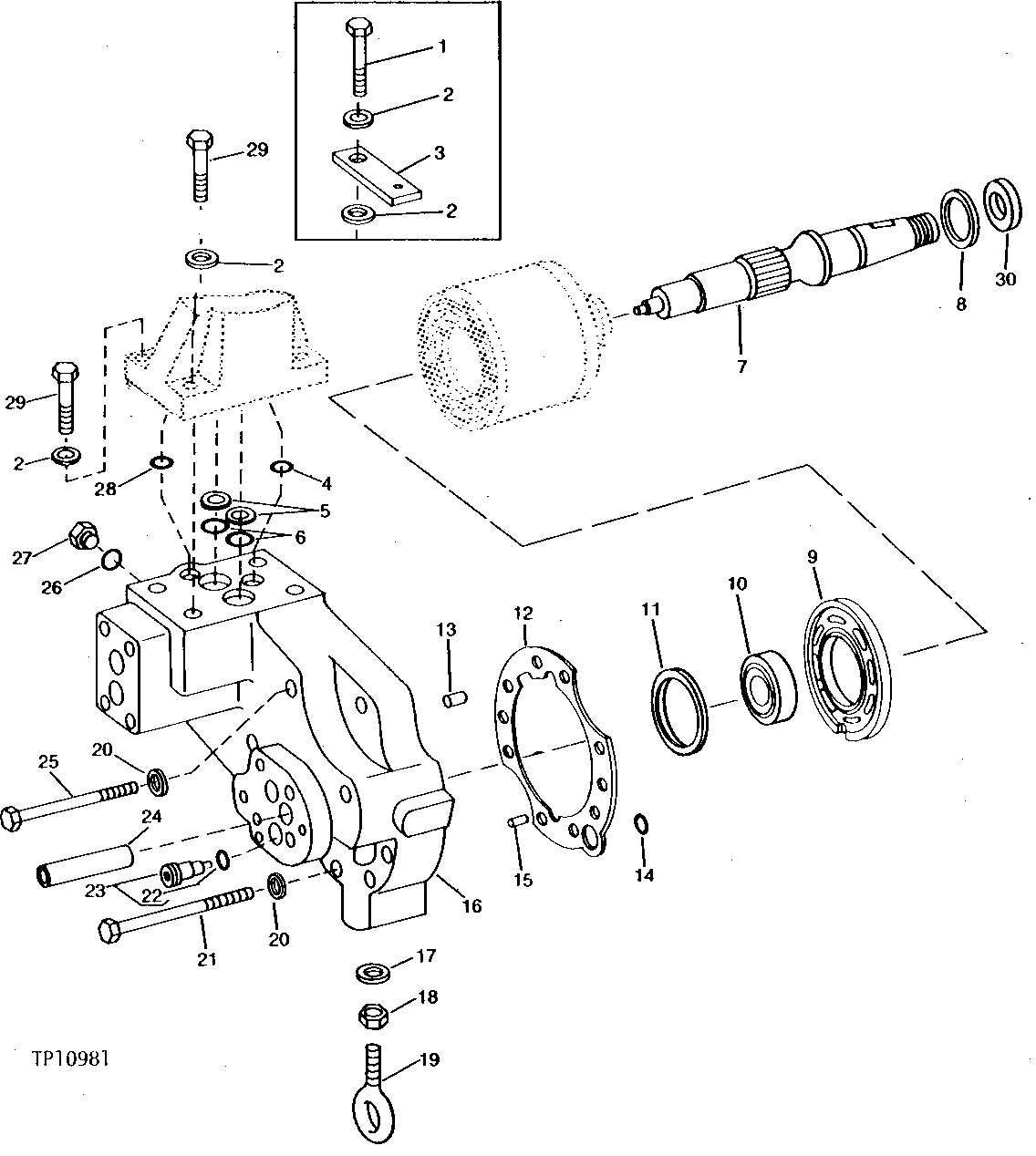

LEFT-HAND TRANSMISSION PUMP END CAP AND SHAFT [01F09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T68350	1	SCREW	(SUB FOR U41108, THIS APPLICATION)
2	T54839	5	WASHER	-
2	T54839	4	WASHER	-
3	-	1	Part 4	( T54942, NO LONGER AVAILABLE)
4	B15646	1	O-Ring	(K)
5	T123276	2	RING	(K) (SUB FOR T54838) (DO NOT USE H84318 WITH T123276)
6	H84318	2	O-Ring	(K) (SUB FOR T54837 AND T65955) (DO NOT USE WHEN T123276 HAS BEEN INSTALLED)
7	T60037	1	SHAFT	-
8	-	1	Part 9	0.25 MM (.01") (USE ONLY WITH SHORT SHAFT) ( T56575 IS NO LONGER REQUIRED)
9	T54917	1	PLATE	-
10	AT52818	1	TAPERED ROLLER BEARING	REAR
11	T53332	1	SHIM	0.25 MM (.01")
12	T54911	1	GASKET	(K)
13	H63271	1	Pin	-
14	H81608	1	O-Ring	(K)
15	H63245	2	PIN	-
16	T54945	1	CAP	-
17	T54864	1	WASHER	-
18	14H826	1	Nut	1/2"
19	T54946	1	EYEBOLT	-
20	24H1652	8	Washer	13/32" X 11/16" X 7/64"
21	19H1912	5	Cap Screw	3/8" X 3-1/2"
22	H63283	2	O-Ring	-
23	AH63288	2	CHECK VALVE	-
24	T54921	1	SPLINED COUPLING	-
25	19H2054	3	CAP SCREW	3/8" X 4-3/4"
26	R26448	1	O-Ring	-
27	R27218	1	Fitting Plug	-
28	P50883	1	Ring	(K)
29	T68349	3	SCREW	-
29	T68349	4	SCREW	-
30	T76717	1	SEAL	-

LEFT-HAND TRANSMISSION PUMP END CAP AND SHAFT [01F09]
