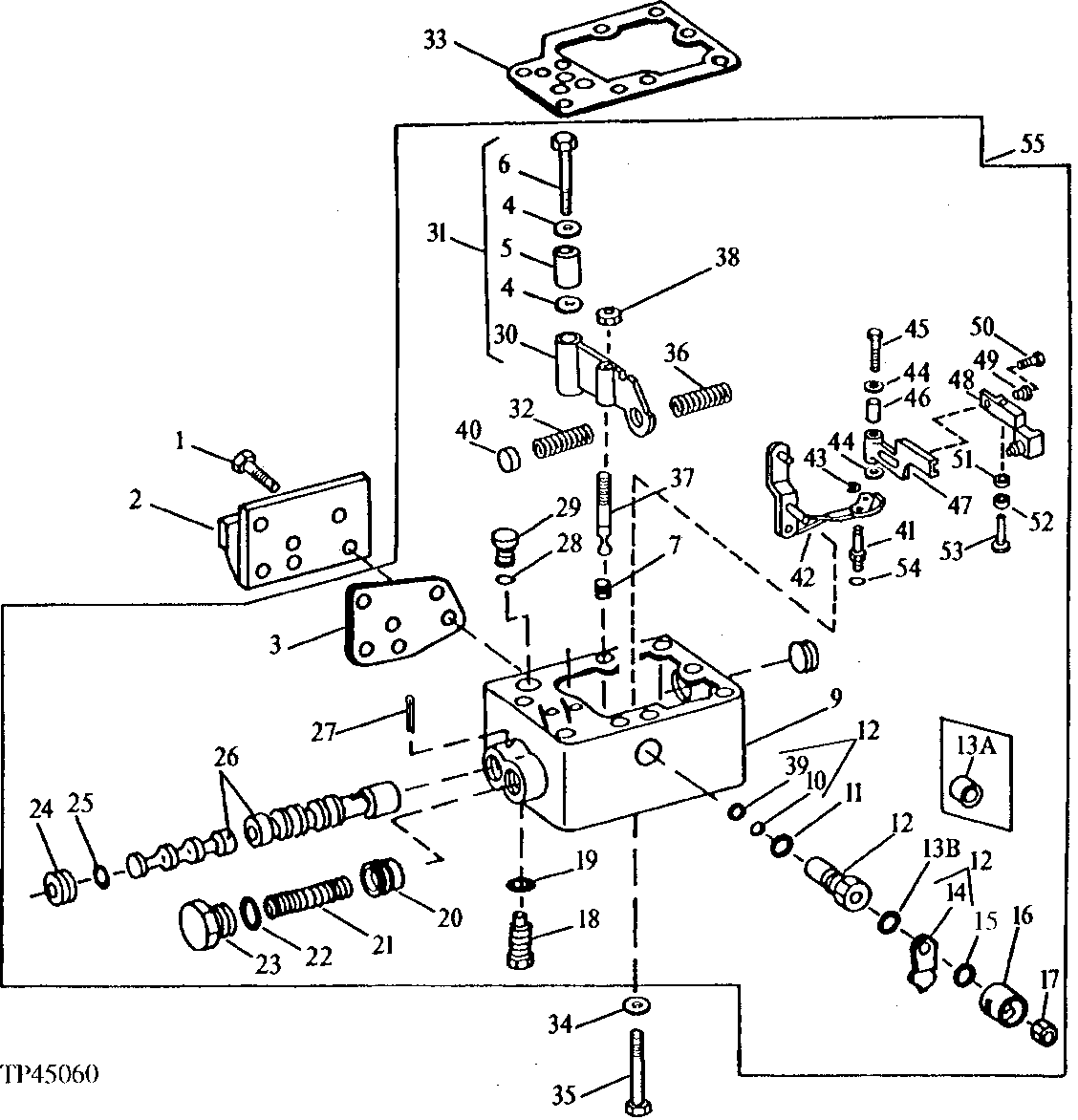

LEFT-HAND AND RIGHT-HAND TRANSMISSION MOTOR DISPLACEMENT CONTROL VALVE [01D22]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2924	3	Screw	1/4" X 3/4"
2	T66700	1	COVER	-
3	T141729	1	GASKET	(K) (SUB FOR T54901)
4	T54899	2	WASHER	-
5	T54900	1	BUSHING	-
6	T54898	1	SELF-LOCKING SCREW	-
7	T71689	1	SCREW	-
8	X05HP-4	1	Fitting Plug	(SUB FOR T54904)
9	-	1	Part 9	(SUB AT68531) (SUPPLIER DIRECT-GASKET AND MOUNTING BOLTS SHOULD ALSO BE ORDERED)
10	T112206	1	RING	-
11	R26448	1	O-Ring	-
12	AT151220	1	KIT	(SUB FOR T54897 AND T76458)
14	-	1	Part 15	-
15	24H1283	1	Washer	(A) 7/32" X 1/2" X 0.049"
16	T54895	1	SHIELD	(A)
17	T54896	1	LOCK NUT	(A)
18	T54902	1	BLEED VALVE	-
19	P51212	1	O-Ring	-
20	AT56633	1	NUT	-
21	T58987	1	SET SCREW	-
22	R26906	1	O-Ring	(K)
23	R27474	1	Drain Plug	-
24	T54903	1	PLUG	-
25	R27166	1	O-Ring	-
26	-	1	Part 27	(SUB AT68531) (SUPPLIER DIRECT-GASKET AND MOUNTING BOLTS SHOULD ALSO BE ORDERED)
27	34H247	1	Spring Pin	1/8" X 3/4"
28	A3917R	3	O-Ring	TRANS SERIAL NO. (30AA00000- )
29	AT158094	3	FILTER	(SUB FOR AT68525) TRANS SERIAL NO. (30AA00000- )
30	-	1	Part 31	(SUB AT69680)
31	AT69680	1	LINK	ASSEMBLY FEEDBACK
32	T75902	1	SPRING	ADJUSTING
33	T71501	1	GASKET	-
34	24H1286	8	Washer	9/32" X 1/2" X 1/16"
35	19H3220	8	Cap Screw	1/4" X 2-1/2"
36	T75903	1	SPRING	FEEDBACK
37	T78374	1	BALL STUD	-
38	T78375	1	LOCK NUT	-
39	AT58680	1	SHIM KIT	SHIM
40	T80627	1	RETAINER	-
41	-	1	Part 42	(T11265 NO LONGER AVAILABLE)
42	-	1	Part 43	(A) (SUB AT151220)
42	-	1	Part 44	(A) (AT113044 NO LONGER AVAILABLE) (SUB AT151220)
43	R72654	1	Snap Ring	(SUB FOR R27507)
44	T82414	2	WASHER	-
45	19H2721	1	Cap Screw	1/4" X 1-1/2"
46	T112267	1	BUSHING	-
47	AT113043	1	LINK	-
48	T112270	1	LINK	-
49	T112271	1	ECCENTRIC	-
50	19H3177	1	Screw	0.164" X 0.620"
51	T112268	1	WASHER	-
52	T112266	1	FOLLOWER	-
53	T112269	1	PIN FASTENER	-
54	R26287	1	O-Ring	-
55	-	1	Part 57	(SUB AT68531) (SUB FOR AT56974) TRANS SERIAL NO. ( -17ZZ99999) KIT, REMANUFACTURED MOTOR CONTROL VALVE (SUPPLIER DIRECT-GASKET AND MOUNTING BOLTS SHOULD ALSO BE ORDERED)
55	AT68531	1	KIT	TRANS SERIAL NO. (30AA00000- )
13A	T54893	1	WASHER	(A) (SUB T76457)
13B	T76457	1	O-RING	(A) (SUB FOR T54893)

LEFT-HAND AND RIGHT-HAND TRANSMISSION MOTOR DISPLACEMENT CONTROL VALVE [01D22]

Нет текстового описания
