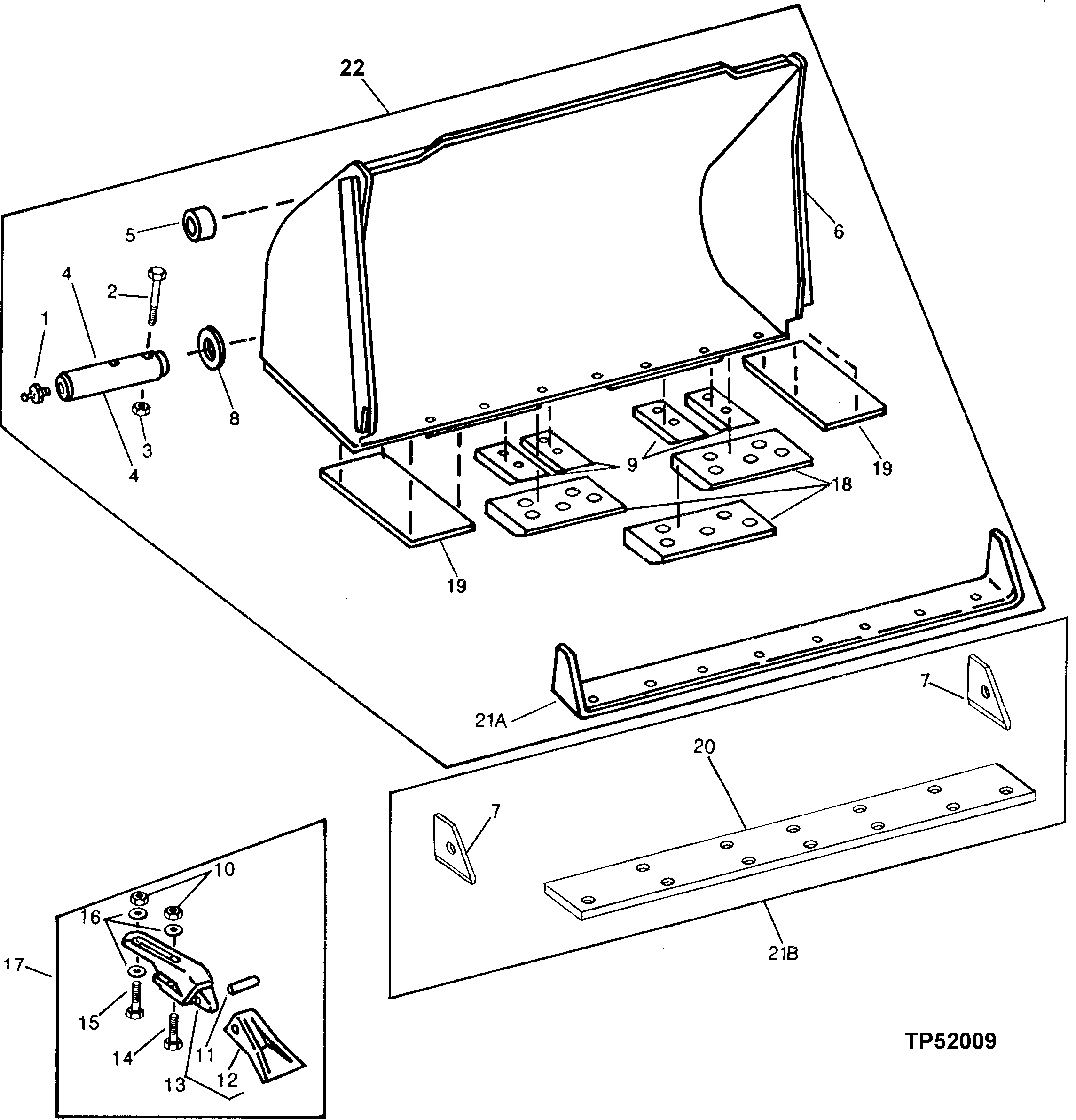

GENERAL PURPOSE BUCKET 1.7 M3 (2-1/4 CUBIC YARD) [03B05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7759	1	Lubrication Fitting	1/8"
2	T27644	1	Screw	-
3	H32811	1	Lock Nut	-
4	T82063	2	PIN FASTENER	(SUB FOR AT46544 AND AT78638)
5	T54081	2	Bushing	(BUCKET PIVOT PLATE BUSHING FOR BUCKET BELLCRANK LINK TO BUCKET PIN)
6	-	1	Part 6	(NO LONGER AVAILABLE)
7	T77784	2	END PLATE	(USE WITH T81336)
8	T54087	6	WASHER	-
9	T67033	4	PLATE	(SUB T77783)
10	14H1058	16	Nut	(SUB FOR E54521)
11	TP160	8	Pin	(SUB FOR T25101)
12	T29887	8	TOOTH	-
13	AT58683	8	KIT	-
14	19H3027	8	Cap Screw	HS, SAE 8, 3/4" X 3-1/2"
15	19H2431	4	CAP SCREW	HS, SAE 8, 3/4" X 2-1/4"
15	19H3137	4	Cap Screw	HS, SAE 8, 3/4" X 2-3/4"
16	N231749	24	Washer	(SUB FOR T33089)
17	-	1	Part 18	(CONTAINS EIGHT TEETH AND HARDWARE) (AT58681 NO LONGER AVAILABLE FURNISH COMPONENT PARTS)
18	T67032	3	PLATE	(SUB T77782)
19	T67034	2	REINFORCEMENT	(SUB T77782)
20	T81336	1	DURA-MAX TM CUTTING EDGE	(USE WITH T77784)
22	-	1	Part 24	(AT62262 AND AT74452 NO LONGER AVAILABLE) 1.7 M3 (2-1/4 CU. YARD)
21A	T64005	1	DURA-MAX TM CUTTING EDGE	25.4 MM (1") THICK, (SUB (2) T77784 AND T81336)
21B	AT82815	1	CUTTING EDGE	(SUB (2) T77784 AND T81336)

GENERAL PURPOSE BUCKET 1.7 M3 (2-1/4 CUBIC YARD) [03B05]
