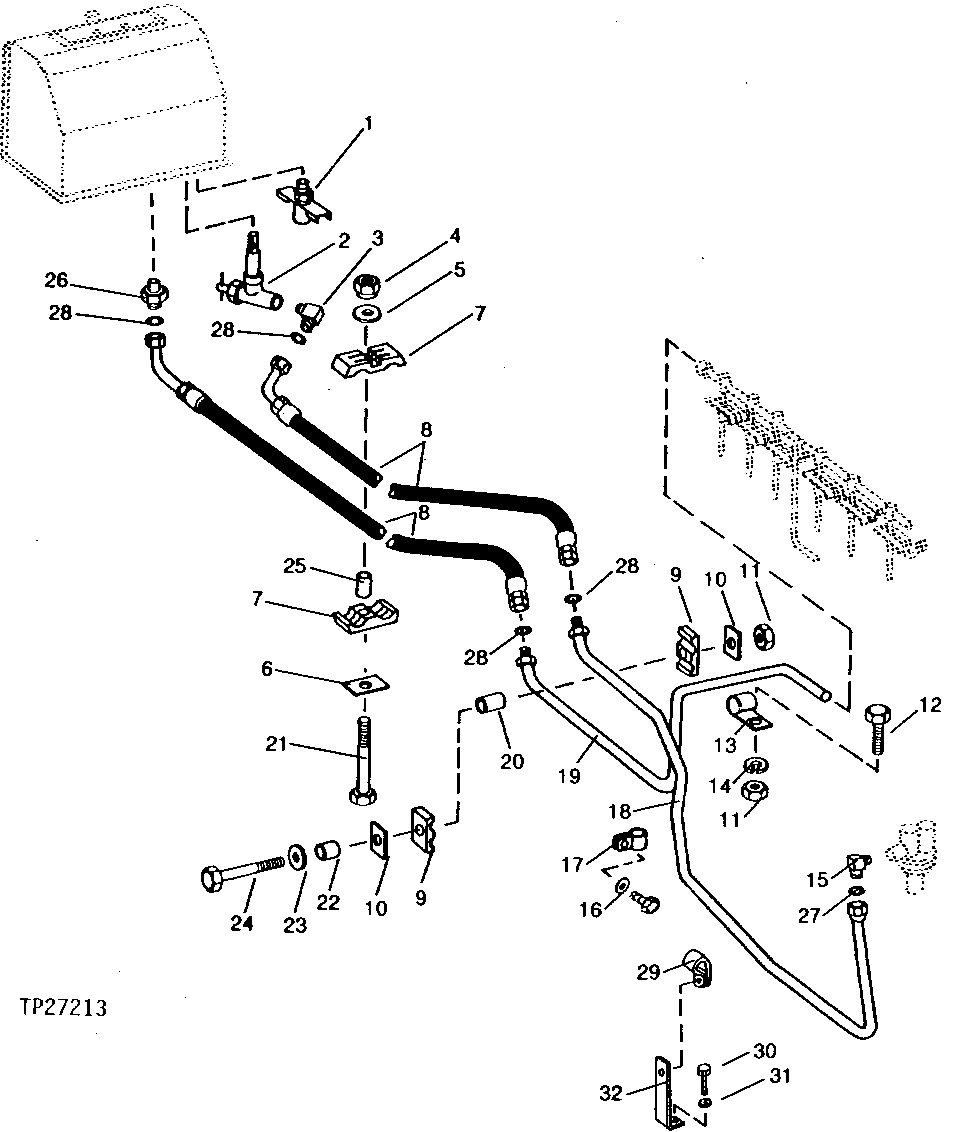

FUEL HOSES (SERIAL NO. 714981- ) [02C13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT13740	1	Drain Valve	-
2	AT51946	1	HAND OPERATED VALVE	-
3	R87907	1	Elbow Fitting	(SUB FOR T79789)
4	M40333	1	Lock Nut	-
5	24H1821	2	Washer	9/32" X 47/64" X 1/16"
6	R41489	1	STRAP	-
7	H105482	2	Clamp	-
8	AT79763	2	HYDRAULIC HOSE - FABRICATE	11/16" X 1 440 MM (56-3/4") X 11/16"
9	T43348	2	Clamp	(SUB FOR T50391)
9	19H1912	1	Cap Screw	3/8" X 3-1/2", (FUEL LINE AND LEAK-OFF TUBE TO CLUTCH DISCONNECT BRACKET ON SPLITTER HOUSING)
10	T50390	2	STRAP	-
11	14H812	2	NUT	3/8"
12	19H2676	1	Cap Screw	3/8" X 1"
13	T29527	1	Clamp	-
14	12H304	1	Lock Washer	3/8"
15	T79789	1	ADAPTER FITTING	-
16	24H1305	1	Washer	13/32" X 13/16" X 0.065"
17	T33514	1	Clamp	-
18	AT135499	1	FUEL LINE	(SUB FOR AT79760)
19	AT79761	1	OIL TUBE	-
20	T50392	1	BUSHING	-
21	19H2333	1	Cap Screw	1/4" X 2-1/4"
22	28H1697	1	Spacer	3/8" X 3/4"
23	24H1307	1	Washer	13/32" X 1" X 1/16"
24	19H2732	1	Cap Screw	3/8" X 2-3/4"
25	M65702	1	SPACER	-
26	M87733	1	Adapter Fitting	-
27	T77857	1	O-Ring	-
28	T77613	4	O-Ring	-
29	T33514	1	Clamp	(FUEL LINE TO STRAP-ON ENGINE BLOCK)
29	12H304	1	Lock Washer	3/8", (FUEL LINE CLAMP TO SUPPORT STRAP SCREW)
30	19H2676	2	Cap Screw	3/8" X 1", (FUEL LINE SUPPORT STRAP TO ENGINE BLOCK) (FUEL LINE CLAMP TO SUPPORT STRAP)
31	R57696	4	Washer	(2-FUEL LINE SUPPORT STRAP TO ENGINE BLOCK SCREW) (2-FUEL LINE CLAMP TO SUPPORT STRAP SCREW)
32	T34530	1	ANGLE	(FUEL LINE TO ENGINE BLOCK)

FUEL HOSES (SERIAL NO. 714981- ) [02C13]
