BRAKE VALVE LINKAGE NOTE: SOME MACHINES BELOW (SERIAL NO. -700364) MAY HAVE BEEN CHANGED TO CONFORM TO (SERIAL NO. 700365- ) SEE APPROPRIATE PAGE [02D03]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

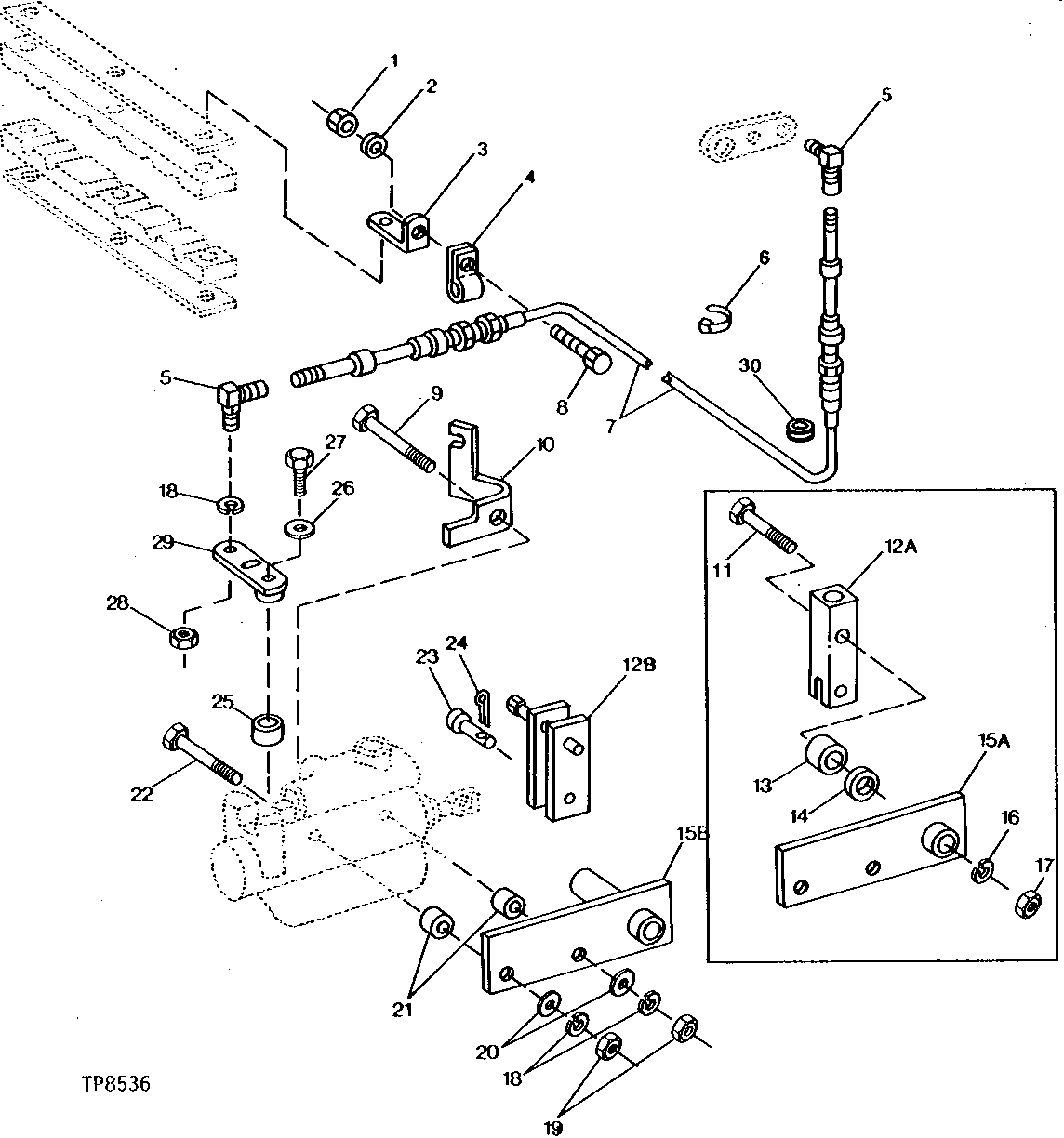

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H812	1	NUT	3/8"
2	24H1305	1	Washer	13/32" X 13/16" X 0.065"
3	U42367	1	Angle	(WITH CAB)
4	H75541	1	Clamp	(SUB FOR R34557)
5	AU11709	2	Ball Joint	-
6	R44302	4	Tie Band	-
7	AT113469	1	CABLE	(SUB FOR AT57666)
8	19H2676	1	Cap Screw	3/8" X 1"
9	19H2345	1	Cap Screw	3/8" X 5-1/2"
10	T59426	1	ANCHOR	-
11	19H3520	1	Cap Screw	1/2" X 3-1/4"
13	T49472	1	BUSHING	-
14	24H1625	1	Washer	17/32" X 1" X 0.120"
16	12H301	1	Lock Washer	1/2"
17	14H1040	1	Nut	1/2"
18	12H304	3	Lock Washer	3/8"
19	T11234	2	Lock Nut	3/8"
20	24H1682	2	Washer	13/32" X 7/8" X 0.120"
21	28H2481	2	Spacer	3/8" X 1/2"
22	19H1925	1	Cap Screw	3/8" X 4-1/4"
23	T15652	1	Pin Fastener	-
24	11M7081	1	Cotter Pin	2.500 X 20 MM
25	T12192	1	BUSHING	-
26	24H1219	1	Washer	7/16" X 1" X 0.083"
27	19H3217	1	Cap Screw	3/8" X 1-3/4"
28	T10581	2	Lock Nut	(SUB FOR T60313)
29	T127743	1	LEVER	(SUB FOR AT57844)
30	N31425	1	Grommet	(USED WITH CAB) (NO LONGER AVAILABLE)
12A	T73814	1	YOKE	-
12A	T49471	1	YOKE	(SUB T73814 AND AT71084)
12B	AT75385	1	BRACKET	-
15A	AT71084	1	BRACKET	(SUB AT75385 AND AT75386, THIS APPLICATION)
15A	AT48114	1	BRACKET	(SUB AT71084 AND T73814)
15B	AT75386	1	LEVER	-

BRAKE VALVE LINKAGE NOTE: SOME MACHINES BELOW (SERIAL NO. -700364) MAY HAVE BEEN CHANGED TO CONFORM TO (SERIAL NO. 700365- ) SEE APPROPRIATE PAGE [02D03]
