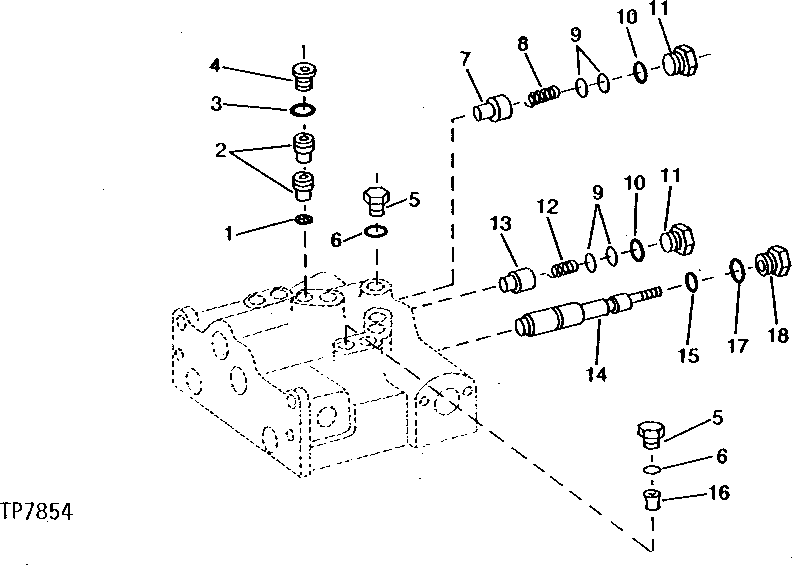

TRANSMISSION RELIEF VALVE, (P1) PRESSURE REGULATOR (P2) AND AUTOMATIC CONTROL VALVE SHUT-OFF VALVE [01F09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T55002	1	FILTER	-
2	T60035	2	PIPE PLUG	-
3	R26448	1	O-Ring	-
4	T54967	1	Fitting Plug	-
5	R51031	8	Fitting	-
6	R28782	8	O-Ring	(K)
7	T54964	1	PRESSURE RELIEF VALVE	(P2)
8	H89241	1	Spring	-
9	T54908	1	SOLID SHIM	0.25 MM (.010")
10	R47151	2	O-Ring	(K) (SUB FOR R26906, THIS APPLICATION)
11	H63221	2	FITTING	-
12	H81623	1	COMPRESSION SPRING	-
13	T54964	1	PRESSURE RELIEF VALVE	(P1)
14	T55013	1	VALVE	(COLD START SPOOL) (3/8" DIAMETER)
14	T66490	1	HAND OPERATED VALVE	(COLD START SPOOL) (1/2" DIAMETER)
14	T56573	1	VALVE	(COLD START SPOOL) (3/8" DIAMETER) (ON REMANUFACTURED CONTROL VALVES THE HOUSING WILL BE STAMPED WITH A "D" NEXT TO COLD START SPOOL BORE)
14	T66489	1	HAND OPERATED VALVE	(COLD START SPOOL) (ON REMANUFACTURED CONTROL VALVES THE HOUSING WILL BE STAMPED WITH A "D" NEXT TO COLD START SPOOL BORE) (1/2" DIAMETER)
15	T55011	1	O-RING	(K)
16	T55004	1	ORIFICE	(A) (RED)
16	T78161	1	ORIFICE	(A) (WHITE)
16	T82418	1	PLUG	(A) (RED)
16	T82419	1	PLUG	(A) (WHITE)
17	R26448	1	O-Ring	(K)
18	T55012	1	PIPE PLUG	-

TRANSMISSION RELIEF VALVE, (P1) PRESSURE REGULATOR (P2) AND AUTOMATIC CONTROL VALVE SHUT-OFF VALVE [01F09]
