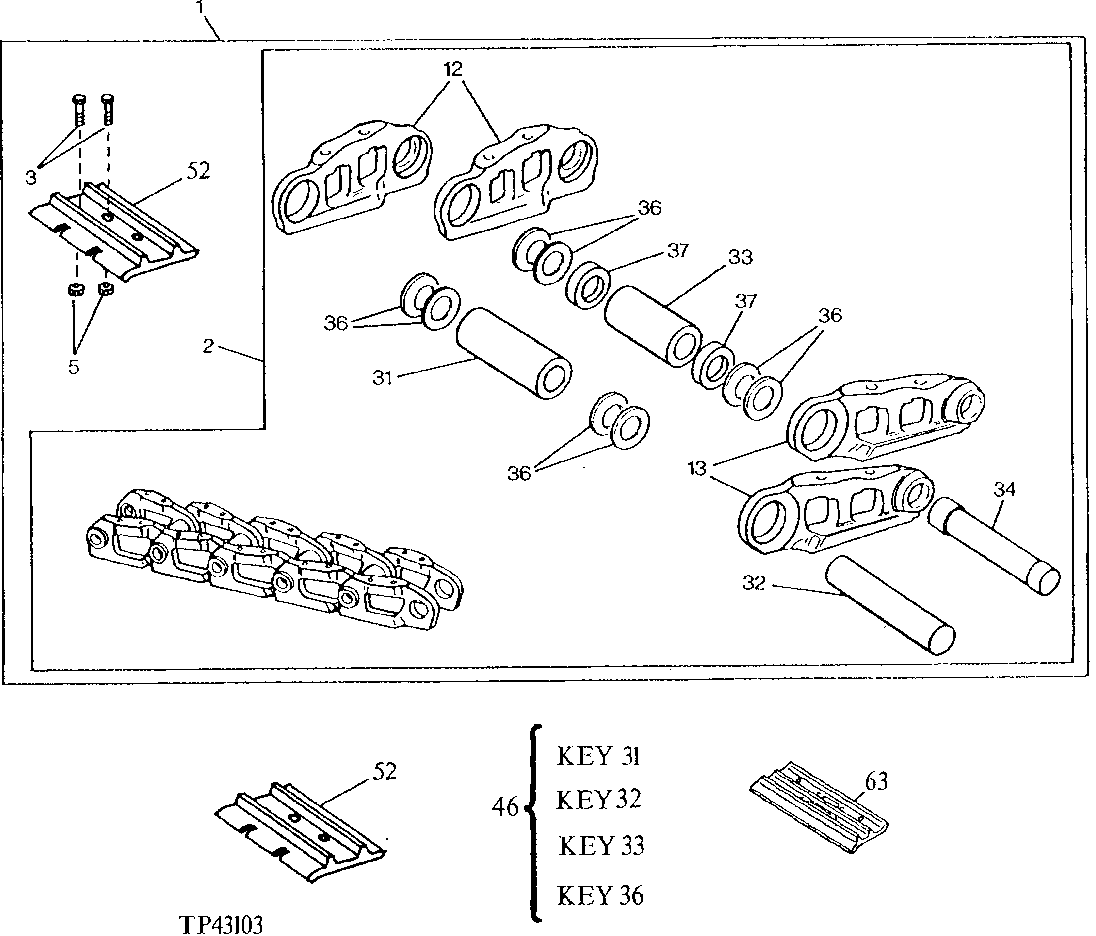

SEALED CHAIN 5/8", WITH MASTER PIN AND STRUTTED LINKS (40L) [01B20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	(NOT AVAILABLE)
2	AT67739	1	TRACK CHAIN W/O SHOES	(40L) (SUB FOR AT63087 AND AT57655)
3	T43323	160	TRACK BOLT	(SUB FOR T45096)
5	T45097	160	Nut	-
12	T70317	39	STRUTTED LINK-LH	(SUB FOR T45101)
12	T70317	1	STRUTTED LINK-LH	USE AS MASTER, (SUB FOR T45106)
12	T70317	40	STRUTTED LINK-LH	(SUB FOR T45101)
13	T70316	40	STRUTTED LINK-RH	(SUB FOR T45102)
13	T70316	1	STRUTTED LINK-RH	USE AS MASTER, (SUB FOR T45105)
13	T70316	39	STRUTTED LINK-RH	(SUB FOR T45102)
31	T70777	39	BUSHING	(SUB FOR T45103)
32	T70778	39	TRACK PIN	(SUB FOR T45104)
33	T70779	1	MASTER TRACK BUSHING	(SUB FOR T45107)
34	AT67751	1	INSTRUCTIONS	KIT (CONTAINS (4)TRACK SEALS, (2)SPACERS AND (1)MASTER PIN) (SUB FOR T45108, AT52958 AND AT57653)
36	T70780	160	SPRING WASHER	(SUB FOR T45109)
37	T70781	2	WASHER	(SUB FOR T45110)
46	AT67749	1	PIN, SEAL & BUSHING KIT	(INCLUDES ONE MASTER PIN) (ALSO ORDER AT67751) (SUB FOR AT57657) (CONTAINS (39) T70777, T70779, (160) T70780 AND (39) T70778)
52	T71905	40	DOUBLE BAR SHOE	373MM (15") (SUB FOR T66507)
63	T45100	40	OPEN CENTER 3 BAR SHOE	373MM (15")

SEALED CHAIN 5/8", WITH MASTER PIN AND STRUTTED LINKS (40L) [01B20]
