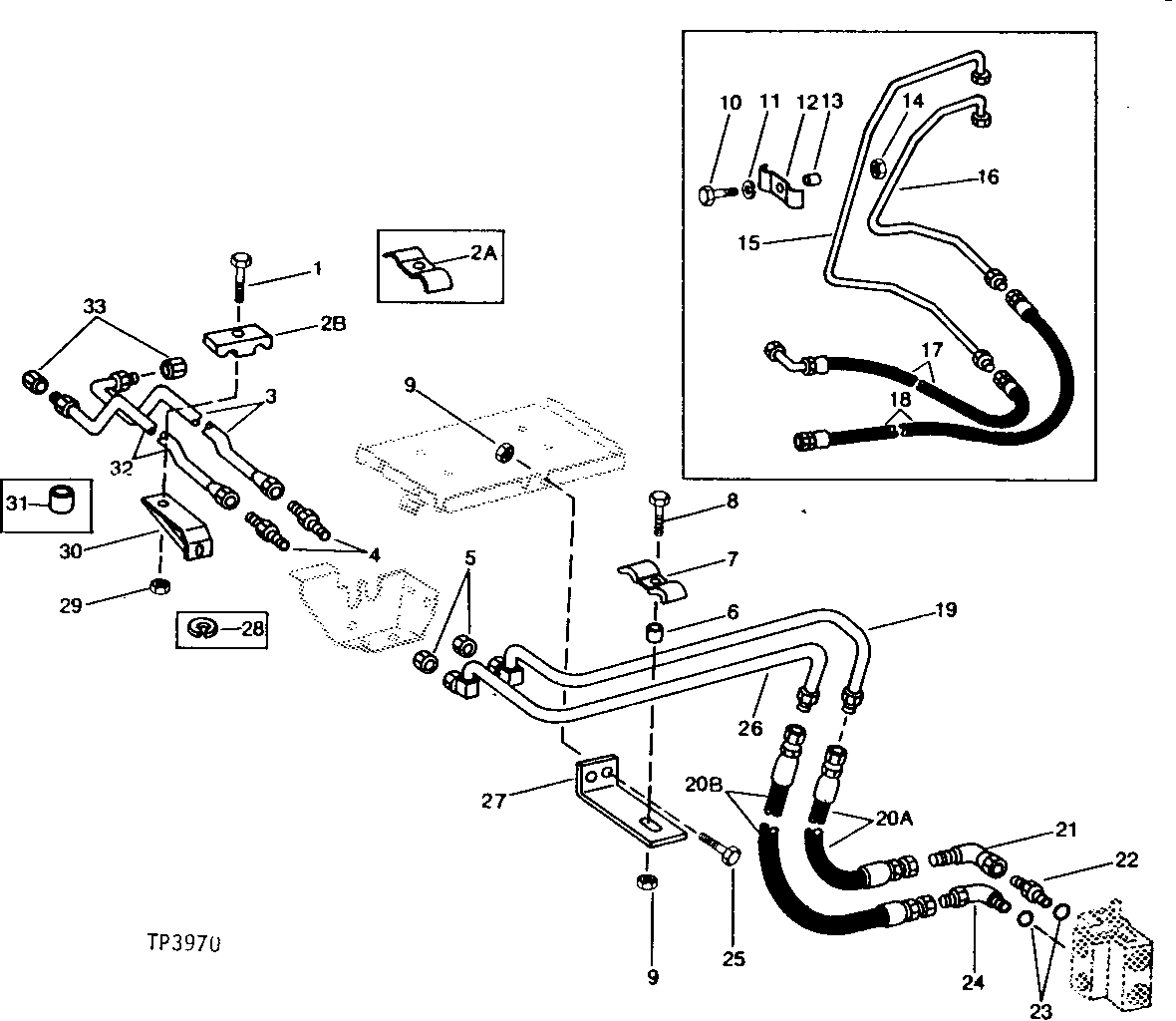

RIPPER HYDRAULIC LINES (WITH DOUBLE SELECTOR VALVE) [03E18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3065	1	Cap Screw	3/8" X 2"
1	19H3385	1	Cap Screw	1/2" X 1-1/8"
3	AT48523	1	TUBE	INNER
4	R47876	2	Fitting	(SUB FOR T49839)
5	R27390	2	Nut	-
6	28H2481	1	Spacer	3/8" X 1/2"
7	U13055	1	CLAMP	-
8	19H2633	1	Cap Screw	3/8" X 1-1/2"
9	T11234	3	Lock Nut	-
10	19H2633	1	Cap Screw	3/8" X 1-1/2"
11	12H304	1	Lock Washer	3/8"
12	U13055	1	CLAMP	-
13	28H1521	1	Spacer	3/8" X 9/16"
14	24H1315	1	Washer	13/32" X 2-1/8" X 0.134"
15	AT52900	1	TUBE	AUXILIARY, OUTER, FRONT
16	AT52899	1	TUBE	AUXILIARY, INNER, FRONT
17	AT33433	1	HYDRAULIC HOSE - FABRICATE	506 MM LONG (1-1/16" X 20")
18	AT52901	1	HYDRAULIC HOSE	601 MM LONG (1-1/16" X 24")
19	AT58575	1	LINE	-
21	AT28379	1	Fitting	-
22	R27267	1	Fitting	(SUB FOR T38290 OR X12F5OX-S, THIS APPLICATION)
23	U12547	2	O-Ring	(SUB FOR (2) F3171R)
24	AT32331	1	Elbow Fitting	-
25	19H2676	2	Cap Screw	3/8" X 1"
26	AT58576	1	LINE	-
27	T61014	1	ANGLE	-
28	12H304	1	Lock Washer	3/8"
29	14H812	1	NUT	3/8"
30	AT48525	1	BRACKET	-
31	28H1521	1	Spacer	3/8" X 9/16"
32	AT48524	1	TUBE	-
33	T29439	2	Fitting	(SUB FOR T49843)
2A	U13055	1	CLAMP	-
2B	T38967	1	CLAMP	-
20A	AT58645	1	HYDRAULIC HOSE - FABRICATE	573 MM LONG (1-1/16" X 22-1/2")
20B	AT42234	1	HYDRAULIC HOSE - FABRICATE	698 MM LONG (1-1/16" X 27-1/2") (SUB FOR AT58645, THIS APPLICATION)

RIPPER HYDRAULIC LINES (WITH DOUBLE SELECTOR VALVE) [03E18]
