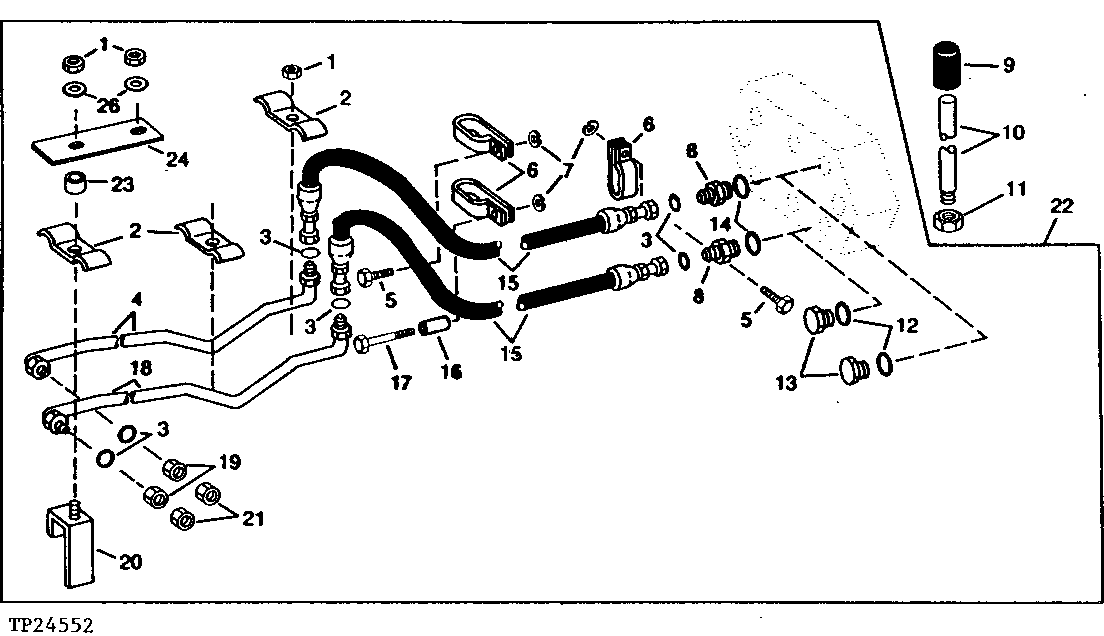

REPLACEMENT FRONT AUXILIARY HYDRAULIC LINES (USE WITH AT80433 MULTI-PURPOSE BUCKET) [03D03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	E50102	3	Lock Nut	(SUB FOR C744DN OR (3) M63440)
2	T38967	3	CLAMP	-
3	T77857	6	O-Ring	-
4	AT79798	1	TUBE	OUTER (TO MULTI-PURPOSE BUCKET CYLINDER HOSES)
5	19H2676	2	Cap Screw	HS, SAE 8, 3/8" X 1"
6	AH77869	3	Clip	DOUBLE, INSULATED
7	12H304	3	Lock Washer	3/8"
8	38H1176	2	Adapter Fitting	REDUCING
9	T37058	1	GRIP	(SUB FOR AP17808, THIS APPLICATION)
9	-	1	Part 10	(TO HOLD GRIP ON AUXILIARY LEVER)
10	T120386	1	ROD	(SUB FOR T48087) (ALSO ORDER T37058)
11	14H821	1	Nut	5/8"
12	R29936	2	O-Ring	(USE WHEN NOT EQUIPPED WITH AUXILIARY EQUIPMENT)
13	R36636	2	Drain Plug	(USE WHEN NOT EQUIPPED WITH AUXILIARY EQUIPMENT)
14	R29936	2	O-Ring	-
15	AT132818	2	HYDRAULIC HOSE - FABRICATE	13/16" X 2 769 MM (109") X 13/16", CONTROL VALVE TO BOOM, (SUB FOR AT79800)
16	H87206	1	Spacer	-
17	19H3404	1	Cap Screw	3/8" X 4"
18	AT79797	1	LINE	INNER (TO MULTI-PURPOSE BUCKET CYLINDER HOSES)
19	38H1418	2	Fitting	(SUB FOR 38H1142)
20	AT64386	1	BRACKET	-
21	38H1356	2	Tube Nut	(SUB FOR 38H1121)
22	AT79810	1	MOUNTING PARTS	(ALSO INCLUDES T67567 LABEL)
23	28H1577	1	Bushing	0.622" X 0.840" X 1"
24	T112078	1	STRAP	-
25	24H1311	2	Washer	13/32" X 1-1/4" X 0.220"

REPLACEMENT FRONT AUXILIARY HYDRAULIC LINES (USE WITH AT80433 MULTI-PURPOSE BUCKET) [03D03]
