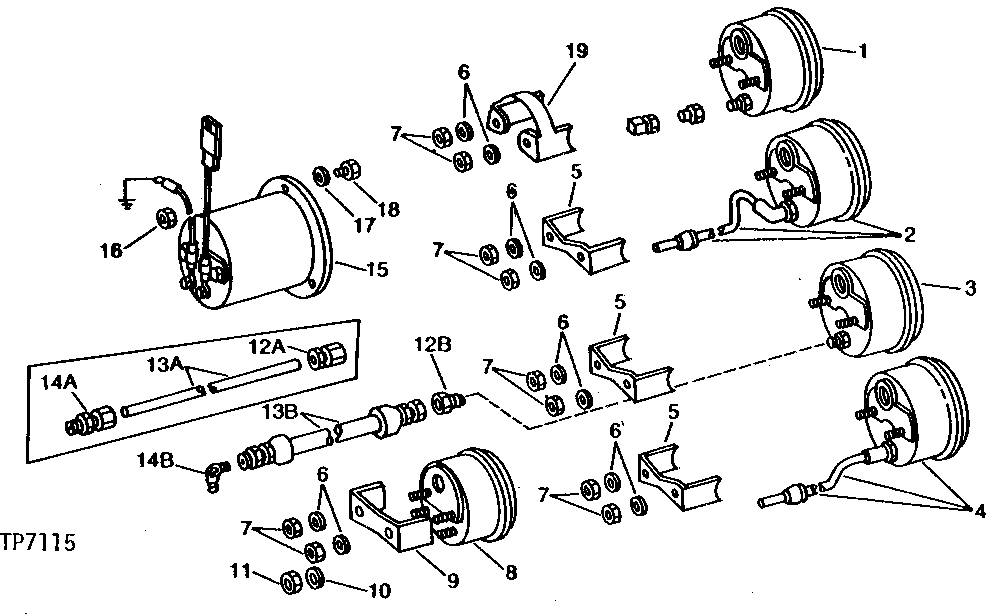

PRESSURE, TEMPERATURE, VOLTMETER AND HOUR METER GAUGES [02F11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT77728	1	GAUGE	TRANSMISSION OIL, (SUB FOR AT72197 AND AT46475) (ALSO ORDER T74617 AND 14H631)
2	AT149005	1	GAUGE	TRANSMISSION OIL TEMPERATURE, (SUB FOR AT46476)
3	AT37411	1	PRESSURE GAUGE	ENGINE OIL
4	AT104655	1	TEMPERATURE GAUGE	ENGINE COOLANT TEMPERATURE, (SUB FOR AT46474) (ALSO ORDER AT104634, AT124052, T118593, (2) 12M7084, 12H315, (3) 14M7100 AND AT151881)
5	T38594	3	BRACKET	-
6	12H295	10	Lock Washer	0.190", INTERNAL TOOTH
7	14H631	11	Nut	0.190"
8	AT46477	1	VOLTMETER	(SUB AT116524 AND T118593 BRACKET. REPLACE HARNESS EYELETS WITH R65595 AND U46370)
9	T39395	1	BRACKET	-
10	12H315	1	Lock Washer	0.164"
11	14H605	1	Nut	0.164"
15	AT226353	1	Hour Meter	(SUB FOR AT44832)
16	14H1026	3	Nut	0.138"
17	12H314	3	Lock Washer	0.138"
18	21H1290	3	Screw	0.138" X 1/2"
19	T74617	1	Bracket	(SUB FOR T38594, THIS APPLICATION)
12A	AT26966	1	FITTING	FEMALE
12B	T49206	1	Adapter Fitting	-
13A	T47931	1	HOSE	5 MM X 2 540 MM (3/16" X 100")
13B	AT47750	1	HOSE	-
14A	AM235T	1	ADAPTER FITTING	-
14B	T28850	1	Elbow Fitting	-

PRESSURE, TEMPERATURE, VOLTMETER AND HOUR METER GAUGES [02F11]

Нет текстового описания
