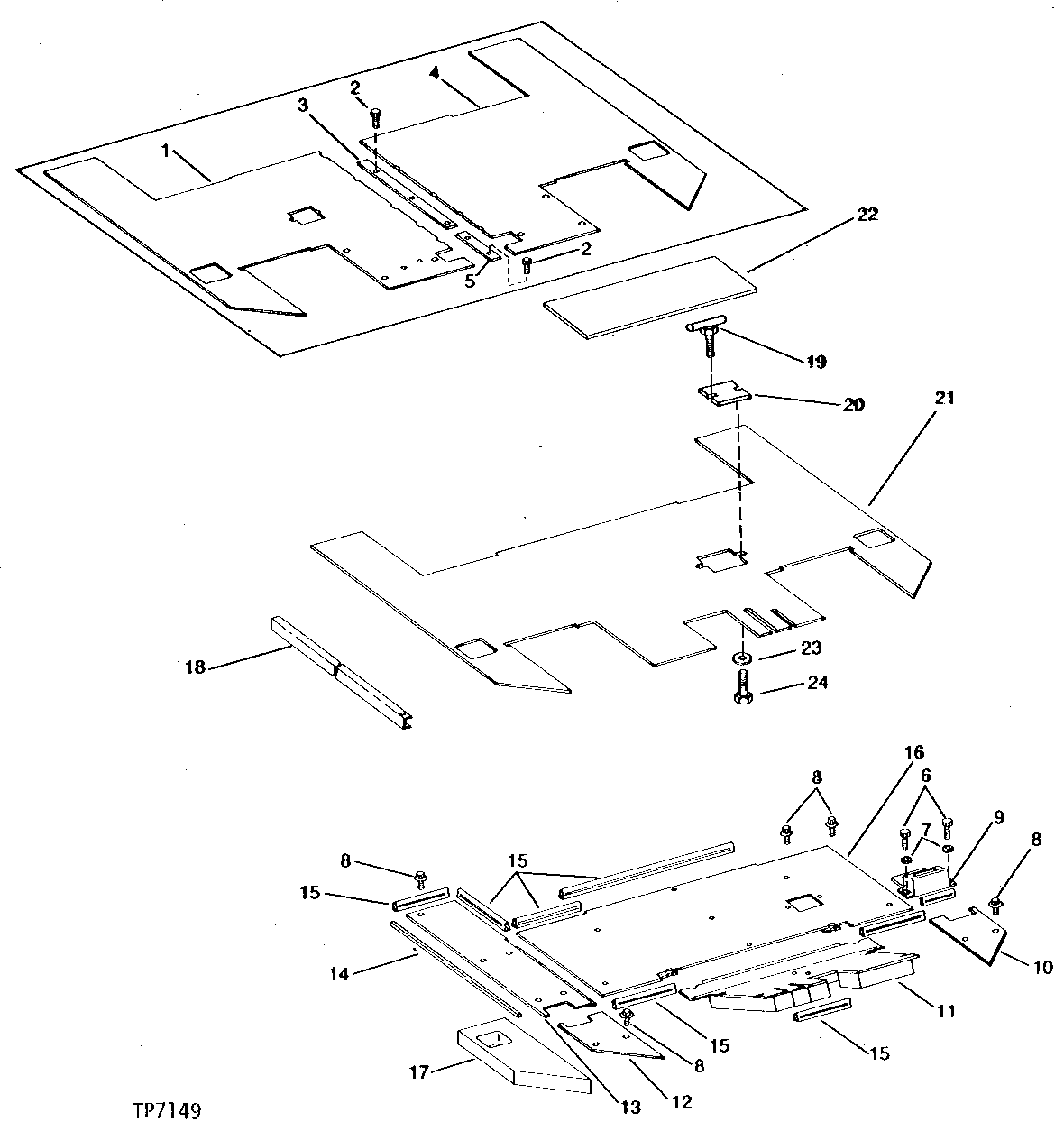

PLATFORM (WITHOUT CAB AND WITHOUT ROLL-OVER PROTECTIVE STRUCTURE) (EXPORT) [02G14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T57259	1	MAT	FLOOR, R.H. (SUB T59545)
2	21H1100	5	Screw	1/4" X 1", MACH.
3	T49768	1	STRAP	SEAM COVER
4	T57260	1	MAT	FLOOR, L.H. (SUB T59545)
5	T49769	1	STRAP	SEAM COVER
6	19H3130	2	Cap Screw	5/16" X 1-3/4"
7	24H1136	2	Washer	11/32" X 11/16" X 0.065"
8	T53268	24	Screw	-
8	T53268	20	Screw	-
9	AT48466	1	COVER	STEERING LINKAGE
10	AT48487	1	PLATFORM	FRONT OUTER, L.H.
11	AT48482	1	FOOTREST	WITH FOAM
12	AT48486	1	PLATFORM	FRONT OUTER, R.H.
13	AT48484	1	PLATFORM	OUTER, R.H.
13	AT48485	1	PLATFORM	OUTER, L.H. (NOT ILLUSTRATED)
14	T49767	2	ISOLATOR	(SUB FOR T49797)
15	AT48467	12	ISOLATOR	668 MM (26.30") PIECE, (SUB FOR AT48468, AT48469, AT48470, AT48471, AT48488 AND AT48489)
16	AT48481	1	PLATFORM	CENTER
17	T49793	1	FOAM PAD	FRONT FENDER (NO LONGER AVAILABLE)
18	T56063	2	RETAINER	MAT
19	AT73007	1	RETAINER	-
20	T59313	1	COVER	-
21	T59545	1	MAT	FLOOR
22	T57258	2	GUSSET	-
23	24H1305	1	Washer	13/32" X 13/16" X .060"
24	19H3239	1	Cap Screw	3/8" X 1-1/4", 3/8" X 1-1/4"

PLATFORM (WITHOUT CAB AND WITHOUT ROLL-OVER PROTECTIVE STRUCTURE) (EXPORT) [02G14]
