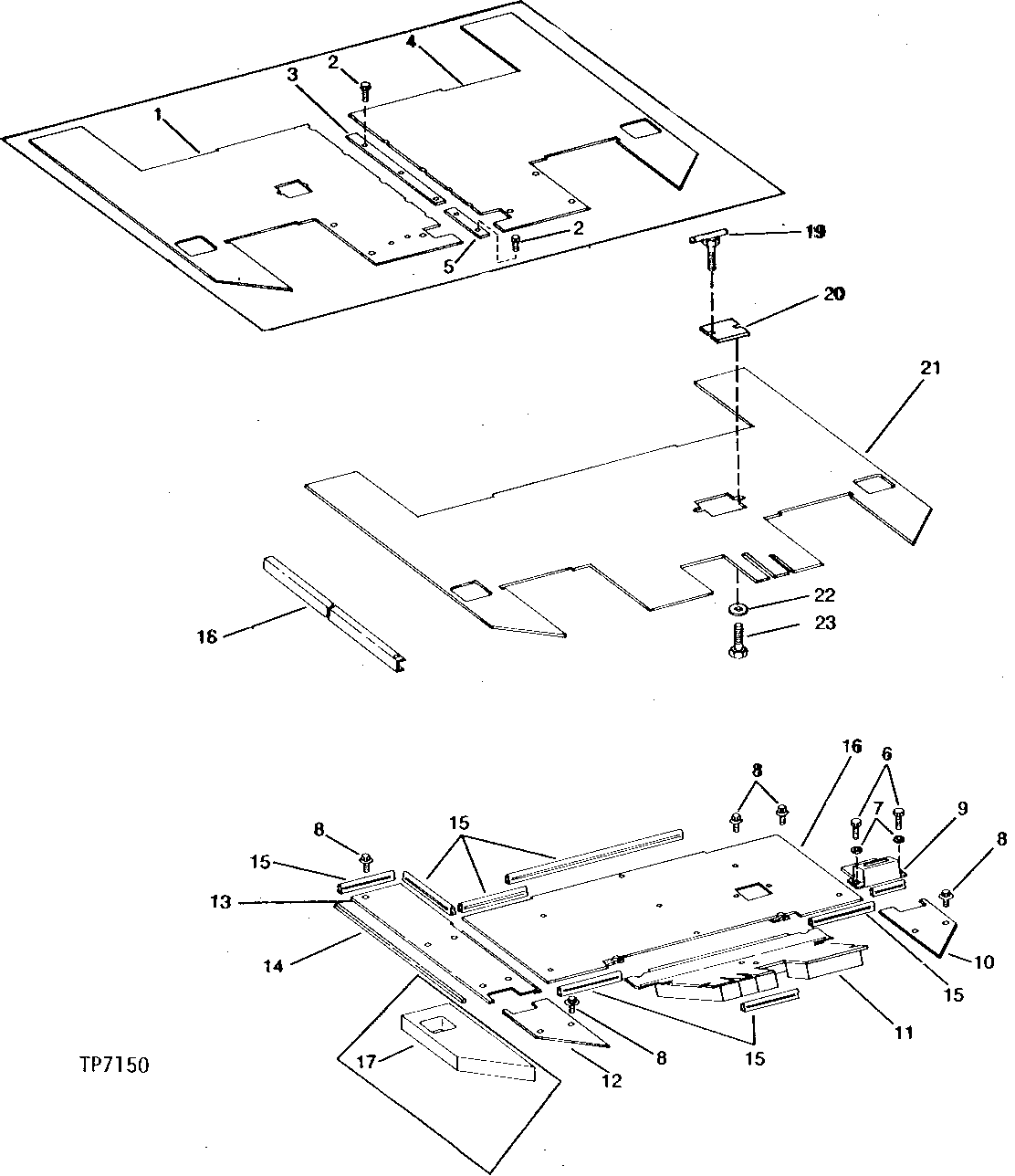

PLATFORM (WITHOUT CAB AND WITH ROLL-OVER PROTECTIVE STRUCTURE) [02G12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	FLOOR, R.H. (SUB T59544) (SUB FOR T49795)
2	21H1100	5	Screw	1/4" X 1"
3	T49768	1	STRAP	SEAM COVER
4	-	1	Part 4	FLOOR, L.H. (SUB T59544) (SUB FOR T49796)
5	T49769	1	STRAP	SEAM COVER
6	19H3130	2	Cap Screw	5/16" X 1-3/4"
7	24H1136	2	Washer	11/32" X 11/16" X 0.065"
8	T53268	24	Screw	-
8	T53268	20	Screw	-
9	T126073	1	COVER	STEERING LINKAGE, (SUB FOR AT48466 AND AT70724)
10	AT48487	1	PLATFORM	FRONT OUTER, L.H.
11	AT48482	1	FOOTREST	WITH FOAM
11	T49785	1	FOAM PAD	TOEBOARD
12	AT48486	1	PLATFORM	FRONT OUTER, R.H.
13	AT48484	1	PLATFORM	OUTER, R.H.
13	AT48485	1	PLATFORM	OUTER, L.H. (NOT ILLUSTRATED)
14	-	2	Part 17	(MAKE FROM AT56771 BULK MATERIAL, CUT TO LENGTH) (SUB FOR T49797)
15	AT48467	12	ISOLATOR	668 MM (26.30") PIECE, (SUB FOR AT48468, AT48469, AT48470, AT48471, AT48488 AND AT48489)
16	AT48481	1	PLATFORM	CENTER
17	T49793	1	FOAM PAD	FRONT FENDER
18	T56062	2	RETAINER	MAT, (SUB FOR T56063)
19	AT73007	1	RETAINER	-
20	T59313	1	COVER	-
21	T59544	1	MAT	FLOOR
22	24H1305	1	Washer	13/32" X 13/16" X .060"
23	19H3239	1	Cap Screw	3/8" X 1-1/4"

PLATFORM (WITHOUT CAB AND WITH ROLL-OVER PROTECTIVE STRUCTURE) [02G12]
