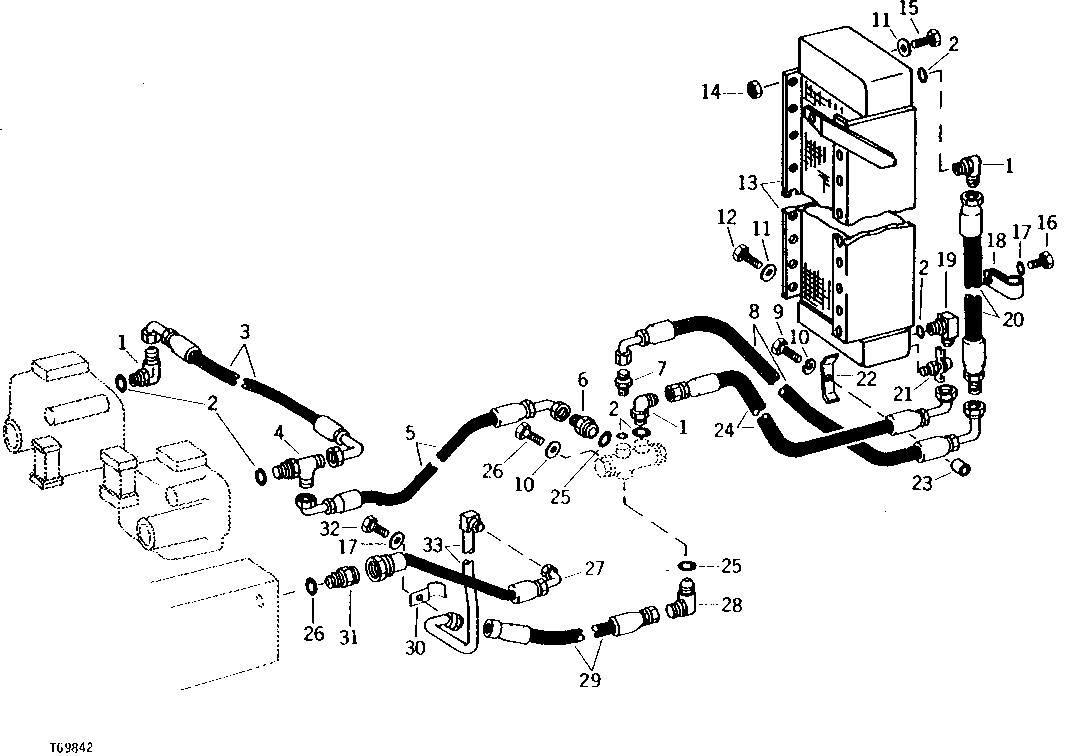

OIL COOLER AND BYPASS VALVE HYDRAULICS [01F22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	X2503-16-16	3	ELBOW FITTING	(SUB FOR AU42832) 90°
2	R29936	8	O-Ring	-
2	R29936	6	O-Ring	-
3	AT47083	1	HYDRAULIC HOSE - FABRICATE	R.H. TRANSMISSION TO L.H. TRANSMISSION
4	AT47082	1	TEE FITTING	-
5	AT47094	1	HYDRAULIC HOSE - FABRICATE	R.H. TRANSMISSION TO BYPASS VALVE
6	T49207	1	ADAPTER FITTING	-
6	R37187	1	ADAPTER FITTING	-
7	T26767	1	Fitting	-
8	AT47095	1	HOSE	OIL COOLER INLET, REAR
9	19H3031	1	Cap Screw	3/8" X 2-1/2"
10	12H304	4	Lock Washer	3/8"
11	R42729	10	Washer	-
12	19H1648	5	Cap Screw	3/8" X 3/4"
13	AT52692	1	OIL COOLER	(ALSO ORDER AT71942)
14	14H812	5	NUT	3/8"
15	19H2676	5	Cap Screw	3/8" X 1"
16	19H2837	1	CAP SCREW	1/2" X 1-1/2"
17	12H303	2	Lock Washer	5/16"
18	L4867T	1	CLIP	-
19	15H275	1	Pipe Plug	1/4"
19	AT56812	1	ELBOW FITTING	-
20	AT47096	1	HYDRAULIC HOSE - FABRICATE	OIL COOLER INLET, FRONT, (SUB FOR AT66580)
21	15H254	1	PIPE PLUG	1/4", (SUB FOR AT13740, THIS APPLICATION)
22	U44385	1	CLAMP	-
23	28H1553	1	Spacer	PIPE, 1/2" X 1-7/16"
24	AT47097	1	HOSE	OIL COOLER OUTLET
25	U13639	3	O-Ring	-
26	19H2855	2	Cap Screw	3/8" X 3-1/4"
27	AT55360	1	HOSE	SUMP RETURN
28	AT47091	1	ELBOW FITTING	-
28	X20C5OX-S	1	Elbow Fitting	(SUB FOR AT35600) 90°
29	AT62260	1	HYDRAULIC HOSE	889 MM LONG (1-5/8" X 35") (SUB AT66665) (SUB FOR AT46327)
29	AT66665	1	HYDRAULIC HOSE - FABRICATE	889 MM LONG (1-5/8" X 35")
30	T35829	1	Clamp	-
31	R37187	1	ADAPTER FITTING	-
32	19H2020	1	Cap Screw	5/16" X 1/2"
33	AT72404	1	TUBE	RETURN (SUB FOR AT55359)
