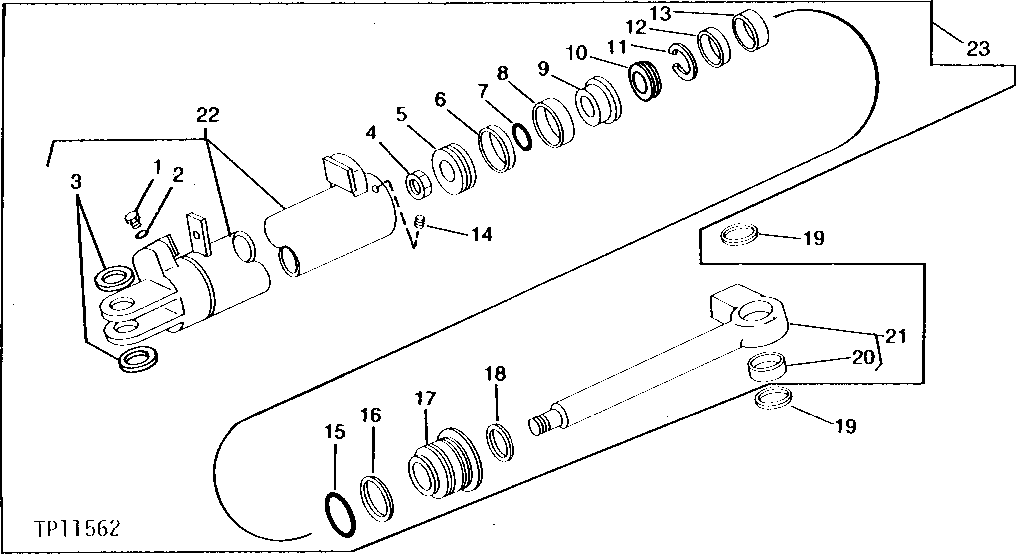

LEFT-HAND BUCKET CYLINDER (SERIAL NO. 273324- ) [03C15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27094	1	Drain Plug	O-RING PORT
2	R26286	1	O-Ring	-
3	T79673	2	WASHER	(USE WITH AR88999 OR AT79501)
4	L2235CU	1	LOCK NUT	-
4	U10750	1	LOCK NUT	-
5	U17224	1	PISTON	-
5	R68341	1	PISTON	-
6	U17225	1	WEAR RING	(A)
7	R29463	1	O-Ring	(A)
7	U10289	1	O-Ring	(A)
8	T37379	1	PACKING	(A) (SUB FOR R72828)
9	U17226	1	PISTON	-
9	R68342	1	PISTON	(SUB R80786, RE14094 AND RE14208)
10	T57199	1	WASHER	-
11	W11229	1	RING	-
12	R76790	1	PACKING	(A) (SUB FOR T35851)
13	U42716	1	WEAR RING	(A)
14	22H1077	1	SET SCREW	1/4" X 5/16"
15	P46765	1	O-RING	(A)
16	R79001	1	Back-Up Ring	(A) (SUB FOR T42552, THIS APPLICATION)
17	U11022	1	SEAL	(A) (SUB R82107)
17	R82107	1	HYDR. CYLINDER ROD GUIDE	(SUB FOR R68338)
18	U11022	1	SEAL	(A) WIPER
19	T48367	2	Seal	DIRT
20	T79443	1	BUSHING	-
21	AR89002	1	ROD	(SUB RE20842, R80786, R82106, RE14094 AND RE14208) (SUB FOR AT56685)
22	RE33228	1	BARREL	(SUB FOR AT46921 AND AT79562)
23	RE33229	1	HYDRAULIC CYLINDER	(SUB FOR AR88999, AT56686 AND AT79501) (ALSO ORDER (2) T48367, (2) AT78641 AND T43358)
..	AR105355	1	HYDRAULIC CYLINDER KIT	REPAIR, (SUB FOR AT55691 AND AR99791)

LEFT-HAND BUCKET CYLINDER (SERIAL NO. 273324- ) [03C15]
