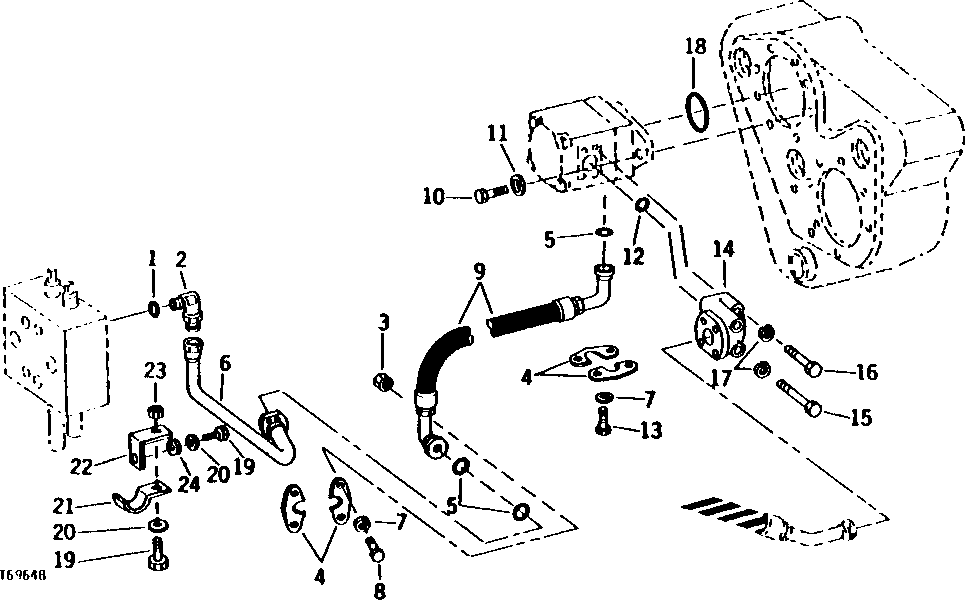

HYDRAULIC PUMP AND DRIVES (SERIAL NO. -325566) [03E03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U13639	1	O-Ring	-
2	X20C5OX-S	1	Elbow Fitting	(SUB FOR AT35600) 90°
3	14H813	4	Nut	7/16"
4	R29867	6	Flange Fitting	-
4	R29867	4	Flange Fitting	-
5	U10289	3	O-Ring	(A) (SUB FOR T72890)
6	AT62075	1	TUBE	(A) PRESSURE, (SUB FOR AT52784)
7	12H293	8	Lock Washer	7/16"
8	19H2227	4	CAP SCREW	7/16" X 2-1/2"
8	19H3205	4	Cap Screw	7/16" X 1-1/2"
9	AT62063	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR AT52783)
10	19H2008	2	Cap Screw	5/8" X 1-5/8"
11	12H294	2	Lock Washer	5/8"
12	F1870R	1	O-Ring	(SUB FOR T72892)
13	19H2500	4	CAP SCREW	7/16" X 1-3/8"
14	T46577	1	FITTING	PUMP INLET
15	19H3550	2	Cap Screw	1/2" X 4"
16	19H1820	2	Cap Screw	1/2" X 3"
17	12H301	4	Lock Washer	1/2"
18	T12275	1	O-Ring	(SUB FOR T12275, THIS APPLICATION)
19	19H3239	2	Cap Screw	(A) 3/8" X 1-1/4"
20	24H1219	2	Washer	(A) 7/16" X 1" X 0.083"
21	T53699	1	CLAMP	(A) TUBE
22	T65521	1	ANGLE	(A)
23	T11234	1	Lock Nut	(A)
24	12H304	1	Lock Washer	3/8"
..	AT66236	1	TUBE	TUBE REPLACEMENT PACKAGE

HYDRAULIC PUMP AND DRIVES (SERIAL NO. -325566) [03E03]
