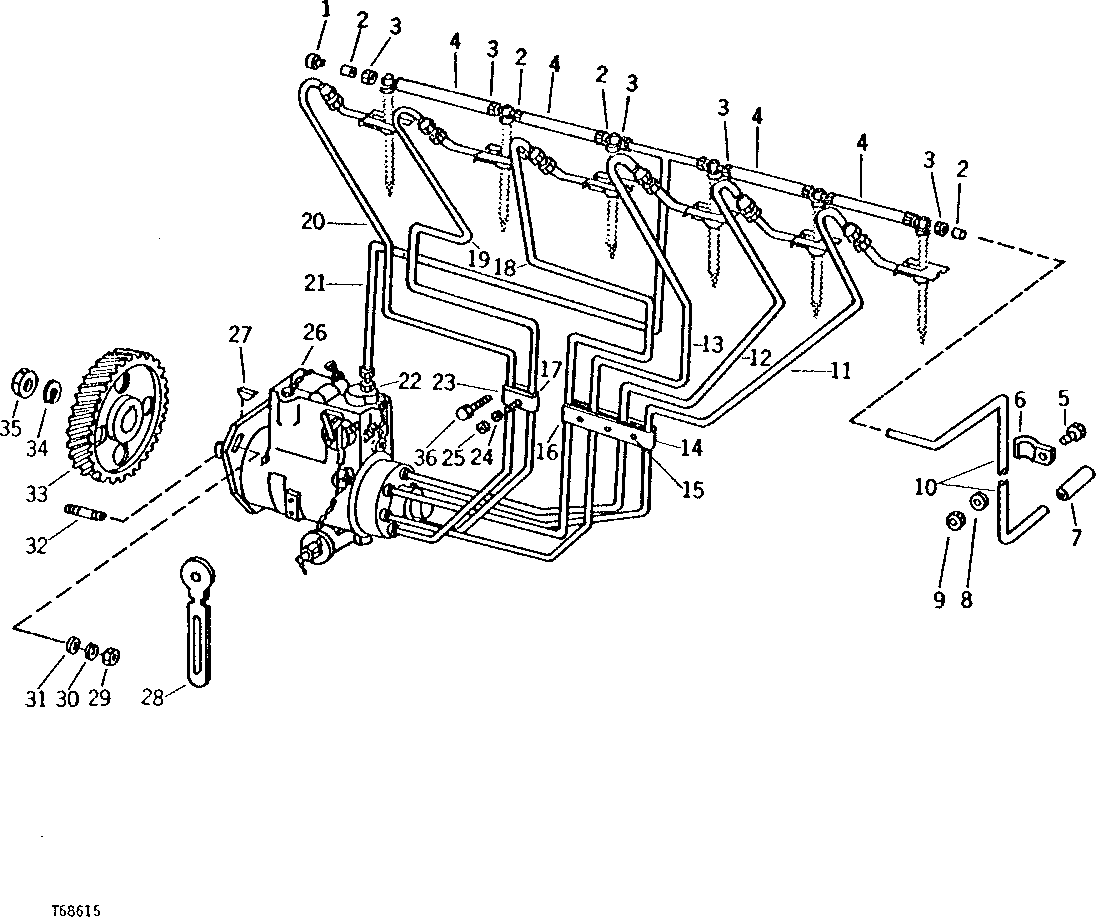

FUEL INJECTION SYSTEM (ENGINE SERIAL NO. 457646-472817) [01I04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	16H475	1	RIVET	7/32" X 1/2"
2	R51936	12	Sealing Washer	-
3	R51937	12	Tube Nut	-
4	R66090	4	Tube	LEAK-OFF
5	19H1648	1	Cap Screw	3/8" X 3/4"
6	R27528	1	CLAMP	-
7	T27466	1	HOSE	-
8	12H304	1	Lock Washer	3/8"
9	14H812	1	NUT	3/8"
10	R66092	1	FUEL LINE	LEAK-OFF
11	AR66279	1	FUEL LINE	NO. 6
12	AR66278	1	FUEL LINE	NO. 5
13	AR66277	1	FUEL LINE	NO. 4
14	T23462	1	CLAMP	(SUB R59300, R61146, (2) R59299 AND (3) AR76704)
14	R59300	1	STRAP	-
14	R59299	1	CLAMP	-
15	12H246	3	LOCK WASHER	0.190", (USE WITH T23462 AND T23463)
15	21H1317	3	SCREW	0.190" X 5/8", (USE WITH T23462 AND T23463)
15	AR76704	3	SCREW	SPECIAL CAP, WITH WASHER
16	T23463	1	STRAP	(SUB R59300, R61146, (2) R59299 AND (3) AR76704)
16	R59299	1	CLAMP	-
16	R61146	1	STRAP	-
17	R61144	1	Strap	-
17	R58186	1	Clamp	-
17	AR53461	1	CLAMP	WITH STUD, (SUB R59305, R61144, AR76704 AND (2) R58186)
18	AR66276	1	FUEL LINE	NO. 3
19	AR66275	1	FUEL LINE	NO. 2
20	AR66274	1	FUEL LINE	NO. 1
21	AR85615	1	Line	LEAK-OFF
22	R35352	1	Fitting	-
23	-	1	Part 31	(SUB R59305, R61144, AR76704 AND (2) R58186) ( R49629 NO LONGER AVAILABLE)
23	R58186	1	Clamp	-
23	R59305	1	Strap	-
24	12H302	1	Lock Washer	1/4", (USE WITH AR53461)
25	14H786	1	Nut	1/4", (USE WITH AR53461)
26	AR73505	1	FUEL INJECTION PUMP	(SUB RE21152) (ROOSA-MASTER NO. DM4627MD2916)
26	RE21152	1	FUEL INJECTION PUMP	-
27	M114270	1	Shaft Key	(SUB FOR R56424)
28	T50700	1	LEVER	-
29	14H785	3	Nut	5/16"
30	12H303	3	Lock Washer	5/16"
31	24H1136	3	Washer	11/32" X 11/16" X 0.065"
32	R56055	3	STUD	-
33	R56056	1	GEAR	(48 TEETH)
34	R56423	1	Washer	-
35	R56422	1	NUT	-
36	AR76704	1	SCREW	SPECIAL CAP, WITH WASHER
