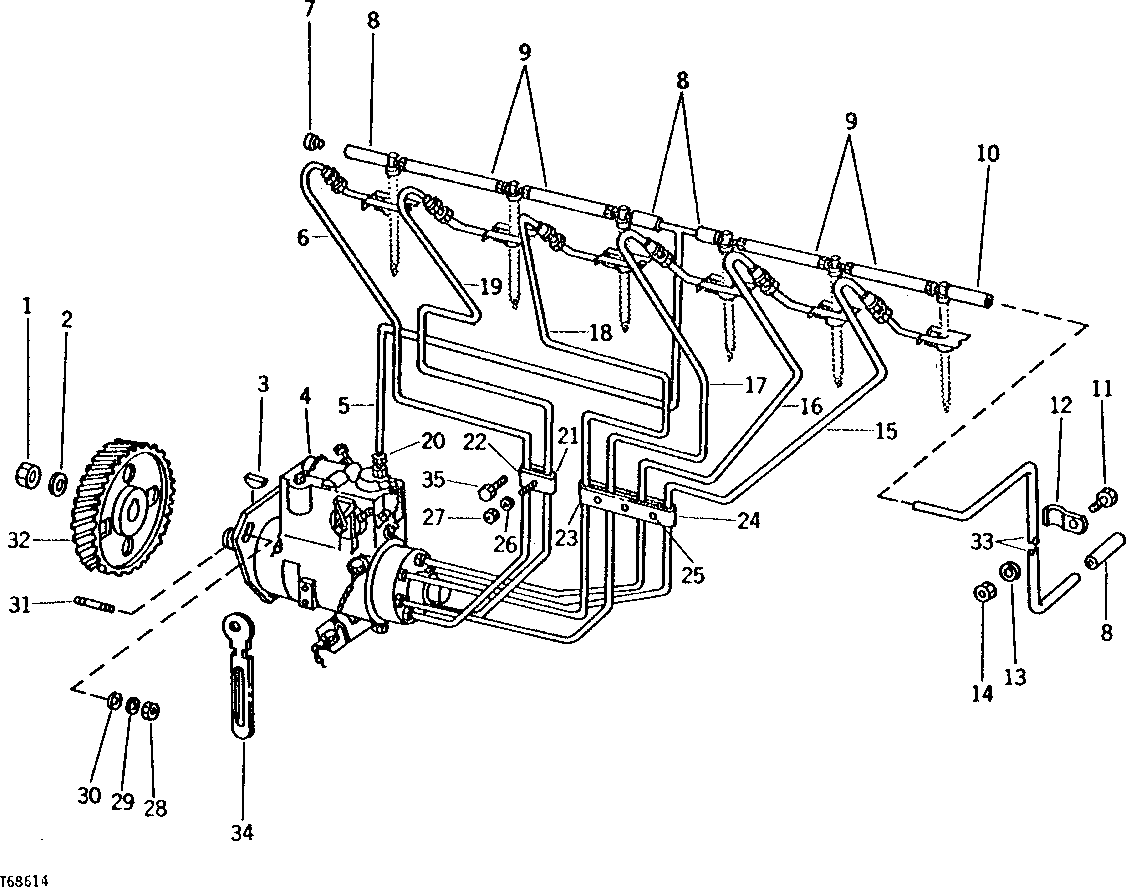

FUEL INJECTION SYSTEM (ENGINE SERIAL NO. -457645) [01I02]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R56422	1	NUT	-
2	R56423	1	Washer	-
3	M114270	1	Shaft Key	(SUB FOR R56424)
4	AR73505	1	FUEL INJECTION PUMP	(SUB RE21152) (ROOSA-MASTER NO. DM4627MD2916)
4	RE21152	1	FUEL INJECTION PUMP	-
4	SE500631	1	FUEL INJECTION PUMP	(REMANUFACTURED FOR AR73505)
4	SE500632	1	FUEL INJECTION PUMP	(REMANUFACTURED FOR RE21152)
5	AR65872	1	LINE	LEAK-OFF
6	AR66274	1	FUEL LINE	INJECTION NO. 1
7	16H475	1	RIVET	7/32" X 1/2"
8	-	4	Part 11	LEAK-OFF (MAKE FROM R68281, 1 524 MM (5') HOSE) (SUB FOR AT32064)
9	-	4	Part 12	(MAKE FROM R68281, 1 524 MM (5') HOSE) (SUB FOR AT32064)
10	R60600	1	HYDRAULIC HOSE	LEAK-OFF LINE, 10 MM X 76 MM (13/32" X 3")
11	19H1648	1	Cap Screw	3/8" X 3/4"
12	R27528	1	CLAMP	-
13	12H304	1	Lock Washer	3/8"
14	14H812	1	NUT	3/8"
15	AR66279	1	FUEL LINE	NO. 6
16	AR66278	1	FUEL LINE	NO. 5
17	AR66277	1	FUEL LINE	NO. 4
18	AR66276	1	FUEL LINE	NO. 3
19	AR66275	1	FUEL LINE	NO. 2
20	R35352	1	Fitting	-
21	R61144	1	Strap	-
21	R58186	1	Clamp	-
21	AR53461	1	CLAMP	WITH STUD, (SUB R59305, R61144, AR76704 AND (2) R58186)
22	-	1	Part 27	(SUB R59305, R61144, AR76704 AND (2) R58186) ( R49629 NO LONGER AVAILABLE)
22	R58186	1	Clamp	-
22	R59305	1	Strap	-
23	T23463	1	STRAP	(SUB R59300, R61146, (2) R59299 AND (3) AR76704)
23	R59299	1	CLAMP	-
23	R61146	1	STRAP	-
24	T23462	1	CLAMP	(SUB R59300, R61146, (2) R59299 AND (3) AR76704)
24	R59299	1	CLAMP	-
24	R59300	1	STRAP	-
25	21H1317	3	SCREW	0.190" X 5/8", (USE WITH T23462 AND T23463)
25	AR76704	3	SCREW	SPECIAL CAP WITH WASHER
25	12H246	3	LOCK WASHER	0.190", (USE WITH T23462 AND T23463)
26	12H302	1	Lock Washer	1/4", (USE WITH AR53461)
27	14H786	1	Nut	1/4", (USE WITH AR53461)
28	14H785	3	Nut	5/16"
29	12H303	3	Lock Washer	5/16"
30	24H1136	3	Washer	11/32" X 11/16" X 0.065"
31	R56055	3	STUD	-
32	R56056	1	GEAR	(48 TEETH)
33	R60597	1	FUEL LINE	-
34	T50700	1	LEVER	-
35	AR76704	1	SCREW	SPECIAL CAP WITH WASHER

FUEL INJECTION SYSTEM (ENGINE SERIAL NO. -457645) [01I02]
