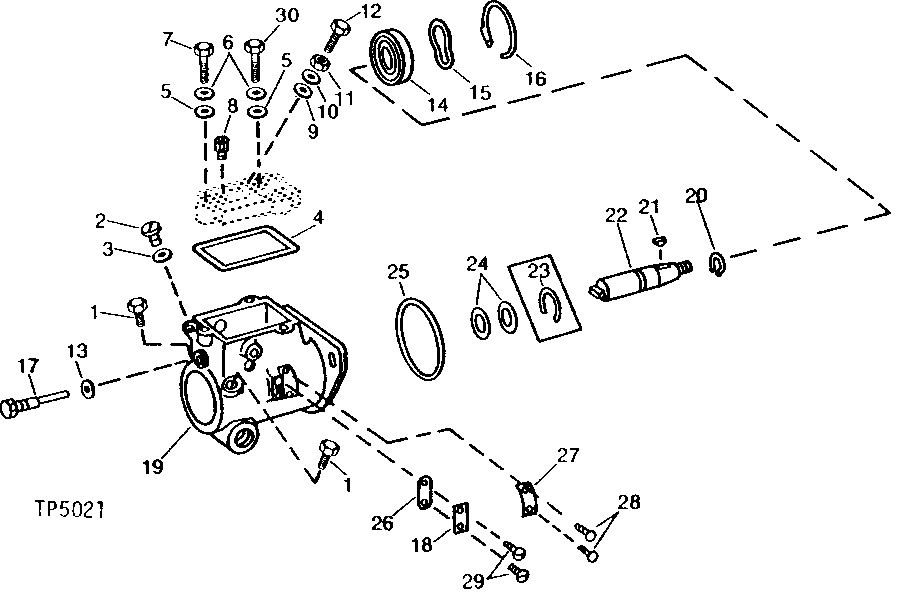

FUEL INJECTION PUMP HOUSING AND DRIVE GROUP (ROOSA-MASTER NO. DM4627MD2916) [01I14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R30714	2	BOLT	-
2	T11930	1	SCREW	TORQUE HOLE
3	T11878	1	WASHER	-
4	T11918	1	GASKET	(A) GOVERNOR HOUSING COVER
5	T15715	3	WASHER	-
6	12H295	3	Lock Washer	0.190"
7	T15721	1	SCREW	-
8	R36535	1	CHECK VALVE	WITH CHECK VALVE
9	R34812	1	O-Ring	(SUB FOR T17951 AND T11906)
10	T17947	1	WASHER	-
11	T11921	1	NUT	-
12	T17953	1	CAP SCREW	LOW IDLE ADJUSTMENT
13	T11943	1	WASHER	(A) GUIDE STUD
14	AR69427	1	BALL BEARING	-
15	R54235	1	WASHER	DRIVE SHAFT SPRING
16	R54230	1	RING	RETAINER
17	T11923	1	STUD	GUIDE
18	T11882	1	COVER	TIMING WINDOW
19	AR69428	1	HOUSING	PUMP
20	R57796	1	SNAP RING	-
21	M114270	1	Shaft Key	(SUB FOR R56424)
22	R57797	1	DRIVE SHAFT	-
23	R54225	1	Ring	SEAL RETAINING (NO LONGER AVAILABLE)
24	AR72052	2	SEAL	(A) DRIVE SHAFT
25	R54229	1	SEAL	(A) PUMP FLANGE
26	T11883	1	GASKET	(A) TIMING WINDOW COVER
27	T11875	1	IDENTIFICATION PLATE	-
28	T11876	2	SCREW	-
29	R54260	2	SCREW	TIMING WINDOW COVER
30	R71851	2	SCREW	-
..	AR63029	1	GASKET KIT	GASKET OVERHAUL

FUEL INJECTION PUMP HOUSING AND DRIVE GROUP (ROOSA-MASTER NO. DM4627MD2916) [01I14]

Нет текстового описания
