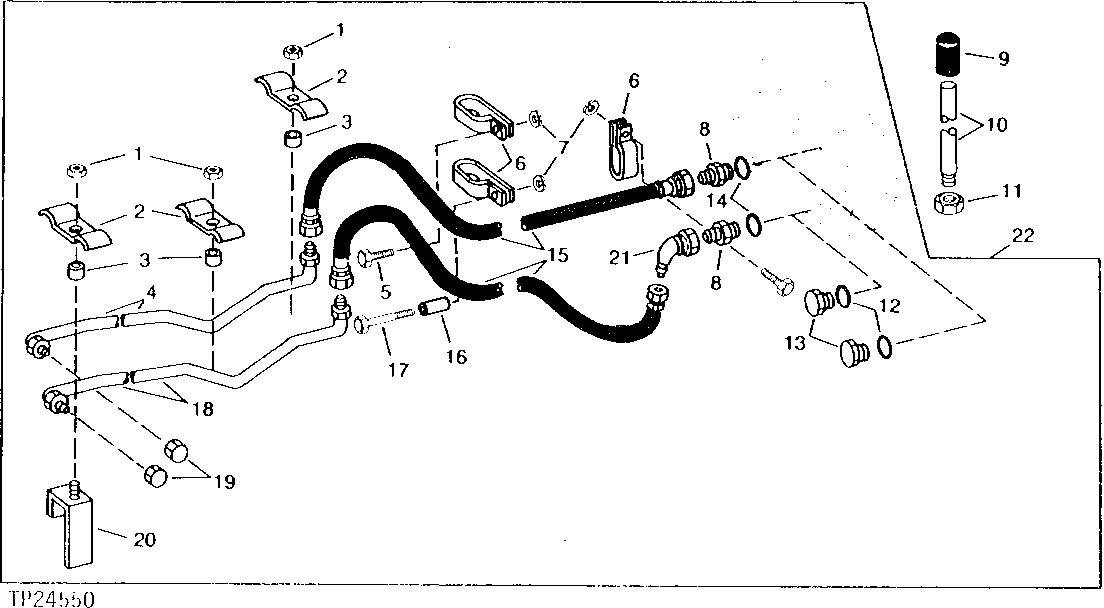

FRONT AUXILIARY HYDRAULIC LINES (USE WITH AT53293 MULTI-PURPOSE BUCKET) [03D02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	E50102	3	Lock Nut	(SUB FOR C744DN OR (3) M63440)
2	T38967	3	CLAMP	(SUB FOR U13055, THIS APPLICATION)
3	28H2481	3	Spacer	3/8" X 1/2", (SUB FOR T49842)
4	AT48530	1	OIL LINE	OUTER (TO MULTI-PURPOSE BUCKET CYLINDER HOSES)
5	19H2676	2	Cap Screw	3/8" X 1"
6	AH77869	3	Clip	DOUBLE, INSULATED
7	12H304	3	Lock Washer	3/8"
8	T27603	2	Fitting	REDUCING
9	T37058	1	GRIP	(SUB FOR AP17808, THIS APPLICATION)
9	-	1	Part 10	(TO HOLD GRIP ON AUXILIARY LEVER)
10	T120386	1	ROD	(SUB FOR T48087) (ALSO ORDER T37058)
11	14H821	1	Nut	5/8"
12	R29936	2	O-Ring	(USE WHEN NOT EQUIPPED WITH AUXILIARY EQUIPMENT)
13	R36636	2	Drain Plug	(USE WHEN NOT EQUIPPED WITH AUXILIARY EQUIPMENT)
14	R29936	2	O-Ring	-
15	AE30500	2	HYDRAULIC HOSE - FABRICATE	CONTROL VALVE TO BOOM 2 769 MM LONG (1-1/16" X 109")
16	H87206	1	Spacer	-
17	19H3404	1	Cap Screw	3/8" X 4"
18	AT48529	1	OIL LINE	INNER (TO MULTI-PURPOSE BUCKET CYLINDER HOSES)
19	T29439	2	Fitting	(SUB FOR T49843)
20	AT64386	1	BRACKET	-
21	R37145	1	Elbow Fitting	-
22	-	1	Part 23	(ALSO INCLUDES T67567 LABEL) (SUB FOR AT53957) (SUB AT79810) (AT64387 NO LONGER AVAILABLE)

FRONT AUXILIARY HYDRAULIC LINES (USE WITH AT53293 MULTI-PURPOSE BUCKET) [03D02]
