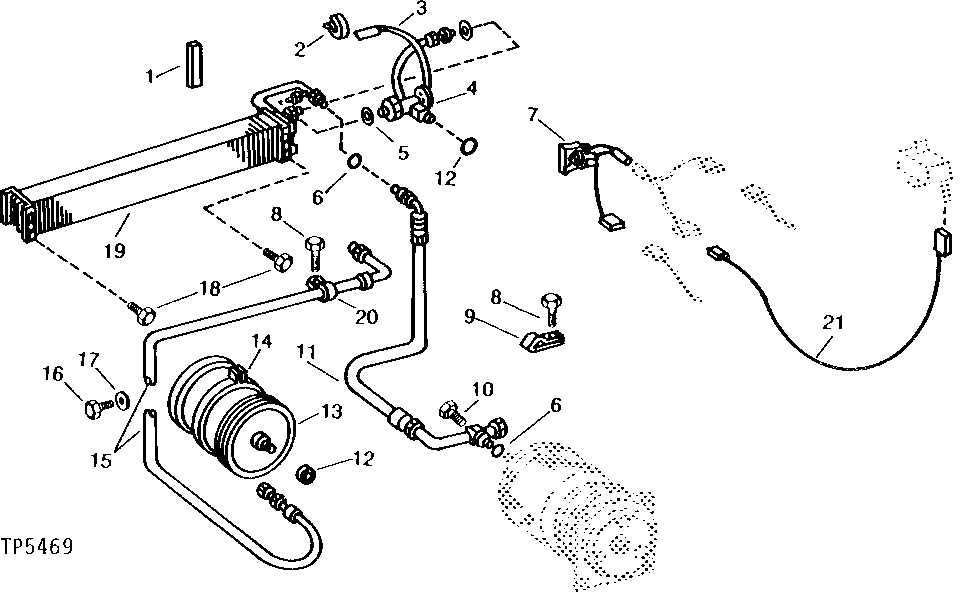

EVAPORATOR AND RECEIVER DEHYDRATOR WITH REFRIGERANT LINES (SERIAL NO. 307632- ) [02J05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	114 MM LONG (4-1/2") (MAKE FROM AT56771 BULK MATERIAL, CUT TO LENGTH)
2	R66645	1	CLIP	(SUB FOR R50480)
3	R34812	1	O-Ring	-
4	AT62543	1	THERMOSTATIC CONTROL VALVE	EXPANSION, (SUB FOR AR58482)
5	P51212	1	O-Ring	-
6	R33259	2	O-Ring	-
7	AR55214	1	THERMOSTAT	AIR CONDITIONING HIGH TEMPERATURE
8	19H1648	4	Cap Screw	3/8" X 3/4"
9	AH77869	1	Clip	(SUB FOR H29684) DOUBLE TUBE
10	19H2959	1	Cap Screw	3/8" X 2"
11	AT59209	1	LINE	REFRIGERANT
12	R10093	2	O-Ring	-
13	AR74486	1	RECEIVER	DEHYDRATOR
14	R53422	1	Clamp	-
15	AT59204	1	HYDRAULIC HOSE	REFRIGERANT
16	19H3031	1	Cap Screw	3/8" X 2-1/2"
17	28H1495	1	Spacer	PIPE, 3/8" X 1"
18	37H49	6	Screw	DRIVE, NO. 10 X 1/2"
19	AT82061	1	EVAPORATOR	(SUB FOR AT49927)
20	A4773R	3	Clamp	-
21	AT68301	1	WIRING LEAD	-
..	TY15709	1	TAPE	(SUB FOR R57003)

EVAPORATOR AND RECEIVER DEHYDRATOR WITH REFRIGERANT LINES (SERIAL NO. 307632- ) [02J05]
