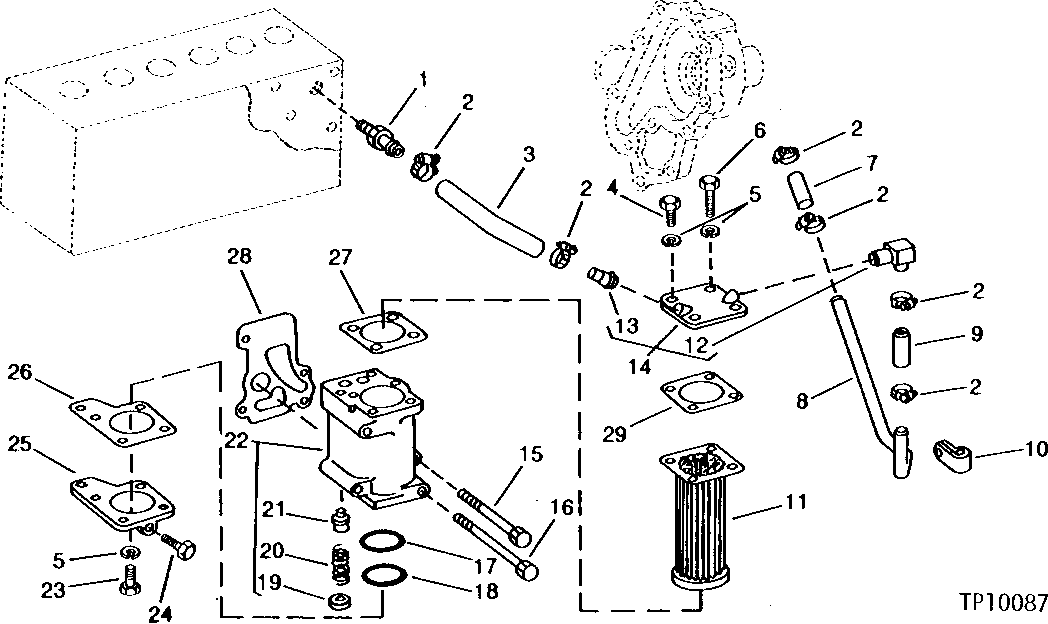

ENGINE OIL COOLER AND OIL COOLER LINES [01J03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R39503	1	Fitting	-
2	AR21839	6	Clamp	-
3	R54826	1	Hose	19 MM X 102 MM LONG (3/4" X 4")
4	19H2633	3	Cap Screw	3/8" X 1-1/2"
5	12H304	9	Lock Washer	3/8"
6	19H3065	1	Cap Screw	3/8" X 2"
7	-	1	Part 7	(MAKE FROM R57300 BULK MATERIAL, CUT TO LENGTH) (SUB FOR R26905)
8	R60961	1	Tube	(OIL COOLER COVER TO WATER PUMP)
9	-	1	Part 9	(MAKE FROM R57300 BULK MATERIAL, CUT TO LENGTH) (SUB FOR R26905)
10	T24959	1	Clamp	-
11	RE31286	1	Oil Cooler	(SUB FOR AR66405) (ALSO ORDER (3) 19H2633 AND 19H1801)
12	AR26732	1	Elbow Fitting	-
13	R34985	1	Line	-
14	AR66406	1	Cover	UPPER, (MARKED R56195)
15	19H2104	2	Cap Screw	3/8" X 5"
16	19H2562	2	CAP SCREW	3/8" X 5-3/4"
17	R56192	1	O-Ring	-
18	R56193	1	O-Ring	-
19	R54817	1	WASHER	(BUSHING) (USE WITH AR66404)
19	-	1	Part 20	(SUB AR103164)
20	R43548	1	Spring	(USE WITH AR66404)
20	R46625	1	SPRING	(USE WITH AR103164)
21	R57740	1	FLOW CONTROL HYD. VALVE	BYPASS (USE WITH AR66404)
21	R73139	1	Flow Control Hyd. Valve	(USE WITH AR103164)
22	AR66404	1	HOUSING	(MARKED R56191) (SUB AR103164 AND R76243)
22	AR103164	1	HOUSING	(MARKED R76240)
23	19H3483	5	Cap Screw	3/8" X 1-1/8"
24	R42852	1	Pipe Plug	-
25	R56197	1	Cover	LOWER
26	R56198	1	GASKET	-
27	R56194	1	GASKET	-
28	R54821	1	GASKET	(USE WITH AR66404)
28	R76243	1	GASKET	(USE WITH AR103164)
29	R79551	1	GASKET	(SUB FOR R56194, THIS APPLICATION)

ENGINE OIL COOLER AND OIL COOLER LINES [01J03]
