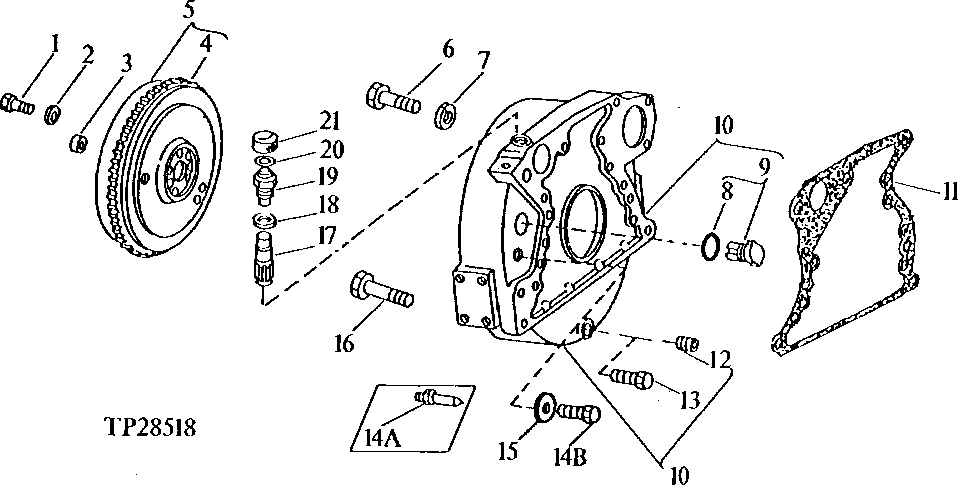

ENGINE FLYWHEEL AND FLYWHEEL HOUSING [01J24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2993	4	Cap Screw	HS, SAE 8, 1/2" X 1-1/2", (ALSO ORDER (4) T23891) (SUB FOR R58253, THIS APPLICATION)
2	T23891	4	Washer	-
3	JD9211	1	BALL BEARING	-
4	R28811	1	Ring Gear	(129 TEETH)
5	RE24448	1	FLYWHEEL	(SUB FOR AT25473 AND RE19083)
6	19H3385	8	Cap Screw	1/2" X 1-1/8"
7	12H304	8	Lock Washer	3/8"
8	R27149	1	O-Ring	-
9	AR61533	1	Plug	-
10	R58190	1	HOUSING	-
10	RE38348	1	Housing	(MARKED R98778 OR R120034) (SUB FOR AR89606)
11	R70483	1	GASKET	(SUB FOR R49516, THIS APPLICATION)
12	15H561	1	Pipe Plug	1/2"
13	AT63089	1	Drain Plug	-
15	T20168	1	Washer	-
16	19H2599	4	Cap Screw	5/8" X 2-1/2"
17	T22536	1	Gear	TACHOMETER DRIVE
18	T13213	1	WASHER	(SUB FOR H1058R, THIS APPLICATION)
19	T22537	1	Fitting	-
20	B3285R	1	Washer	-
21	B3362R	1	Cap	-
14A	T20090	1	SCREW	SPECIAL TIMING HOLE, (SUB 19H2351)
14B	19H2351	1	Cap Screw	1/2" X 1/2"

ENGINE FLYWHEEL AND FLYWHEEL HOUSING [01J24]
