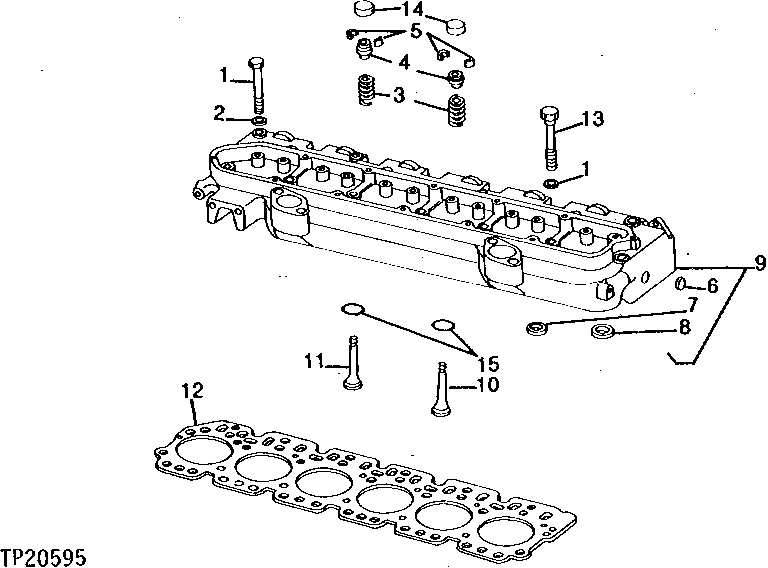

CYLINDER HEAD, HEAD GASKET AND VALVES [01H23]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T20168	26	Washer	(DO NOT USE WITH R85363)
2	R53223	20	CAP SCREW	1/2" X 4-1/4" (USE WITH RE19127 AND RE19876 SHORT BLOCK)
2	R85363	20	Cap Screw	(SUB FOR R78558) 1/2" X 4-1/2" (USE WITH RE25612 AND RE31657 SHORT BLOCKS)
3	R26125	12	Spring	-
4	RE11410	12	Rotator	(SUB FOR AR41006, THIS APPLICATION)
5	T20077	24	Retainer	-
6	A3910R	1	PLUG	-
6	CD16284	1	Plug	-
7	R51734	6	VALVE SEAT INSERT	EXHAUST
8	R57079	6	VALVE SEAT INSERT	INTAKE, (SUB R73064 AND R83071)
8	R73064	6	VALVE SEAT INSERT	INTAKE
9	AR73979	1	CYLINDER HEAD	(MARKED R61035) (SUB RE56303)
10	R79624	6	EXHAUST VALVE	STANDARD STEM, (SUB FOR R52252)
10	-	6	Part 16	( R79627 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE STEM, (SUB FOR R57337)
10	R79626	6	EXHAUST VALVE	0.38 MM (.015") OVERSIZE STEM, (SUB FOR R57335)
10	R79625	6	EXHAUST VALVE	0.08 MM (.003") OVERSIZE STEM, (SUB FOR R57333)
11	R51735	6	INTAKE VALVE	STANDARD STEM, (SUB R83071 AND R73064)
11	R83071	6	INTAKE VALVE	STANDARD STEM, (SUB FOR R72611)
11	R89223	6	INTAKE VALVE	0.08 MM (.003") OVERSIZE STEM, (SUB FOR R76538) (SUB FOR R57426, THIS APPLICATION) (SUB FOR R88174) (ALSO ORDER R87627)
11	R89224	6	INTAKE VALVE	0.38 MM (.015") OVERSIZE STEM, (SUB FOR R76540) (SUB FOR R57427, THIS APPLICATION) (SUB FOR R88175) (ALSO ORDER R87627)
11	-	6	Part 21	( R89225 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE STEM, (SUB FOR R76542) (SUB FOR R57428, THIS APPLICATION) (SUB FOR R88176) (ALSO ORDER R87627)
12	R91880	1	GASKET	(SUB FOR R59449 AND R80243)
13	R85363	6	Cap Screw	(SUB FOR T20182 AND R78558) 1/2" X 4-1/2" (USE WITH RE19127, RE19876, RE25612 AND RE31657 SHORT BLOCKS)
14	T20129	12	Cap	-
15	R87627	1	O-RING	(SUB FOR R27976, THIS APPLICATION)

CYLINDER HEAD, HEAD GASKET AND VALVES [01H23]

Нет текстового описания
