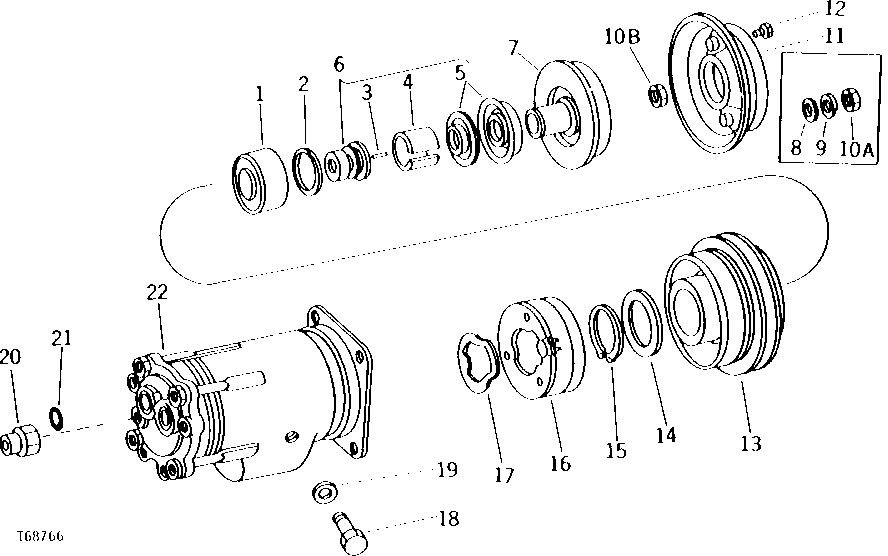

COMPRESSOR COIL, CLUTCH AND PULLEY (SERIAL NO. -307631) [02I23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR71288	1	BALL BEARING	-
2	R47226	1	SNAP RING	RETAINING
3	R47229	1	SHAFT KEY	-
4	R47227	1	SEAL	-
5	AR71289	1	SHIELD	FRONT
6	AR71285	1	Valve Kit	COMPRESSOR SHAFT SEAL WITH PULLEY BEARING FRONT SHIELD
7	AR71286	1	CLUTCH	WITH DUST COVER
8	R47230	1	WASHER	(SUB R69297, THIS APPLICATION)
9	R47231	1	SNAP RING	(SUB R69297, THIS APPLICATION)
11	AR71290	1	COVER	DUST
12	37H42	3	SCREW	DRIVE, NO. 10 X 3/8"
13	AR71287	1	PULLEY	WITH BEARING AND SHIELDS
14	R54766	1	WASHER	REAR
15	R47224	1	SNAP RING	RETAINING
16	AT53175	1	ELECTRICAL COIL	-
17	R56246	1	GASKET	-
18	R47233	1	PLUG	-
19	R47234	1	WASHER	-
20	AR49808	1	VALVE	PRESSURE RELIEF
21	R47235	2	O-RING	-
22	AT49489	1	COMPRESSOR	(WITHOUT CLUTCH, COIL, AND PULLEY) (ALSO INCLUDES R49856) (SUB TY6666 OR TY6665, (3) 19M7139, (2) 19M7167, 19M8600 AND 24M7036)
22	SE501456	1	COMPRESSOR	(REMANUFACTURED FOR TY6665)
22	SE501473	1	COMPRESSOR	(REMANUFACTURED FOR TY6666)
10A	R47232	1	NUT	(SUB R69297)
10B	R69297	1	FLANGE NUT	-

COMPRESSOR COIL, CLUTCH AND PULLEY (SERIAL NO. -307631) [02I23]
