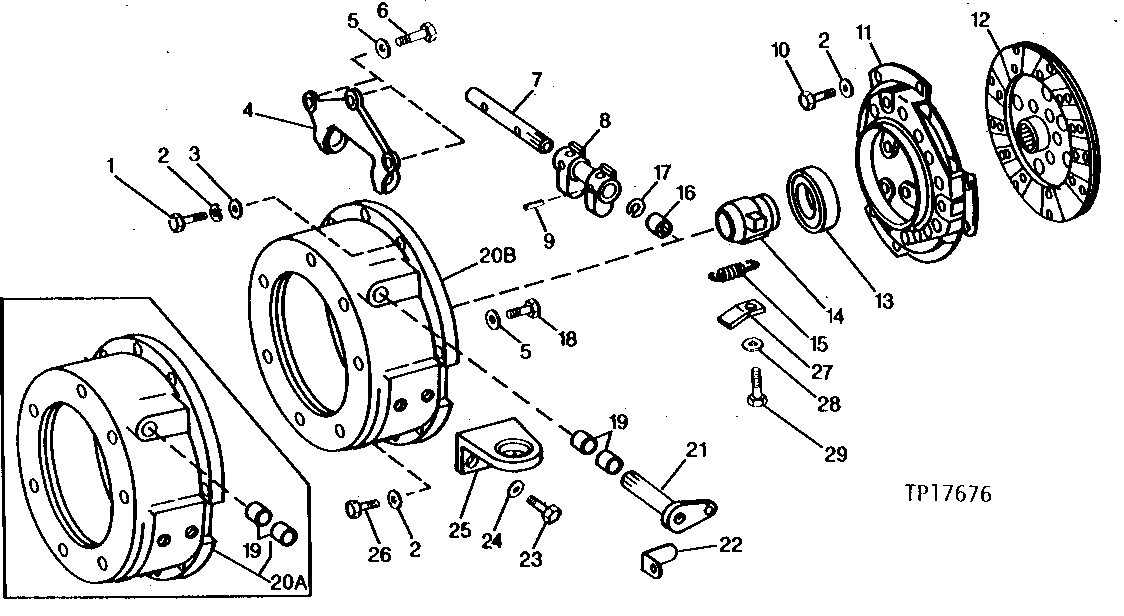

CLUTCH HOUSING AND TRANSMISSION DISCONNECT [01G15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2633	2	Cap Screw	3/8" X 1-1/2"
2	12H304	15	Lock Washer	3/8"
3	24H1781	2	Washer	13/32" X 7/8" X 1/4"
4	AT49470	1	SUPPORT	CLUTCH FORK
5	12H301	7	Lock Washer	1/2"
6	19H2644	3	Cap Screw	1/2" X 2-1/2"
7	T50882	1	SHAFT	CLUTCH FORK
8	T21999	1	FORK	CLUTCH
9	34H353	2	SPRING PIN	3/8" X 1-3/4"
10	T20843	6	CAP SCREW	-
11	AT46949	1	PLATE	(SUB AT63303)
11	AT63303	1	CLUTCH PLATE	-
12	AT141798	1	DISK	(SUB FOR AT53410 AND AT113417)
13	AR43065	1	THRUST BEARING	-
14	T48408	1	PLANET PINION CARRIER	-
15	T25530	1	Spring	-
16	T50881	1	SPLINED COUPLING	-
17	R46205	1	Ring	(SUB FOR H23824)
18	19H2735	4	Cap Screw	1/2" X 2"
19	T37674	2	BUSHING	-
21	AT49469	1	SHAFT	CLUTCH
22	T50879	1	ANGLE	ATTACHES TO SPLITTER HOUSING
23	19H2710	4	Cap Screw	HS, SAE 8, 5/8" X 1-3/4"
24	T497T	4	WASHER	-
25	T48407	2	SUPPORT	CLUTCH HOUSING
26	19H3239	7	Cap Screw	3/8" X 1-1/4"
27	T55770	1	CLIP	-
28	19H1227	1	Cap Screw	1/4" X 1/2"
29	24H1287	1	Washer	9/32" X 5/8" X 0.065"
20A	AT47517	1	HOUSING	(MARKED T48406 OR T60466) (SUB T60466 AND (2) T37674)
20B	T60466	1	HOUSING	-

CLUTCH HOUSING AND TRANSMISSION DISCONNECT [01G15]
