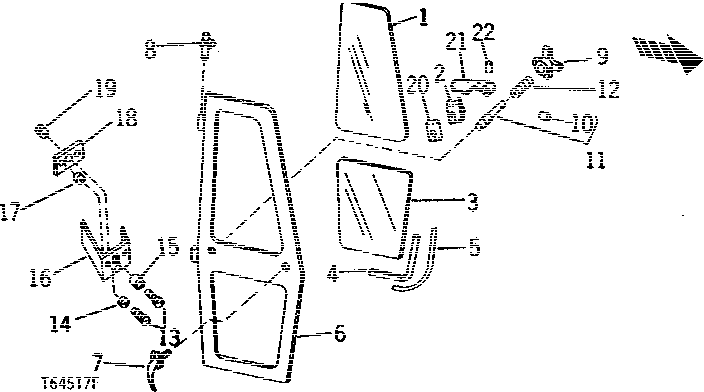

CAB DOOR (SERIAL NO. -307631) [02H09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T55142	1	WINDOWPANE	(A) (C) UPPER DOOR
2	AR52291	1	LATCH	(A) RIGHT DOOR (ILLUSTRATED) (SUB AT58890, AT58889, T61355 AND 34H262, THIS APPLICATION)
2	AT58890	1	LATCH	(A) RIGHT DOOR (ILLUSTRATED)
2	AR52771	1	LATCH	(C) LEFT DOOR, (SUB AT58888, AT58889, T61355 AND 34H262, THIS APPLICATION)
2	AT58888	1	LATCH	(C) LEFT DOOR
3	T55143	1	WINDOWPANE	(A) (C) LOWER DOOR
4	-	1	Part 7	2 235 MM (88") REQUIRED FOR TOP WINDOW 1 981 MM (78") REQUIRED FOR BOTTOM WINDOW (MAKE FROM T71383) (SUB FOR T54733)
5	T54734	1	ISOLATOR	(A) (C) FILLER, 3 760 MM BULK, 8 229 MM (336") REQUIRED
6	-	1	Part 9	(SUB AT52983 OR AT52984)
7	AT56586	1	HANDLE	(A) (C) L.H. (SUB FOR AR55154, THIS APPLICATION) (SUB AT58889, AT58888, T61355 AND 34H262)
7	AT56587	1	HANDLE	(A) (C) R.H. (SUB FOR AR55154, THIS APPLICATION) (SUB AT58889, AT58890, T61355 AND 34H262)
7	AT58889	1	HANDLE	(A) (C)
8	AT54803	1	PIN FASTENER	-
9	T30870	1	KNOB	-
10	34H249	1	Spring Pin	1/8" X 7/8"
11	AT33073	1	SCREW	-
12	U44277	1	SPRING	-
13	21H1303	3	Screw	1/4" X 3/4", MACH.
14	24H1288	2	Washer	9/32" X 1" X 1/16"
15	T101090	1	BUMPER	(SUB FOR R44434) RUBBER
16	T55647	1	COVER	BRACKET
17	12H356	2	Lock Washer	1/4", (SUB FOR T30894)
18	AT29835	1	PLATE	-
19	14H786	1	Nut	1/4"
20	T61356	1	SHIM	(A) (C) 0.13 MM (.005")
21	T61355	1	HANDLE	(A) (C) FLIPPER
22	34H262	1	Spring Pin	(A) (C) 5/32" X 3/4"
..	AT52984	1	DOOR	R.H.
..	AT52983	1	DOOR	L.H.
