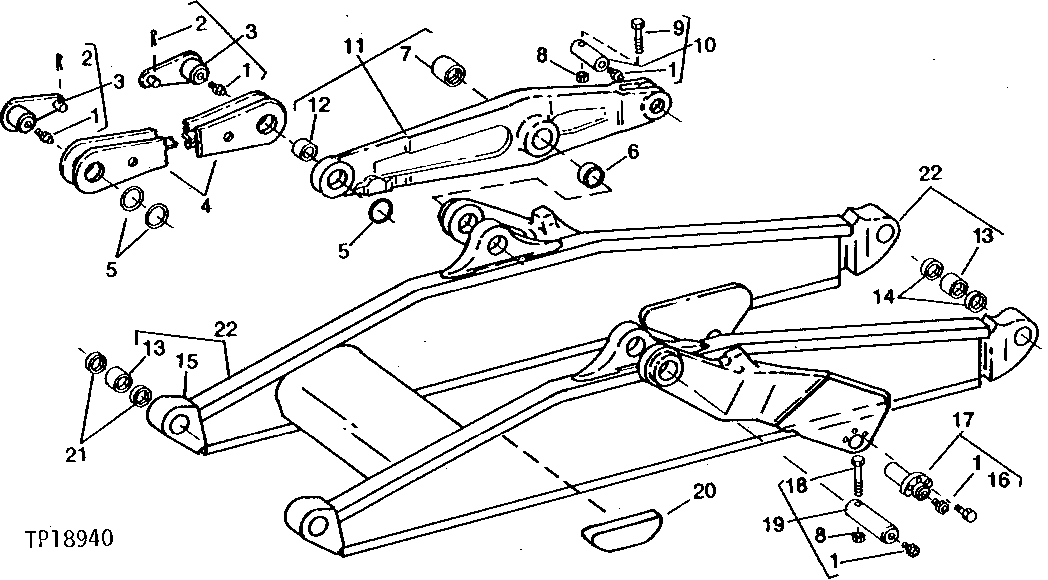

BOOM AND LIFT ARMS (SERIAL NO. 325567- ) [03C07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7759	10	Lubrication Fitting	STRAIGHT, 1/8"
2	11H255	4	COTTER PIN	5/16" X 2"
3	AT60923	4	PIN	(LINK TO BELLCRANK AND LINK TO BUCKET) (SUB FOR AT52027)
4	AT60922	2	LINK	(SUB FOR AT52026)
5	T50068	8	O-RING	DIRT
6	T50067	4	SEAL	DIRT
7	T50066	2	BUSHING	-
8	BP12214	4	Lock Nut	1/2"
9	19H3136	2	Cap Screw	HS, SAE 8, 1/2" X 5-3/4"
10	AT78641	2	PIN FASTENER	(BELLCRANK TO TILT CYLINDER) (SUB FOR AT48748)
11	AT61631	1	LEVER	R.H. (SUB FOR T54074)
11	AT61632	1	LEVER	L.H. (SUB FOR T54075)
12	T54081	2	Bushing	-
13	T82143	4	BUSHING	(SUB FOR T50063, T71548 AND T79442)
14	U45230	4	SEAL	(SUB FOR T48357) DIRT (BOOM PIVOT BUSHINGS)
15	T50050	2	PLATE	(FRONT CONNECTOR) (NOT FINISHED BORED) (MUST BE LINED BORED AFTER WELDING TO BOOM)
16	19H2898	6	Cap Screw	1/2" X 1-1/4"
17	-	2	Part 18	(LIFT CYLINDER TO LIFT ARMS) (AT48747 NO LONGER AVAILABLE) (SUB JD7759 LUBRICATION FITTING, T105151 PIN, T48741 LOCK AND (3) 19H3299 CAPSCREWS)
18	19H3535	2	Cap Screw	1/2" X 6"
19	AT61630	2	PIN FASTENER	-
20	T53718	1	PLATE	-
21	U45230	4	SEAL	WIPER (BUCKET PIVOT BUSHINGS)
22	AT68553	1	LOADER BOOM	(SUB FOR AT62799)

BOOM AND LIFT ARMS (SERIAL NO. 325567- ) [03C07]
