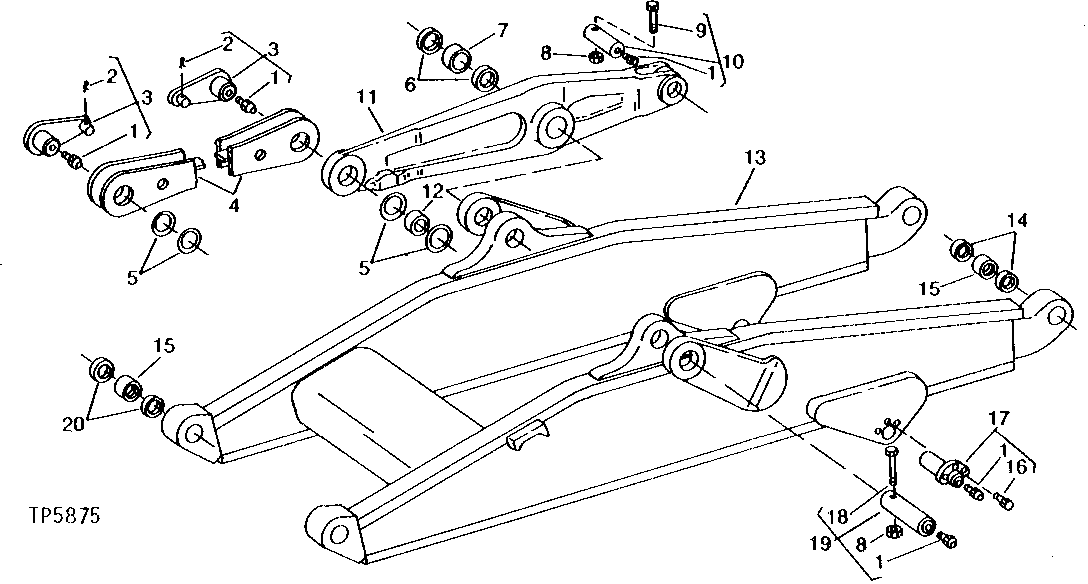

BOOM AND LIFT ARMS (SERIAL NO. -325566) [03C06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7759	10	Lubrication Fitting	STRAIGHT, 1/8"
2	11H255	4	COTTER PIN	5/16" X 2"
3	AT52027	4	PIN FASTENER	(LINK TO BELLCRANK AND LINK TO BUCKET) (SUB AT60923)
4	AT52026	2	LINK	(SUB AT60922)
5	T50068	8	O-RING	DIRT
6	T50067	4	SEAL	DIRT
7	T50066	2	BUSHING	-
8	BP12214	4	Lock Nut	1/2"
9	19H3136	2	Cap Screw	HS, SAE 8, 1/2" X 5-3/4"
10	AT78641	2	PIN FASTENER	(BELLCRANK TO TILT CYLINDER) (SUB FOR AT48748)
11	AT61631	1	LEVER	R.H. (SUB FOR T54074)
11	AT61632	1	LEVER	L.H. (SUB FOR T54075)
12	T54081	2	Bushing	-
13	AT48636	1	LOADER BOOM	(SUB AT62799)
13	T50050	2	PLATE	(FRONT CONNECTOR) (NOT FINISH BORED) (MUST BE LINED BORED AFTER WELDING TO BOOM)
14	U45230	4	SEAL	(SUB FOR T48357) DIRT (BOOM PIVOT BUSHINGS)
15	T82143	4	BUSHING	(SUB FOR T50063, T71548 AND T79442)
16	19H2898	6	Cap Screw	1/2" X 1-1/4"
17	-	2	Part 19	(LIFT CYLINDER TO LIFT ARMS) (AT48747 NO LONGER AVAILABLE) (SUB JD7759 LUBRICATION FITTING, T105151 PIN, T48741 LOCK AND (3) 19H3299 CAPSCREWS)
18	08H4268	2	Cap Screw	1/2" X 7"
19	AT48744	2	PIN FASTENER	(SUB AT58437, THIS APPLICATION)
19	AT58437	2	PIN FASTENER	-
20	U45230	4	SEAL	WIPER (BUCKET PIVOT BUSHINGS)
