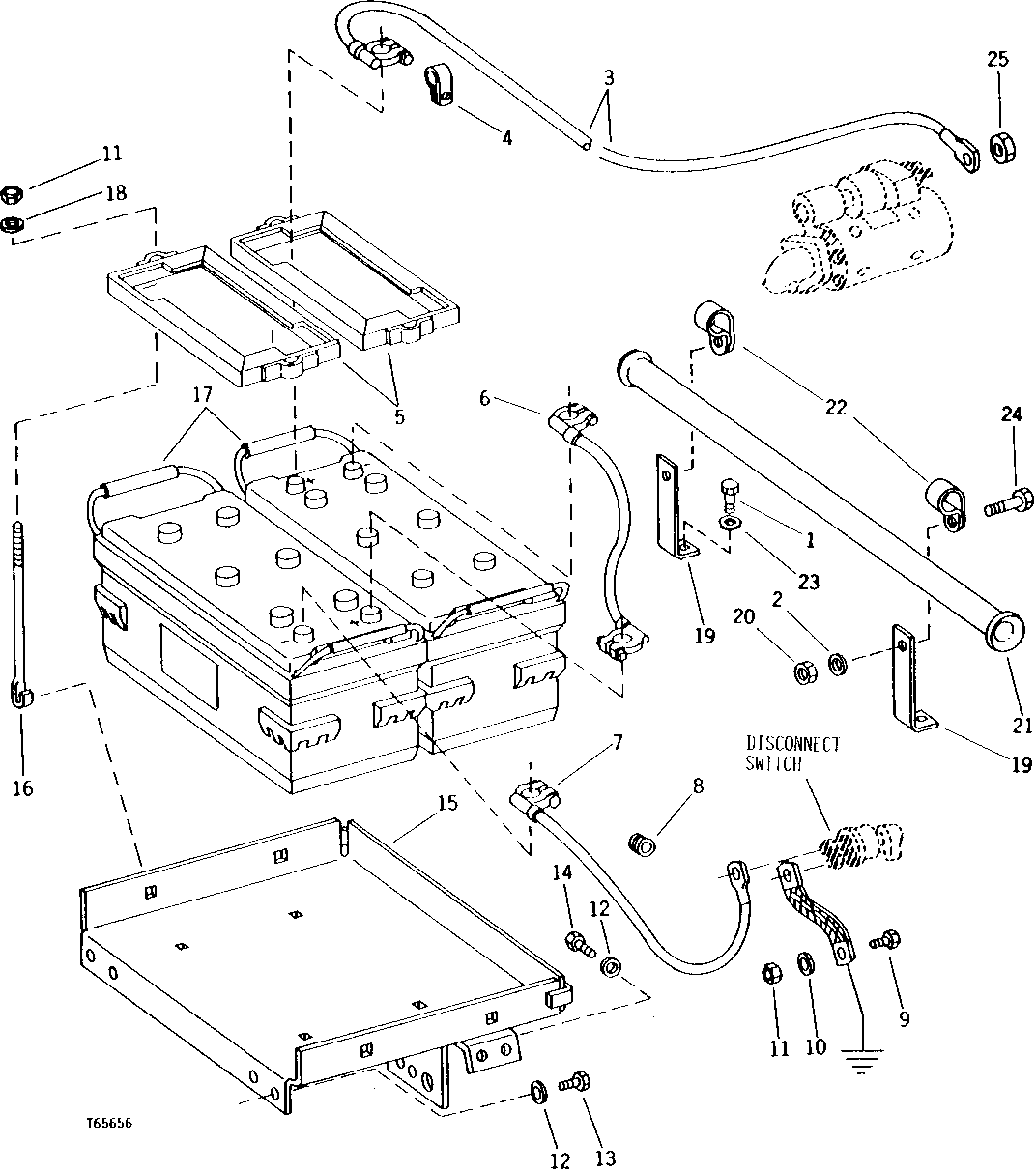

BATTERIES WITH CABLES AND MOUNTING (310-MINUTE RESERVE CAPACITY) [02E01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1648	3	Cap Screw	3/8" X 3/4"
2	24H1305	2	Washer	13/32" X 13/16" X 0.065"
3	AT72173	1	BATTERY CABLE	(SUB FOR AT46395 AND AT72163)
4	T33514	1	Clamp	(SUB FOR R73384) (SUB FOR T14787, THIS APPLICATION)
5	AT59763	2	FRAME	(SUB FOR AT46397, THIS APPLICATION)
6	AT72164	1	BATTERY CABLE	(SUB FOR AT46398)
7	AT14764	1	BATTERY CABLE	-
8	R41439	1	Grommet	-
9	AT46396	1	Ground Cable	-
10	12H304	1	Lock Washer	3/8"
11	14H812	5	NUT	3/8"
12	T21242	8	Washer	-
13	19H3472	4	Cap Screw	5/8" X 9-3/4"
14	19H2898	4	Cap Screw	1/2" X 1-1/4"
15	AT46393	1	SUPPORT	-
16	T47788	4	BOLT	-
17	TY21754	2	DRY CHARGED BATTERY	DRY AND CHARGED, 12-VOLT, 800 COLD CRANKING AMPERES AT 0°F (-18°C), 310-MINUTE RESERVE CAPACITY AT 25 AMPERES, (SUB FOR AU42915 AND TY6105)
18	24H1308	4	Washer	13/32" X 1" X 0.134"
19	U42367	2	Angle	-
20	14H812	2	NUT	3/8"
21	T57133	1	TUBE	-
22	T35699	2	Clamp	-
23	12H304	2	Lock Washer	3/8"
24	19H3239	2	Cap Screw	3/8" X 1-1/4"
25	14H1040	1	Nut	1/2"

BATTERIES WITH CABLES AND MOUNTING (310-MINUTE RESERVE CAPACITY) [02E01]
