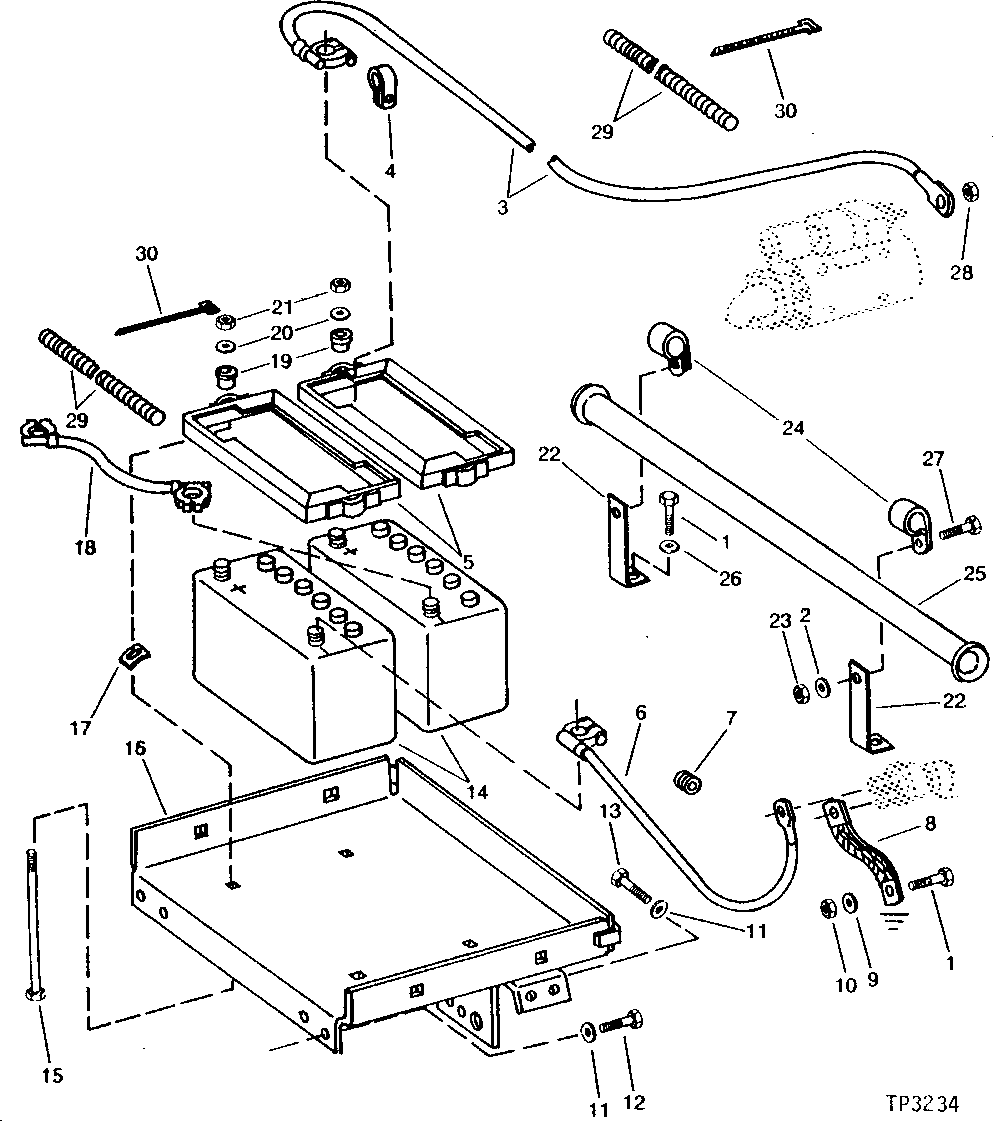

BATTERIES WITH CABLES AND MOUNTING (180-MINUTE RESERVE CAPACITY) [02D23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1648	3	Cap Screw	3/8" X 3/4"
2	24H1305	2	Washer	13/32" X 13/16" X 0.065"
3	AT72173	1	BATTERY CABLE	(SUB FOR AT46395 AND AT72163)
4	T28949	1	Clamp	(SUB FOR R73384) (SUB FOR T14787 AND T33514, THIS APPLICATION)
5	AT11880	2	FRAME	-
6	AT14764	1	BATTERY CABLE	-
7	R41439	1	Grommet	-
8	AT46396	1	Ground Cable	-
9	12H304	1	Lock Washer	3/8"
10	14H812	1	NUT	3/8"
11	T21242	8	Washer	-
12	19H3472	4	Cap Screw	5/8" X 9-3/4"
13	19H2898	4	Cap Screw	1/2" X 1-1/4"
14	AT29160	2	DRY CHARGED BATTERY	DRY AND CHARGED 12-VOLT, 570 COLD CRANKING AMPERES AT (0°F) (-18°C) 180-MINUTE RESERVE CAPACITY AT 25 AMPERES
15	03H2208	4	Bolt	1/4" X 9-1/4", RD. HD., SQ. NECK
16	AT46393	1	SUPPORT	-
17	U44618	1	PUSH NUT	-
18	AT72162	1	BATTERY CABLE	(SUB FOR AT46394)
19	M643T	4	BUSHING	-
20	24H1287	4	Washer	9/32" X 5/8" X 0.065"
21	14H786	4	Nut	1/4"
22	U42367	2	Angle	-
23	14H812	2	NUT	3/8"
24	T35699	2	Clamp	-
25	T57133	1	TUBE	-
26	12H304	2	Lock Washer	3/8"
27	19H3239	2	Cap Screw	3/8" X 1-1/4"
28	14H1040	1	Nut	1/2"
29	-	1	Part 29	CONVOLUTED, 2.081784 MT (6.83 LIN. FT.) LONG (MAKE FROM T72117)
29	-	1	Part 30	CONVOLUTED, 0.33528 MT (1.1 LIN. FT.) LONG (MAKE FROM T72117)
30	R44302	4	Tie Band	-

BATTERIES WITH CABLES AND MOUNTING (180-MINUTE RESERVE CAPACITY) [02D23]
