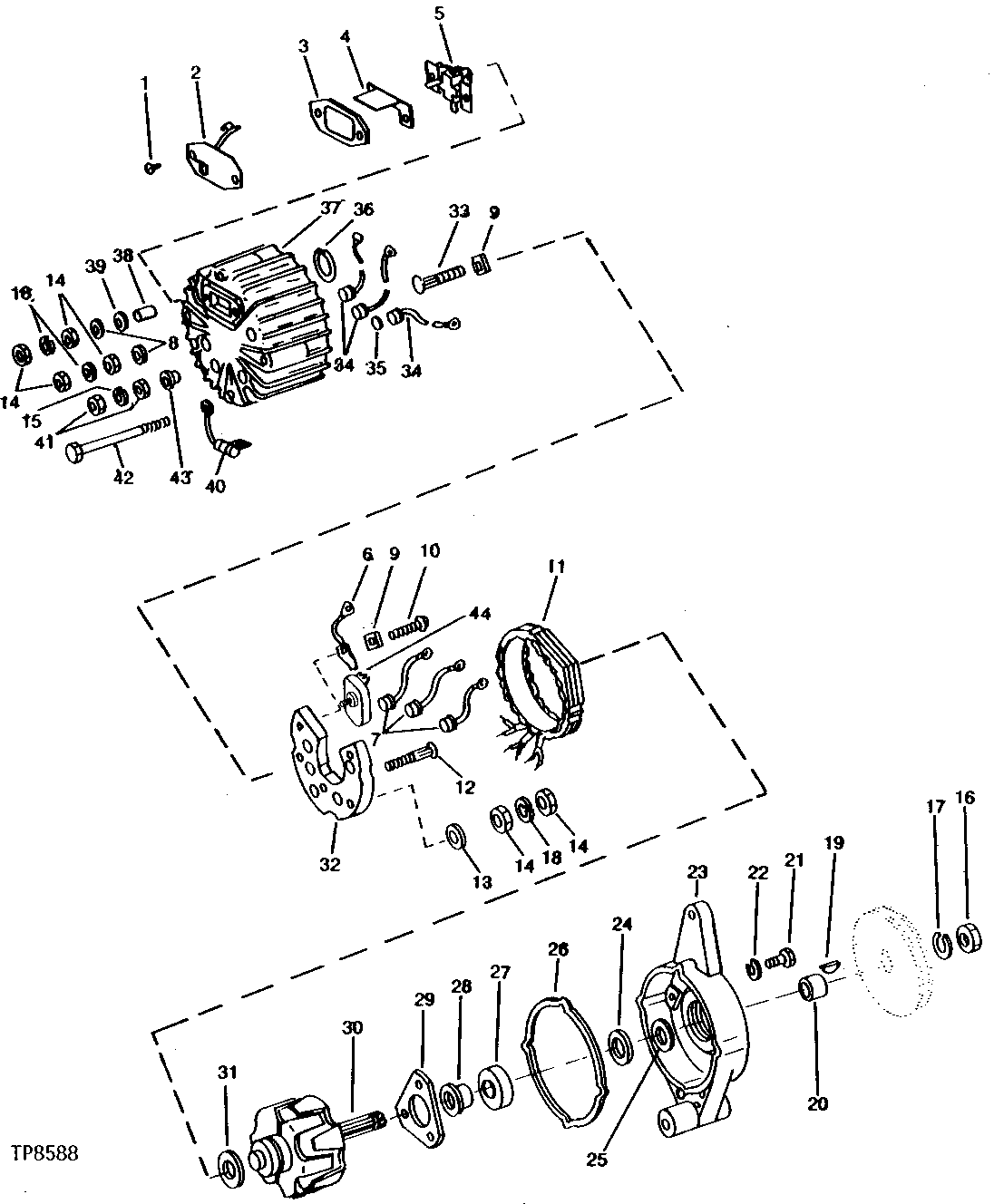

16-AMPERE ALTERNATOR (MOTOROLA NO. 8TA3020C) (WITHOUT CAB) (SERIAL NO. -279535) [02E04]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	37H47	2	SCREW	-
2	-	1	Part 2	BRUSH ( AT52571 USE IF AVAILABLE)
3	-	1	Part 3	BRUSH COVER, ( T25358 NO LONGER AVAILABLE) (SUB T54446 IF AVAILABLE)
4	-	1	Part 4	BRUSH ( T46862 USE IF AVAILABLE)
5	R15026	1	BRUSH	AND HOLDER
6	-	1	Part 6	JUMPER ( AT23186 USE IF AVAILABLE)
7	AT23184	3	DIODE	RECTIFYING, POSITIVE
8	R15036	2	WASHER	INSULATOR
9	-	5	Part 9	( T25350 USE IF AVAILABLE)
10	-	2	Part 10	GROUND AND AUXILIARY TERMINALS ( T25348 USE IF AVAILABLE)
11	-	1	Part 11	( AT52570 USE IF AVAILABLE)
12	-	1	Part 12	OUTPUT TERMINAL ( T25347 USE IF AVAILABLE)
13	R39804	3	WASHER	INSULATOR
14	14H778	10	Nut	0.190"
15	12H302	1	Lock Washer	1/4"
16	14H866	1	Nut	5/8"
17	12H294	1	Lock Washer	5/8"
18	12H246	5	LOCK WASHER	0.190"
19	26H9	1	SHAFT KEY	1/8" X 5/8"
20	R47463	1	SPACER	-
21	21H1299	3	SCREW	0.164" X 3/8"
22	12H315	3	Lock Washer	0.164"
23	T54600	1	HOUSING	(SUB AT23188 BEARING, T58479 RETAINER IF AVAILABLE, T39881 SPACER IF AVAILABLE, T58481 HOUSING IF AVAILABLE, T58482 SEAL, AND T58483 SEAL IF AVAILABLE)
24	T46861	1	WASHER	-
25	-	1	Part 25	( T51143 USE IF AVAILABLE)
26	-	1	Part 26	( T25344 USE IF AVAILABLE)
27	AR50228	1	BALL BEARING	FRONT
28	R47462	1	SLEEVE	SHAFT
29	-	1	Part 29	FRONT BEARING ( T25346 USE IF AVAILABLE)
30	-	1	Part 30	( AT52569 USE IF AVAILABLE)
31	AT23189	1	Ball Bearing	REAR
32	-	1	Part 32	POSITIVE DIODE ( T25352 USE IF AVAILABLE)
33	-	3	Part 33	( T25349 USE IF AVAILABLE)
34	-	3	Part 34	RECTIFYING NEGATIVE ( AT23185 USE IF AVAILABLE)
35	-	3	Part 35	( T25355 USE IF AVAILABLE)
36	R15030	1	O-RING	REAR BEARING
37	-	1	Part 37	REAR ( T46540 USE IF AVAILABLE)
38	-	1	Part 38	INSULATOR ( T25353 USE IF AVAILABLE)
39	-	2	Part 39	INSULATOR ( T25354 USE IF AVAILABLE)
40	-	1	Part 40	( T42349 NO LONGER REQUIRED)
41	14H860	2	Nut	1/4"
42	R15045	4	SCREW	-
43	-	1	Part 43	( T25360 USE IF AVAILABLE)
44	-	1	Part 44	TRIO ( AT49449 USE IF AVAILABLE)
..	AT45526	1	ALTERNATOR	16-AMPERE (SUB TY6608 ALTERNATOR)
..	TY6608	1	ALTERNATOR	(16 AMPERE) (MOTOROLA) (REMANUFACTURED)

16-AMPERE ALTERNATOR (MOTOROLA NO. 8TA3020C) (WITHOUT CAB) (SERIAL NO. -279535) [02E04]
