Transmission Oil Filter / System Pressure Control Block

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL175125	1	Module	-
2	AL156949	1	Thermostatic Control Valve	-
3	L152692	1	Piston	-
4	L152699	1	Compression Spring	-
5	L156238	1	Fitting Plug	-
6	L150867	1	O-Ring	-
7	L171382	1	Gasket	ORDER L224955
7	L224955	1	Gasket	-
8	L207879	1	Housing	ORDER L221769
8	L221769	1	Housing	SUB FOR L210438
9	U42703	1	O-Ring	-
10	L115579	1	Filter Housing	ORDER AL213385
10	AL213385	1	Filter Housing	-
11	AL118321	1	Filter Element	ORDER AL206482
11	AL206482	1	Oil Filter	-
12	AL227983	1	Pressure Switch	(Oil Filter Indicator Light)
12	AL156795	1	Pressure Switch	(Oil Filter Indicator Light) ORDER AL227983
13	T116416	5	O-Ring	-
14	AL156796	3	Switch Kit	(System Pressure Indicator Light) ORDER AL227982
14	AL227982	3	Pressure Switch	(System Pressure Indicator Light)
15	R96703	2	Tie Band	SUB FOR L153144
16	L171262	1	Cover	-
17	L207885	4	Socket Head Screw	-
18	L208140	2	Dowel Pin	-
19	L171387	1	Gasket	ORDER L224956
19	L224956	1	Gasket	-
20	L151342	2	Socket Head Screw	-
21	L207881	2	Socket Head Screw	-
22	L171389	17	Socket Head Screw	-
23	L151343	3	Socket Head Screw	-
24	L218630	1	Clamp	-
25	L207882	1	Socket Head Screw	ORDER T350852
25	T350852	1	Cap Screw	-

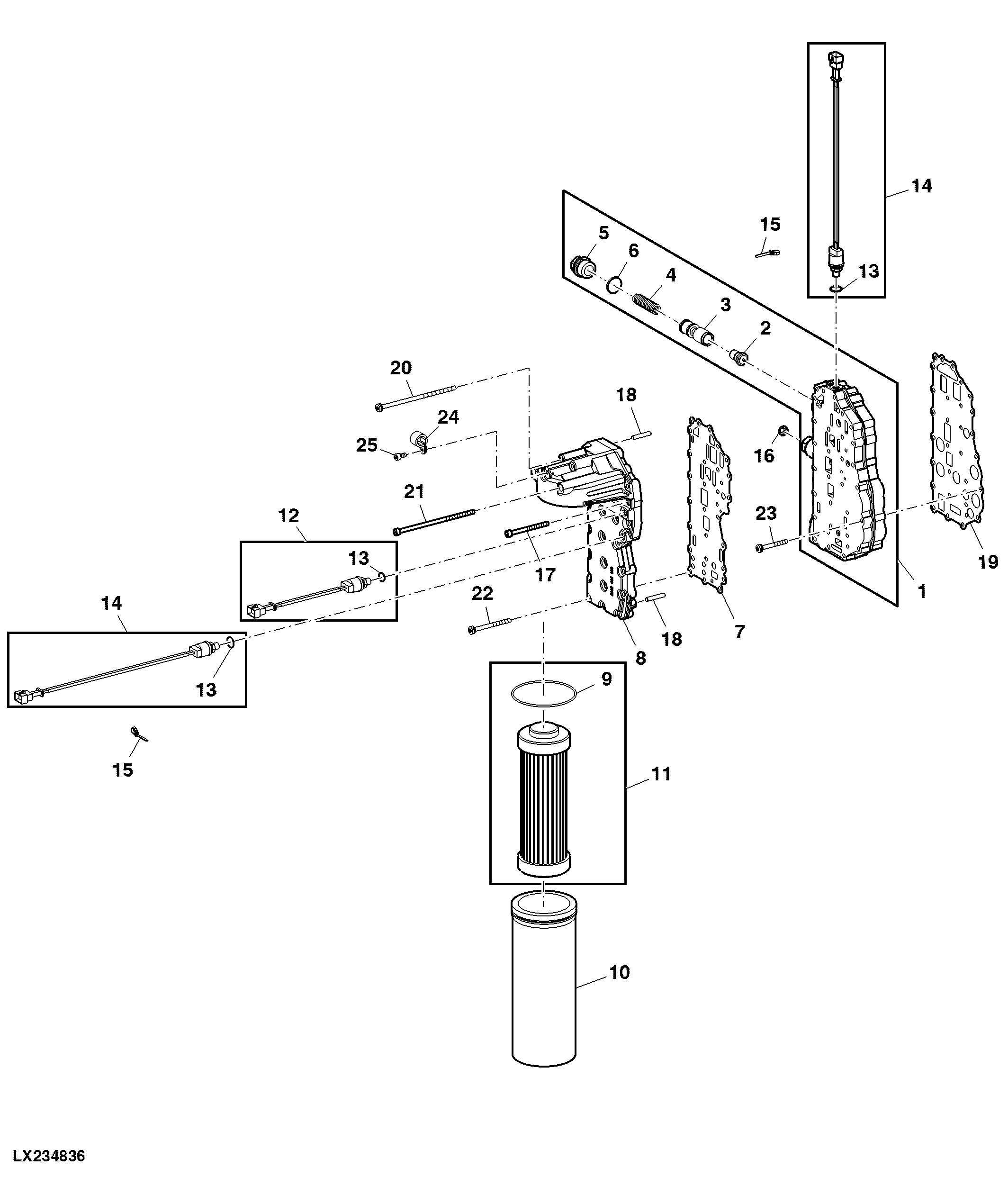

Transmission Oil Filter / System Pressure Control Block
