MECHANICALLY OPERATED SELECTIVE CONTROL VALVE (M-SCV) 200 SERIES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL202023	1	Selective Control Valve	W/O KEY 2
1	AL206029	1	Selective Control Valve	-
1	AL174924	1	Selective Control Valve	ORD AL202023; SUB FOR AL172562
2	L169976	1	Knob	-
3	AL177612	1	Knob	(SUB FOR AL172969)
4	AL178286	1	Detent Kit	(SUB FOR AL172972)
5	AL203572	1	Seal Kit	(SUB FOR AL172963)
6	AL210168	1	Valve Kit	SUB FOR AL172976, AL177614
7	AL203292	1	Seal Kit	(SUB FOR L170240)
8	AL172966	1	Flange Kit	-
9	AL172974	1	Fitting Plug	-
10	AL172967	1	Valve Kit	-
11	AL172964	1	Seal Kit	ORDER AL207509
11	AL207509	1	Seal Kit	-
12	L170555	1	Plug	MARKED I
13	L170556	1	Plug	MARKED II
14	L170557	1	Plug	MARKED III
15	L102157	1	Plug	MARKED IV
..	AL170400	1	Selective Control Valve	(INCLUDES 1 M-SCV 200 SERIES AND 2 QUICK DISCONNECT COUPLERS DELUXE) (INCLUDES LEAK-OFF-OIL PARTS) FI,CNLA,(ORD AL204102)
..	AL204102	1	Selective Control Valve	(INCLUDES 1 M-SCV 200 SERIES AND 2 QUICK DISCONNECT COUPLERS DELUXE) (INCLUDES LEAK-OFF-OIL PARTS) FI,(INCL KEYS 2-11,AL202023)
..	AL207609	1	Selective Control Valve	(INCLUDES 1 M-SCV 200 SERIES AND 2 QUICK DISCONNECT COUPLERS DELUXE) (INCLUDES LEAK-OFF-OIL PARTS) FI

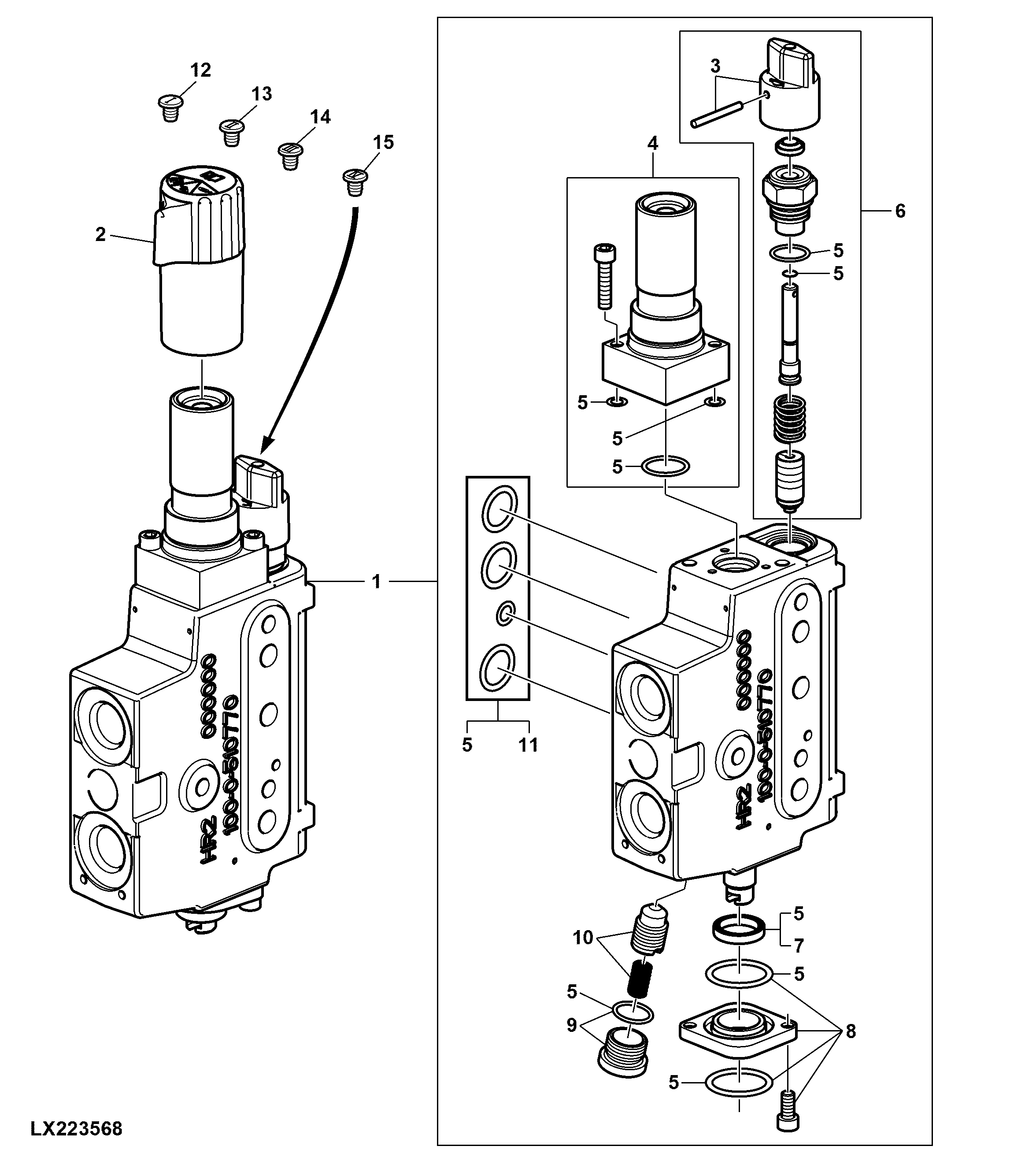

MECHANICALLY OPERATED SELECTIVE CONTROL VALVE (M-SCV) 200 SERIES

Нет текстового описания
