Открытый узел

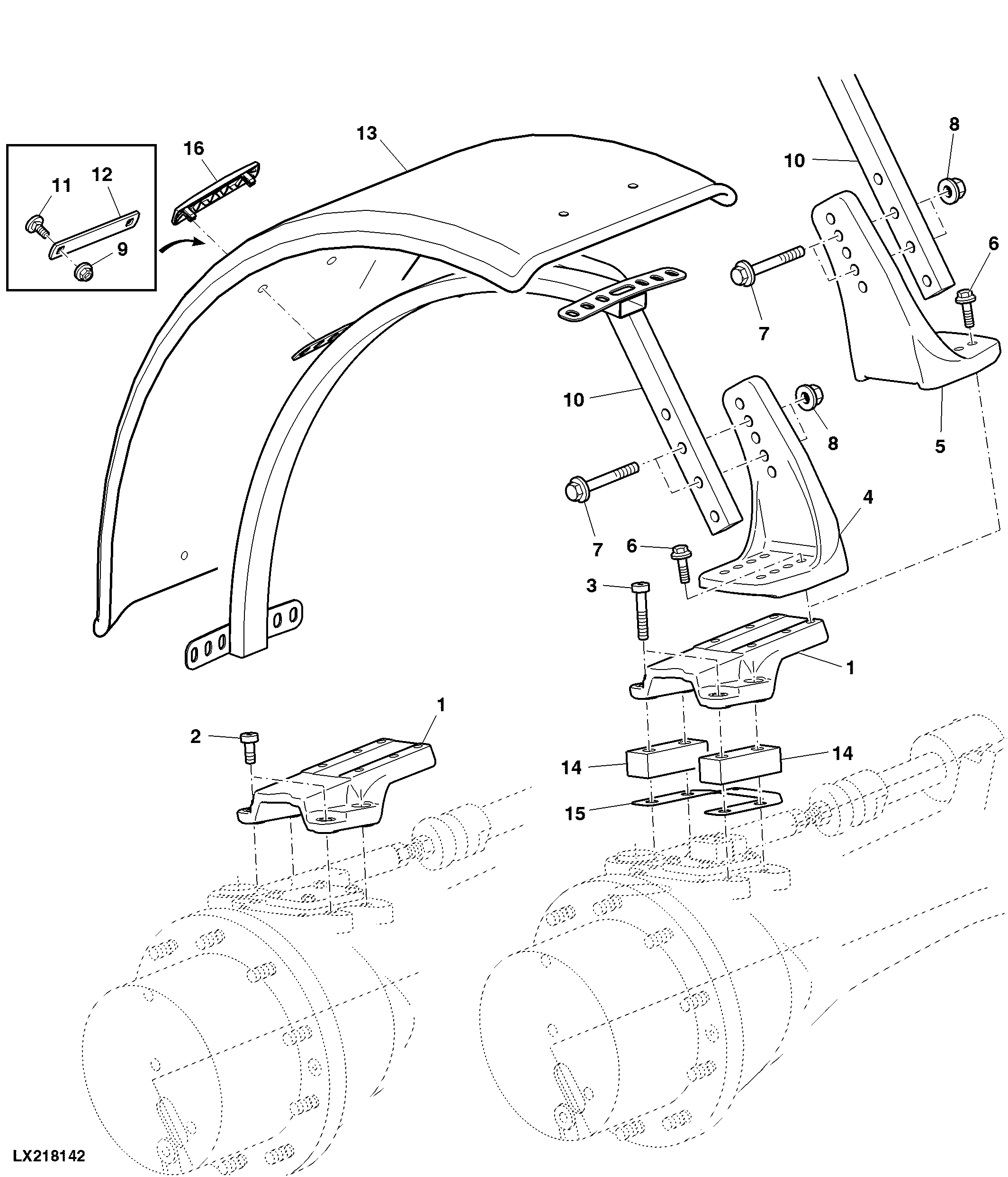

FRONT FENDERS (MFWD, WIDTH 540, 620MM)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L216249	2	Base	SUB FOR L165957
2	19M8653	8	Screw	M16 X 35, (10.9)
3	19M9358	4	Screw	M16 X 60, WITH AUTO TRAC
4	L157935	1	Bracket	(W/ Fender Mounted Inside) RH, (MARKED L157935)
4	L157934	1	Bracket	(W/ Fender Mounted Inside) LH, (MARKED L157934)
5	L157934	1	Bracket	(W/ Fender Mounted Outside) RH, (MARKED L157934)
5	L157935	1	Bracket	(W/ Fender Mounted Outside) LH, (MARKED L157935)
6	19M7791	4	Bolt	M12 X 40, (10.9)
7	19M7816	4	Screw	M12 X 65
8	14M7299	4	Flange Nut	M12
9	14M7296	12	Flange Nut	M10, USE WITH AL206800, AL206803, AL206805, AL206804
10	AL211802	1	Support	540/620 mm, LH, ALSO ORDER (6) AL210199
10	AL206805	1	Support	540/620 mm, LH, ORDER AL211802, ALSO ORDER (12) 14M7296, (6) L158319, (12) 03M7264
10	AL175263	1	Support	540/620 mm, LH, ORDER AL206805
10	AL211801	1	Support	540/620 mm, RH, ALSO ORDER (6) AL210199
10	AL206800	1	Support	370/420/480 mm, LH, ORDER AL211798, ALSO ORDER (12) 14M7296, (6) L158319, (12) 03M7264
10	AL206804	1	Support	540/620 mm, RH, ORDER AL211801, ALSO ORDER (12) 14M7296, (6) L158319, (12) 03M7264
10	AL175262	1	Support	540/620 mm, RH, ORDER AL206804
10	AL211798	1	Support	370/420/480 mm, LH, ALSO ORDER (6) AL210199
10	AL164884	1	Support	370/420/480 mm, LH, ORDER AL206800
10	AL211799	1	Support	370/420/480 mm, RH, ALSO ORDER (6) AL210199
10	AL206803	1	Support	370/420/480 mm, RH, ORDER AL211799, ALSO ORDER (12) 14M7296, (6) L158319, (12) 03M7264
10	AL164877	1	Support	370/420/480 mm, RH, ORDER AL206803
11	03M7264	12	Bolt	M10 X 25, USE WITH AL206800, AL206803, AL206805, AL206804
12	L158319	6	Strap	USE WITH AL206800, AL206803, AL206805, AL206804
13	AL180325	2	Fender	540MM
13	AL180332	2	Fender	620MM
14	L158780	2	Strap	WITH AUTO TRAC
15	L158349	1	Plate	WITH AUTO TRAC
16	AL210199	6	Mounting Parts	USE WITH AL211798, AL211799, AL211802, AL211801

FRONT FENDERS (MFWD, WIDTH 540, 620MM)
