Открытый узел

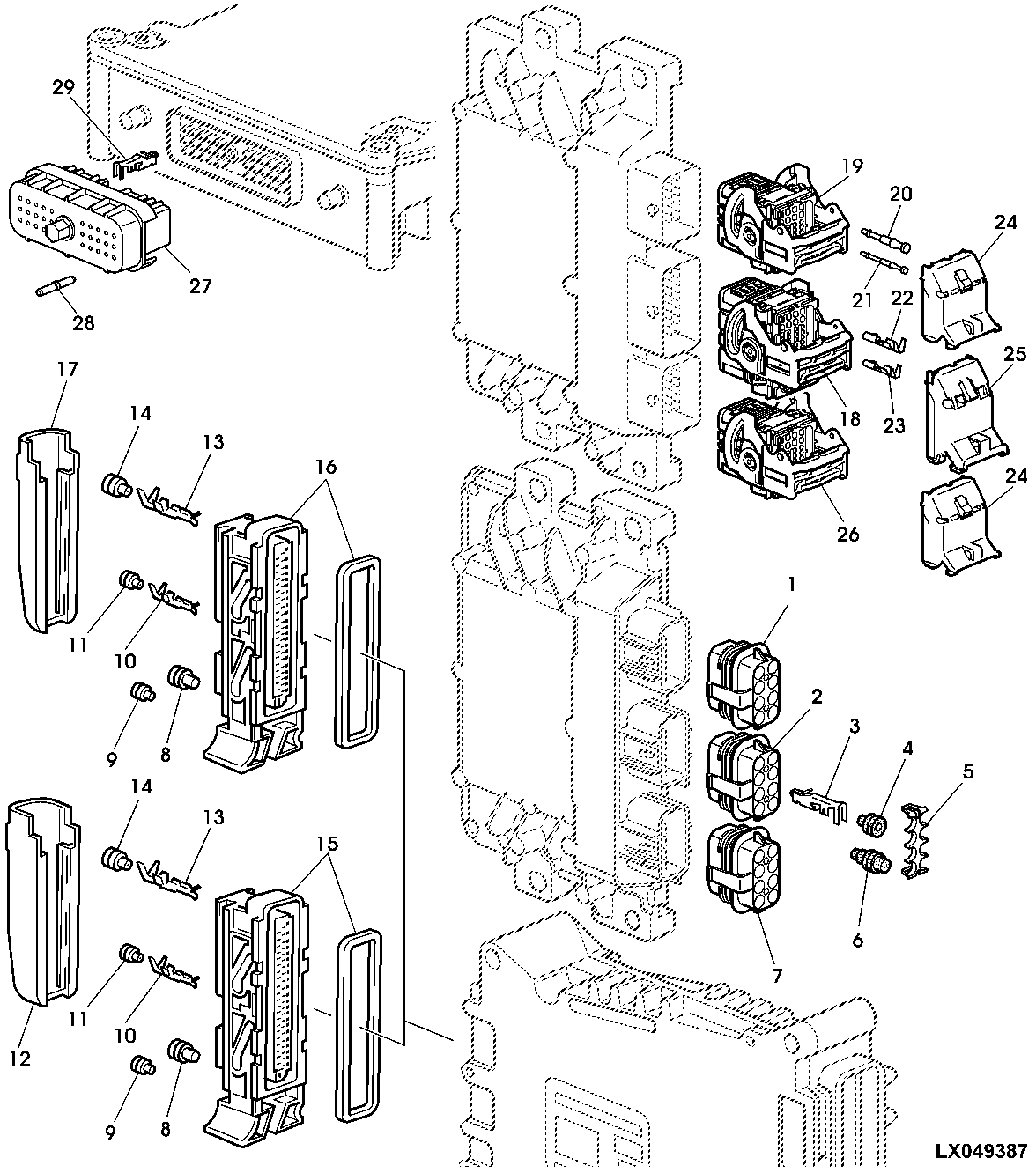

CONNECTOR FOR ELECTRONIC CONTROL UNITS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8723	1	Elec. Connector Housing	(Blue)
2	57M8724	1	Elec. Connector Housing	(Black)
2	57M8984	1	Elec. Connector Housing	(Gray)
3	57M7297	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) 0.5-0.8MM² / 2.7MM
3	57M7298	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) 1- 2.5MM² / 2.7MM
3	57M7299	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) 3-4MM² / 2.7MM
4	57M7378	1	Electrical Connector Assy	-
4	57M7368	1	Elec. Connector Cable Seal	-
4	R78062	1	Elec. Connector Seal	-
4	R78063	1	Elec. Connector Seal	-
5	57M9083	1	Elec. Connector Accessory	-
6	R78064	1	Elec. Connector Cavity Plug	-
7	57M8722	1	Elec. Connector Housing	(Green)
8	57M7401	1	Elec. Connector Cavity Plug	-
9	57M7403	1	Elec. Connector Cavity Plug	-
10	57M7398	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) 0.5-1MM² / 1.6MM
11	57M7402	1	Elec. Connector Cable Seal	(Gray)
12	57M7964	1	Elec. Connector Terminal	-
13	57M7394	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) 1.5-2.5MM² / 2.8MM
13	57M7393	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) 0.5-1MM² / 2.8MM
14	57M7399	1	Elec. Connector Seal	(White)
15	57M7927	1	Electrical Connector Assy	(68-PIN PLUG)
16	57M7396	1	Elec. Connector Housing	(45-PIN PLUG)
17	57M7964	1	Elec. Connector Terminal	-
18	57M8527	1	Elec. Connector Housing	(Brown) NLA; ORDER 57M10615
18	57M10615	1	Elec. Connector Housing	(Brown)
19	57M8519	1	Elec. Connector Housing	(Black) NLA; ORDER 57M10609
19	57M10609	1	Elec. Connector Housing	(Black)
20	57M8533	1	Elec. Connector Seal	-
21	57M8532	1	Elec. Connector Seal	-
22	57M8531	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) 0.6-1MM² / 1.5MM
23	57M8530	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) 0.35-0.6MM² / 0.6MM
24	57M8528	2	Electrical Connector Cap	-
25	57M8529	1	Electrical Connector Cap	-
26	57M8520	1	Elec. Connector Housing	(Gray) NLA; ORDER 57M10607
26	57M10607	1	Elec. Connector Housing	(Gray)
27	57M7253	1	Elec. Connector Housing	-
28	57M7741	1	Elec. Connector Terminal	-
29	R104701	1	Elec. Connector Terminal	(WIRE GAUGE/CONNECTOR WIDTH) 0.5-1MM² / 1.5MM

CONNECTOR FOR ELECTRONIC CONTROL UNITS
